Video/Audio Output
|
Description
|
|
HDMI Output
|
FB-HD04-B-NB: HDMI1 & HDMI2:
4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920×1080 /60Hz, 1920×1080 /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI3 & HDMI4: 1920×1080 /60Hz, 1920×1080 /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz FB-HD07-B-NB: HDMI1 & HDMI2 & HDMI3 & HDMI4:
4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920×1080 /60Hz, 1920×1080 /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI5 & HDMI6 & HDMI7: 1920×1080 /60Hz, 1920×1080 /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
|
Decoding
|
Description
|
|
Decoding Capability
|
FB-HD04-B-NB: HDMI1 & HDMI2 & HDMI3 & HDMI4:
4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 128 x D1 FB-HD07-B-NB: HDMI1 & HDMI3 & HDMI5 & HDMI7:
4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 128 x D1 HDMI2 & HDMI4 & HDMI6: 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 128 x D1 |
|
Decoding
|
Description
|
|
Multi-window
|
1/4/5/6/7/8/9/16
|
|
Working Environment
|
Description
|
|
Working Temperature
|
-10°C ~ + 55°C (14°F to +131°F)
|
|
Working Humidity
|
10% ~ 90% (non-condensing)
|
|
Weight
|
Description
|
|
Weight
|
<1 Kg (2.2 lb)
|

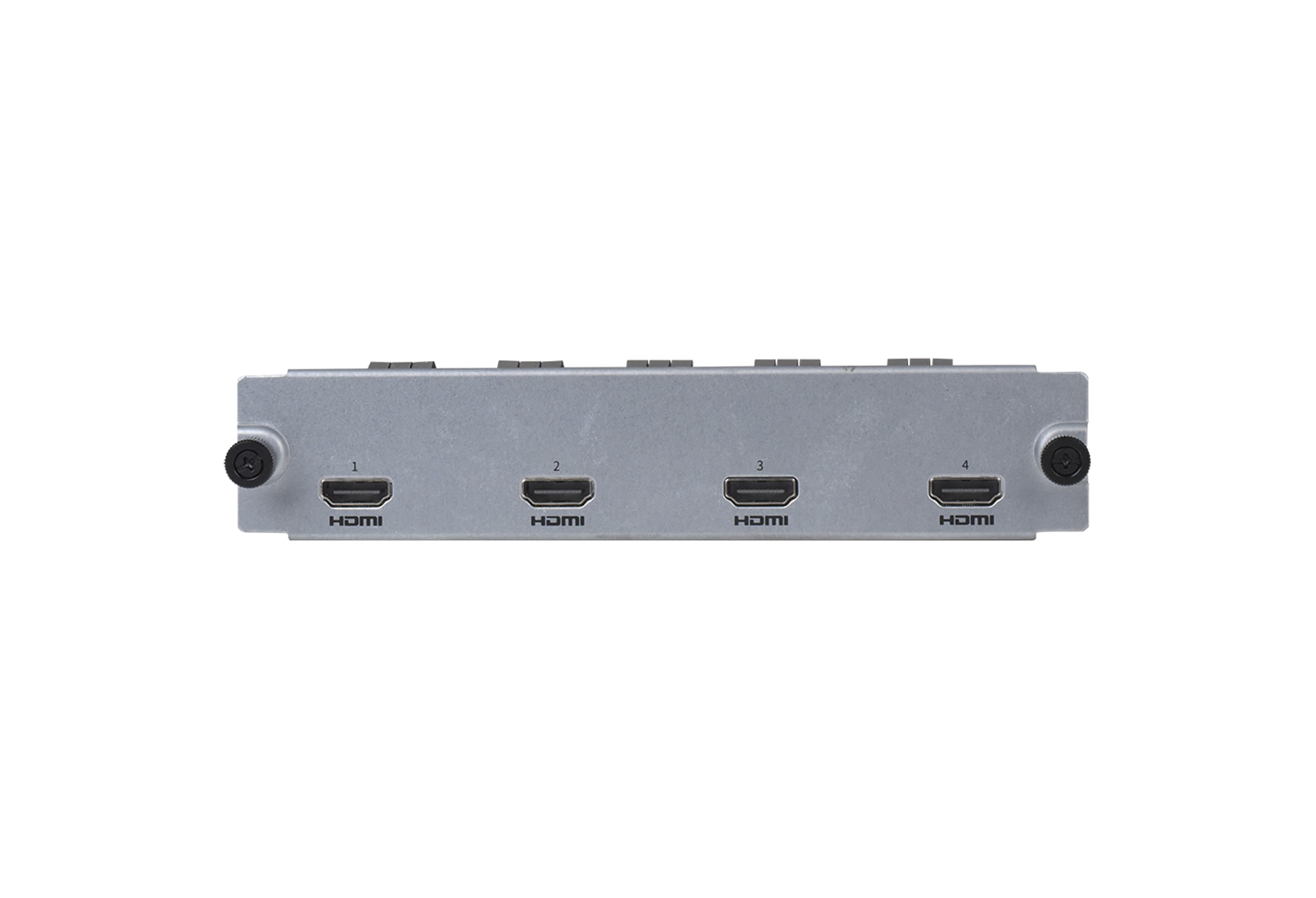

FB-HD04-B-NB
4-Channel HDMI Output Decoder Card
- Support 4-ch HDMI
- HDMI at up to 4K(3840×2160) resolution
- All HDMI independent outputs provided
- Support H.265/H.264 video formats
- Up to 16 Megapixels resolution recording
Description
