Camera |
Description |
|
Resolution
|
8MP
|
|
Sensor
|
1/2.7’CMOS
|
|
Min. Illumination
|
Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR on |
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Adjustment angle
|
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
|
|
S/N
|
>52dB
|
|
WDR
|
120dB
|
|
Lens |
Description |
|
Lens type
|
1.6mm
|
|
Iris Type
|
Fixed
|
|
Iris
|
F2.0
|
|
Field of View (H)
|
180°
|
|
Field of View (V)
|
100°
|
|
Field of View (D)
|
180°
|
|
Zoom
|
Fixed
|
|
DORI |
Description |
|
DORI Distance（Lens）
|
1.68mm
|
|
DORI Distance（Detect）
|
37.8(124.0ft)
|
|
DORI Distance（Observe）
|
15.1(49.6ft)
|
|
DORI Distance（Recognize）
|
7.6(24.8ft)
|
|
DORI Distance（Identify）
|
3.8(12.4ft)
|
|
Illuminator |
Description |
|
Illumination Distance(IR)
|
20m
|
|
IR On/Off Control
|
Auto/Manual
|
|
Wavelength
|
850nm
|
|
Video |
Description |
|
Video Compression
|
Ultra 265; H.265; H.264; MJPEG
|
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|
Frame Rate
|
Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
U-code
|
Support
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 8 areas
|
|
Video stream
|
Triple streams
|
|
Image |
Description |
|
Auto Scene Match (ASM)
|
Support（Only WDR）
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Flip Vertical/Flip Horizontal/180°
|
|
Dewarping
|
Support
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Defog
|
Digital Defog
|
|
Image stabilization
|
N/A
|
|
Low illumination characteristics
|
Low-light
|
|
Intelligent |
Description |
|
Smart intrusion prevention
|
Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
|
|
Events |
Description |
|
Basic Detection
|
Motion detection; Ultra motion detection; Tampering alarm; Audio detection
|
|
General Function
|
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
|
|
Audio |
Description |
|
Audio Compression
|
G.711U; G.711A
|
|
Audio Bitrate
|
64 Kbps
|
|
Two-way Audio
|
N/A
|
|
Suppression
|
Support
|
|
Sampling Rate
|
8KHZ
|
|
Storage |
Description |
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR; NAS(NFS)
|
|
Network |
Description |
|
Protocols
|
IPv4; IPv6; IGMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T); API; SDK
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator, common user and operator
|
|
Security
|
Password protection;
Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
|
Client
|
EZView; EZLive; EZStation
|
|
Web Browser
|
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
|
Interface |
Description |
|
Audio I/O
|
N/A
|
|
Alarm I/O
|
N/A
|
|
Serial Port
|
N/A
|
|
Built-in Mic
|
Support
|
|
Built-in Speaker
|
N/A
|
|
WIFI
|
N/A
|
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
N/A
|
|
Certification |
Description |
|
EMC
|
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B) |
|
Safety
|
CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment
|
CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU);
|
|
Protection
|
IP67 (IEC 60529)
|
|
General |
Description |
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W |
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
Dimensions
|
198× 71 × 71mm (7.8” × 2.8” × 2.8”)
|
|
Weight
|
0.42kg (0.93lb)
|
|
Material
|
Metal
|
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Storage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge protection
|
4KV
|
|
Reset button
|
Support
|
|
Web Client Language
|
20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
New
IPC2108SB-ADF16KM-I0

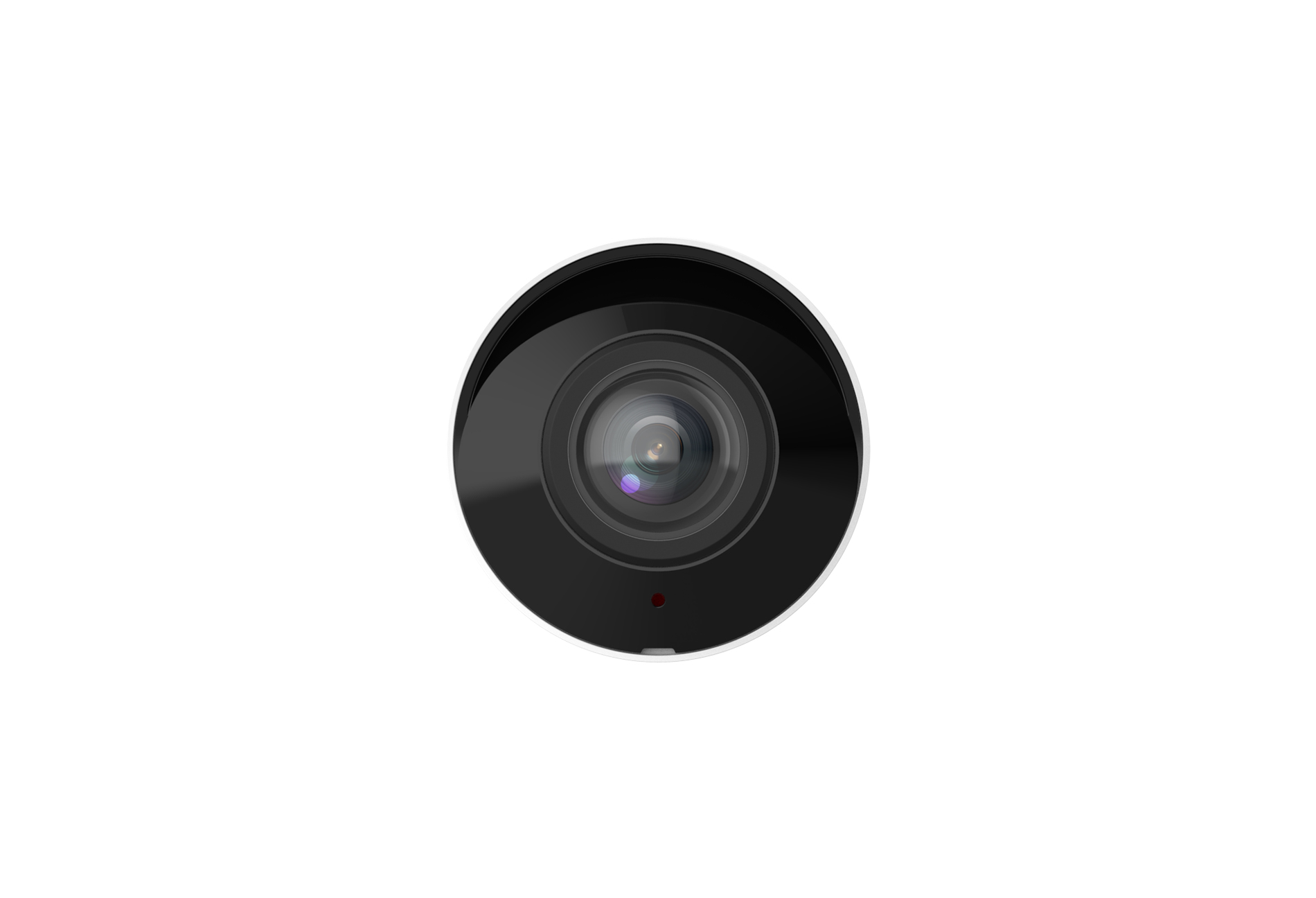

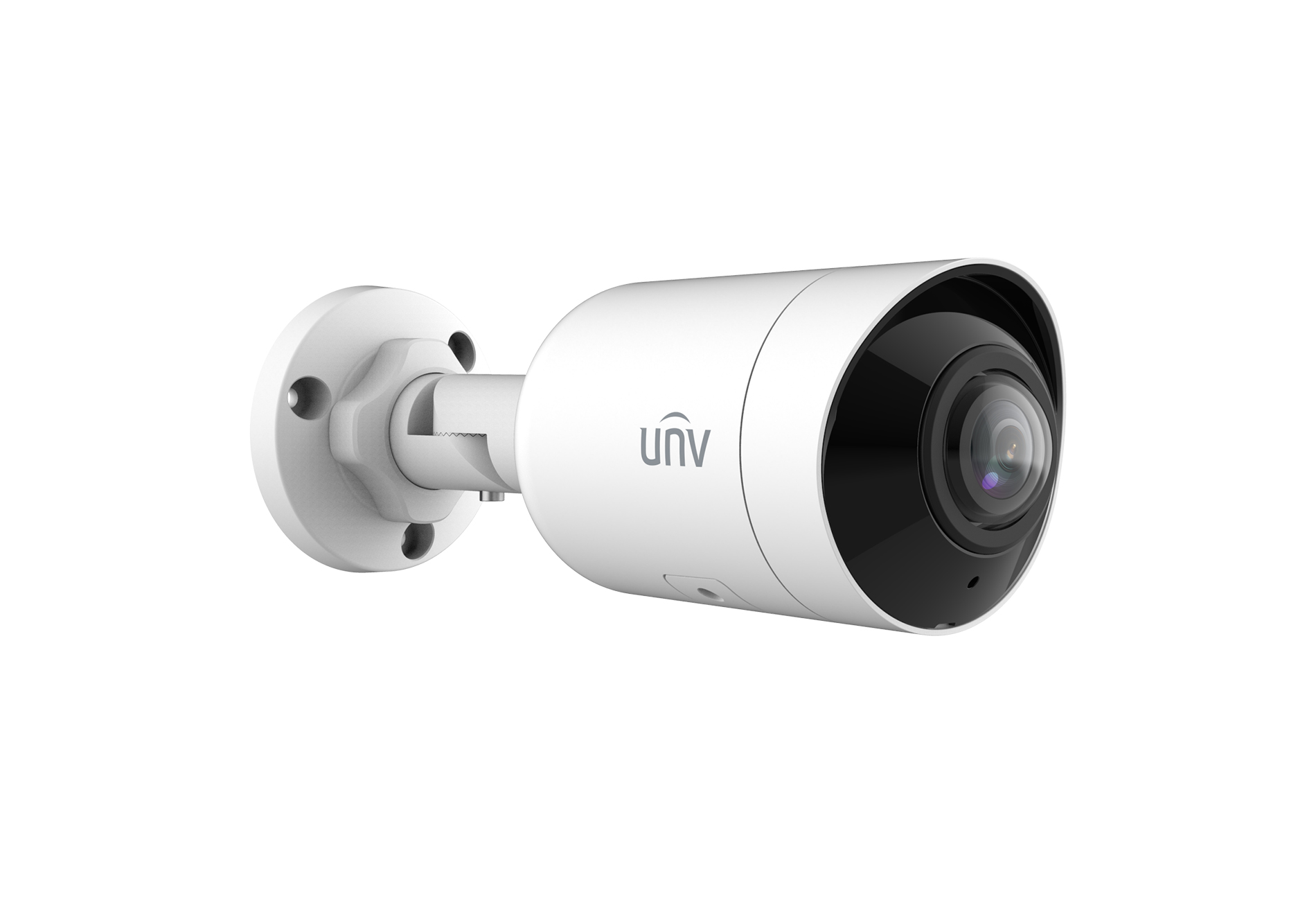

8MP LightHunter Wide Angle IR Fixed Bullet Network Camera
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (3840*2160) @30/25fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps;
- Wide Angle technology realize the horizontal viewing angle of 180°
- The dewarp level can be configured in the range of 1-9
- Ultra 265,H.264,H.265, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non motor vehicle
- 120dB true WDR technology enables clear image in strong light scene
- Built-in Mic
- Smart IR, up to 20m (66ft) IR distance
- Supports 256 GB Micro SD card
- DC12V or PoE(IEEE 802.3af) power supply
- IP67 protection
