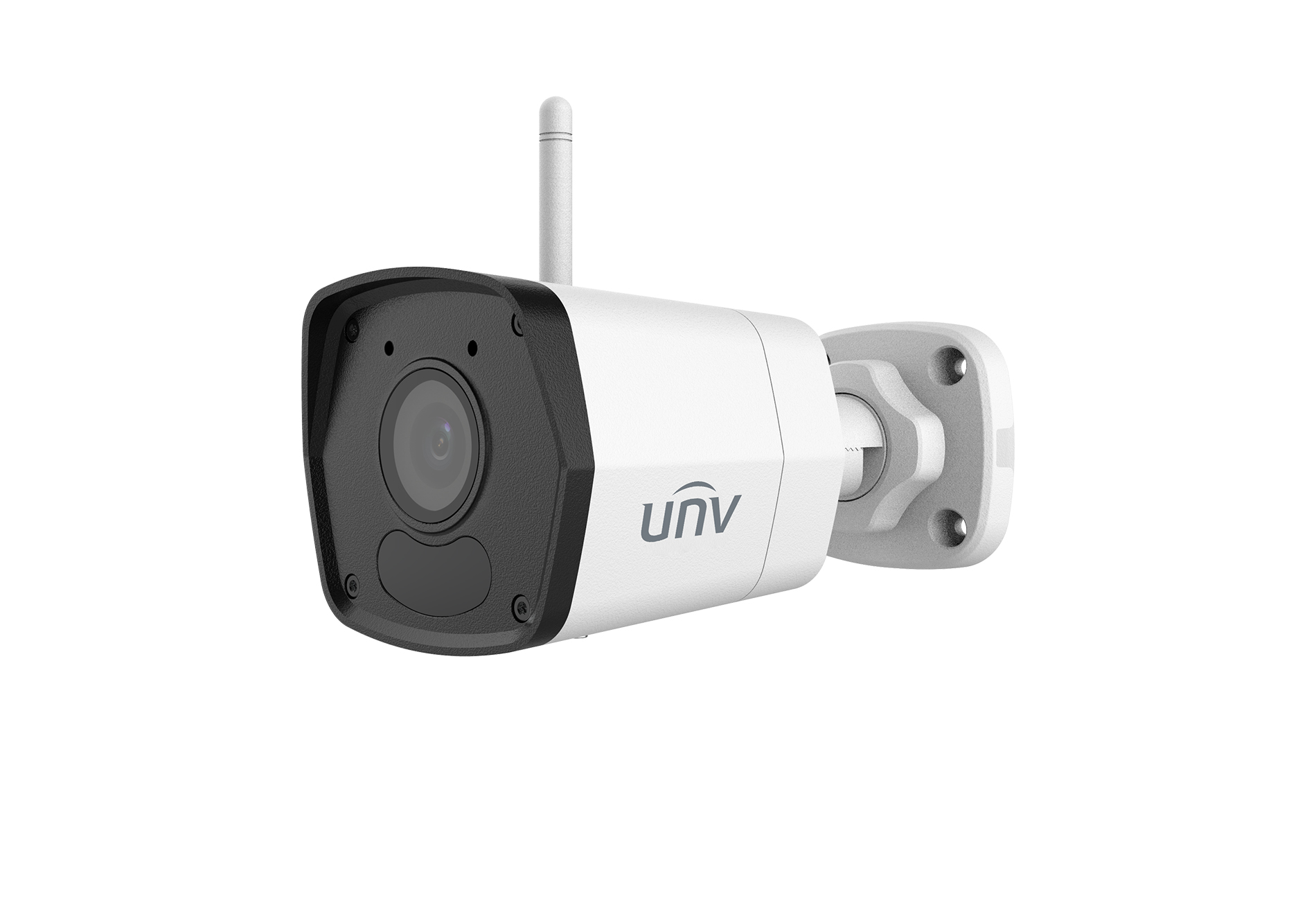

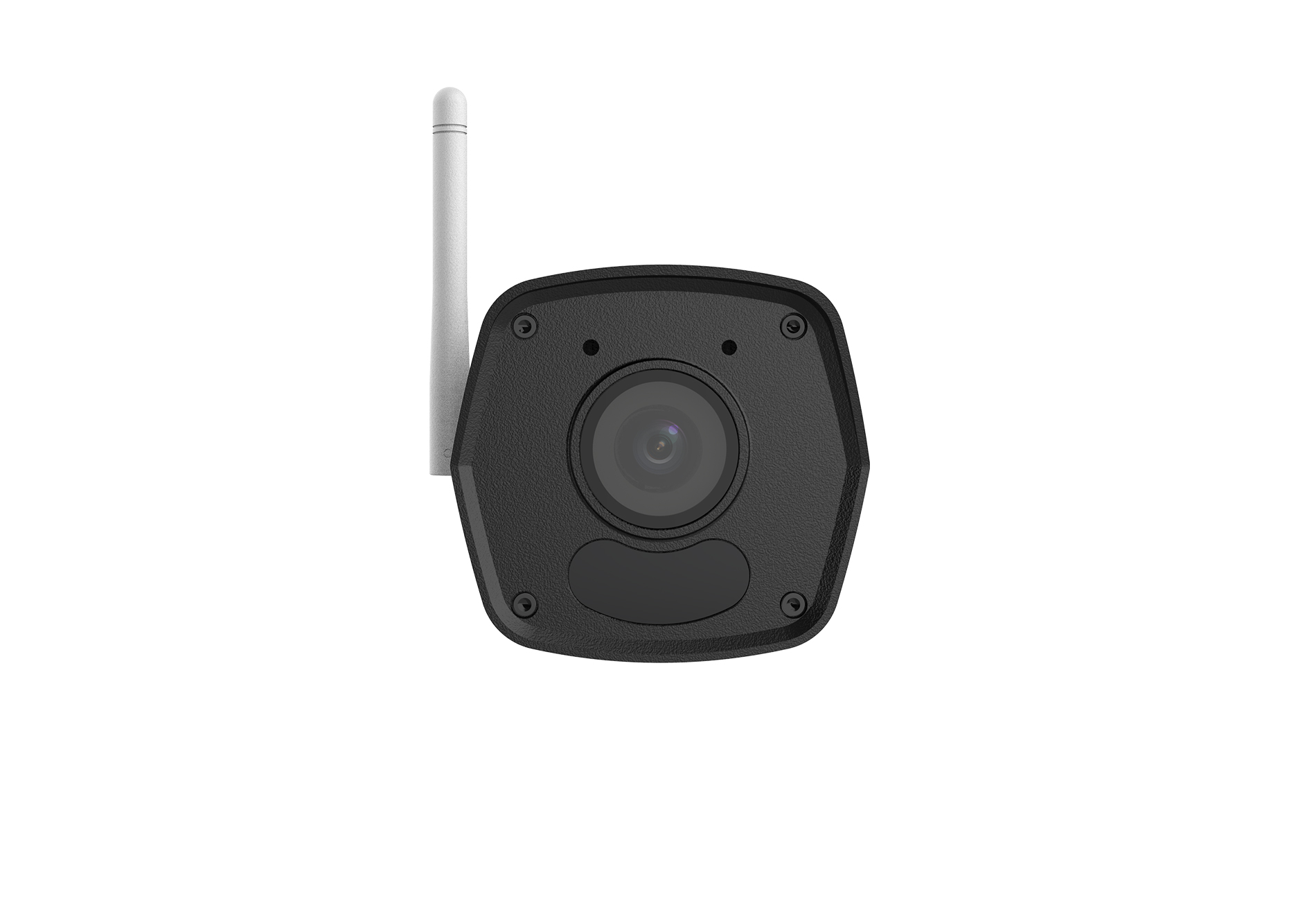

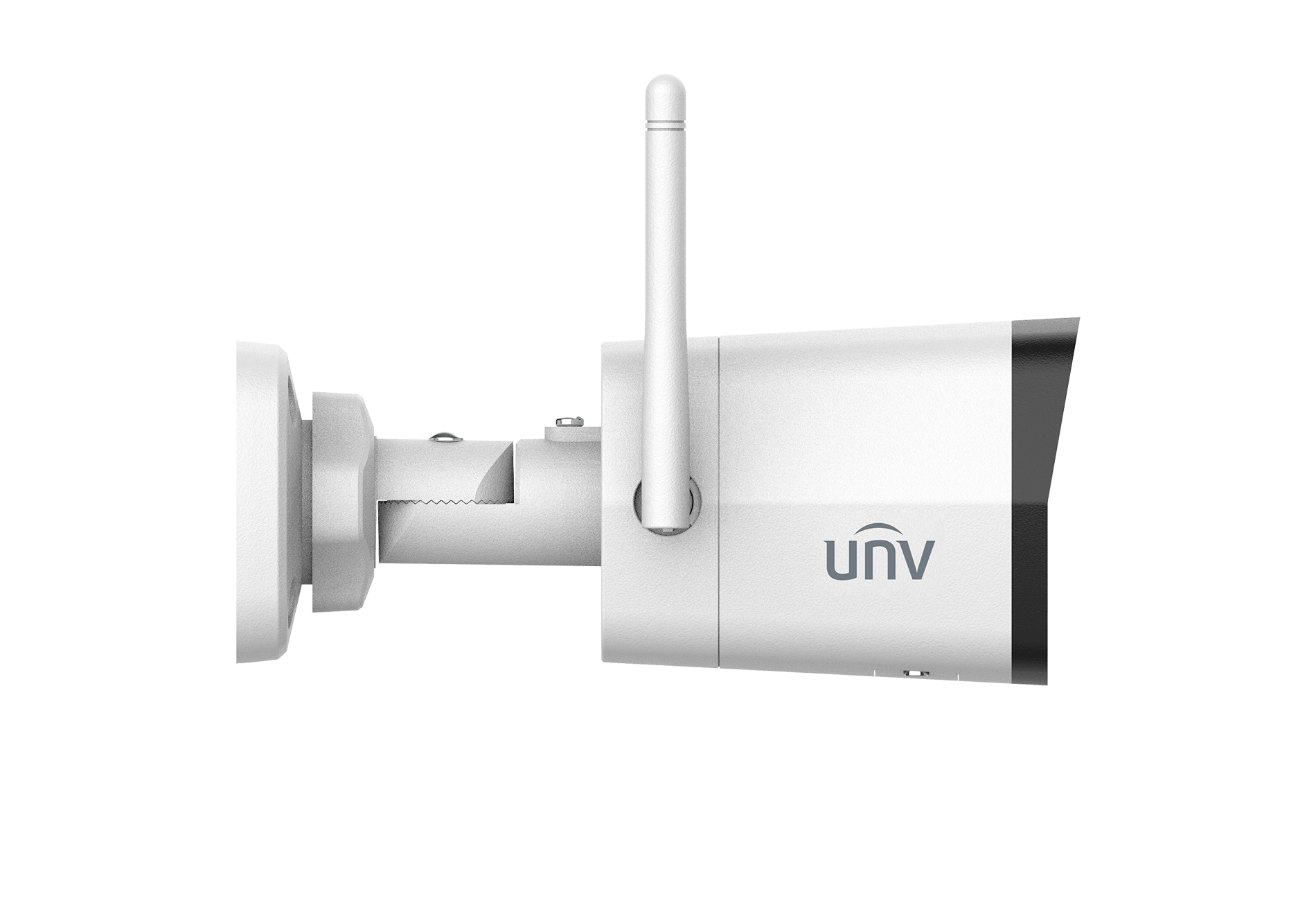

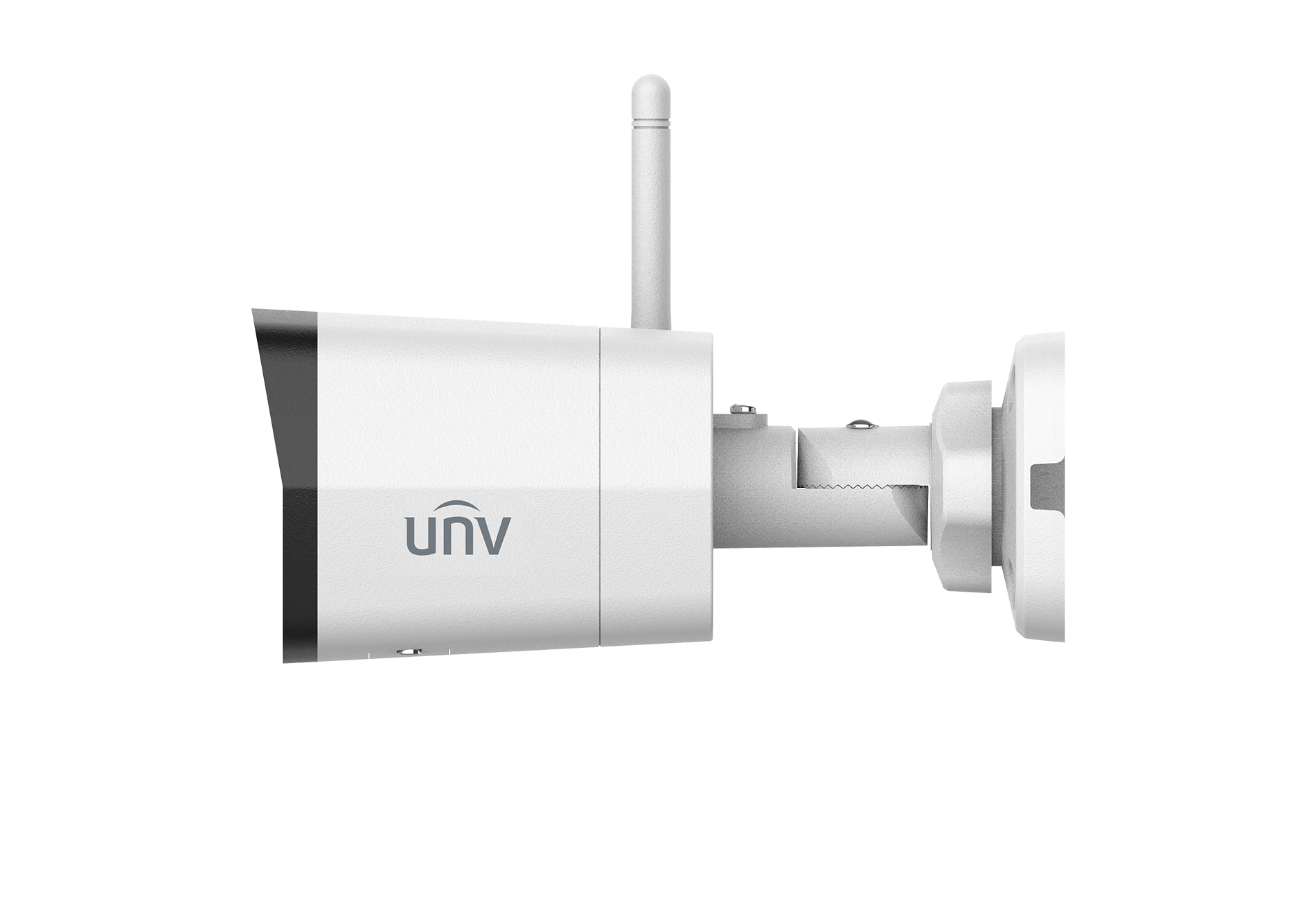

IPC2122LB-AF40WK-G

2MP HD WIFI Bullet Network Camera

  • High quality image with 2MP, 1/2.9″CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • 3-Axis
icon
Built in Mic
Edge Storage
HLC
IP67
Smart IR
Ultra H265
WiFi Connection
SKU: 0235C60B Categories: , ,
Description
  IPC2122LB-AF28WK-G IPC2122LB-AF40WK-G
Camera
Sensor 1/2.9″, 2.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.01 Lux (F2.0 AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1~1/100000 s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N >52dB
WDR DWDR
Lens
Lens Type 2.8mm and 4.0mm @2.0, Fixed-focal
Lens Mount M12
Angle of view(H) 101.1° 83.7°
Angle of View (V) 55.0° 44.6°
Angle of View (O) 111.0° 89.1°
DORI
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 45.0 18.0 9.0 4.5
4.0mm 64.3 25.7 12.9 6.4
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Wireless Range Up to 130 m (The performance varies based on actual environment)
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security 64/128-bit WEP,  WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps (Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certification
EMC FCC: FCC Part 15
Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
Power DC 12V±25%
Power consumption: Max 4.0 W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 172 × 76 ×72 mm (6.8” × 3” × 2.8”)
Weight 0.25 kg (0.55 lb)
Material Graphene + Plastic
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Reset Button Supported
Ingress Protection Ingression protection: IP67
