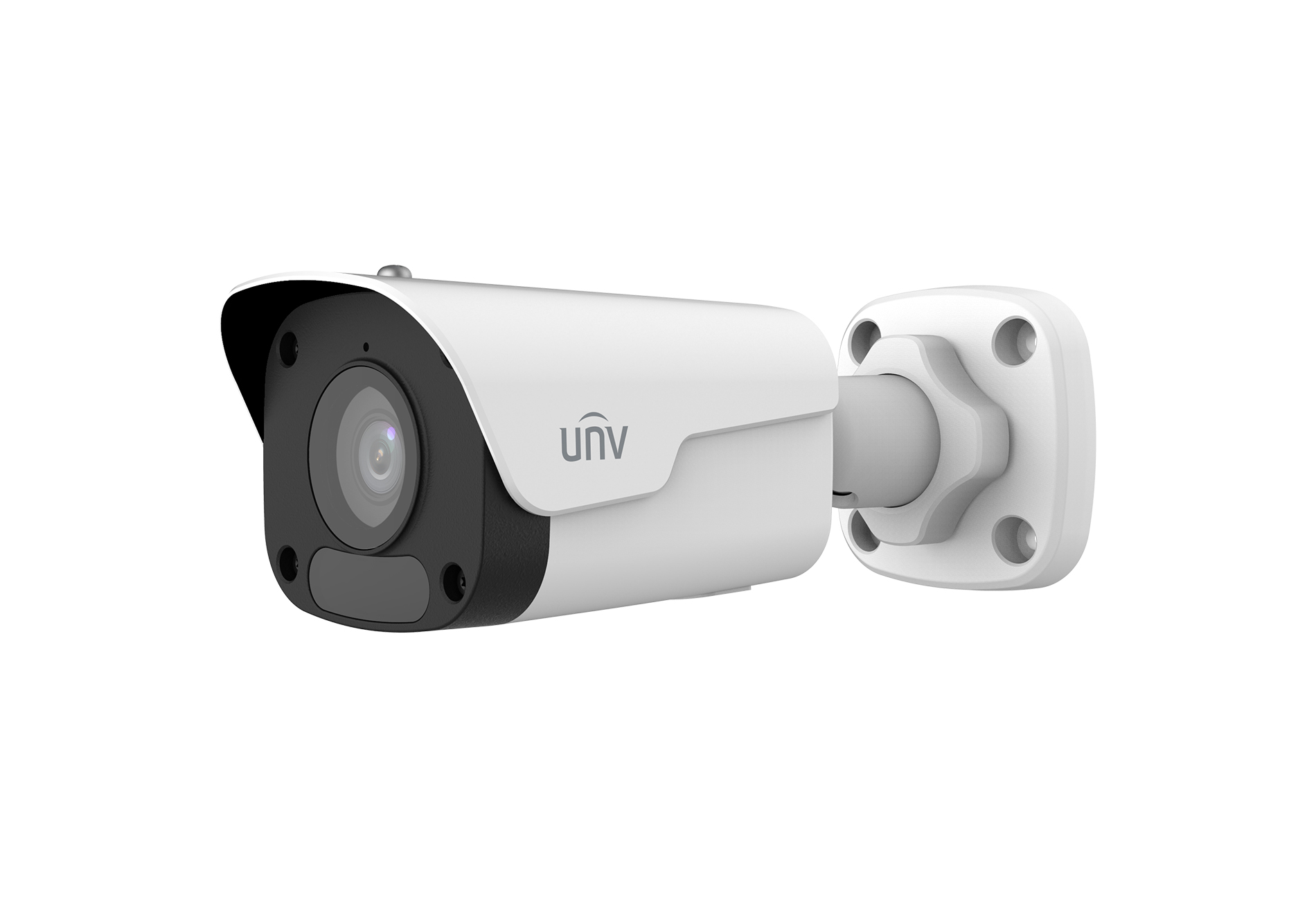

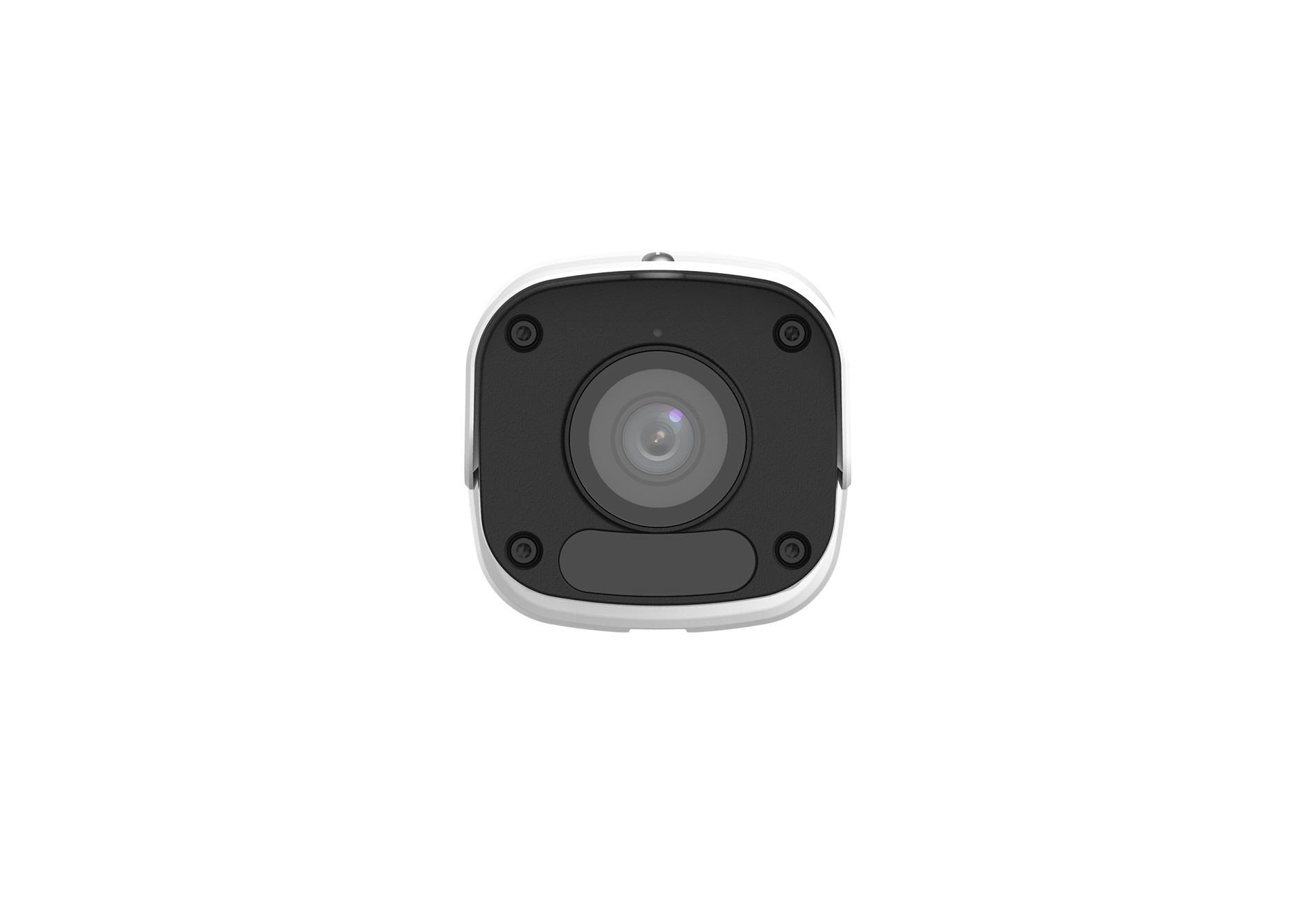

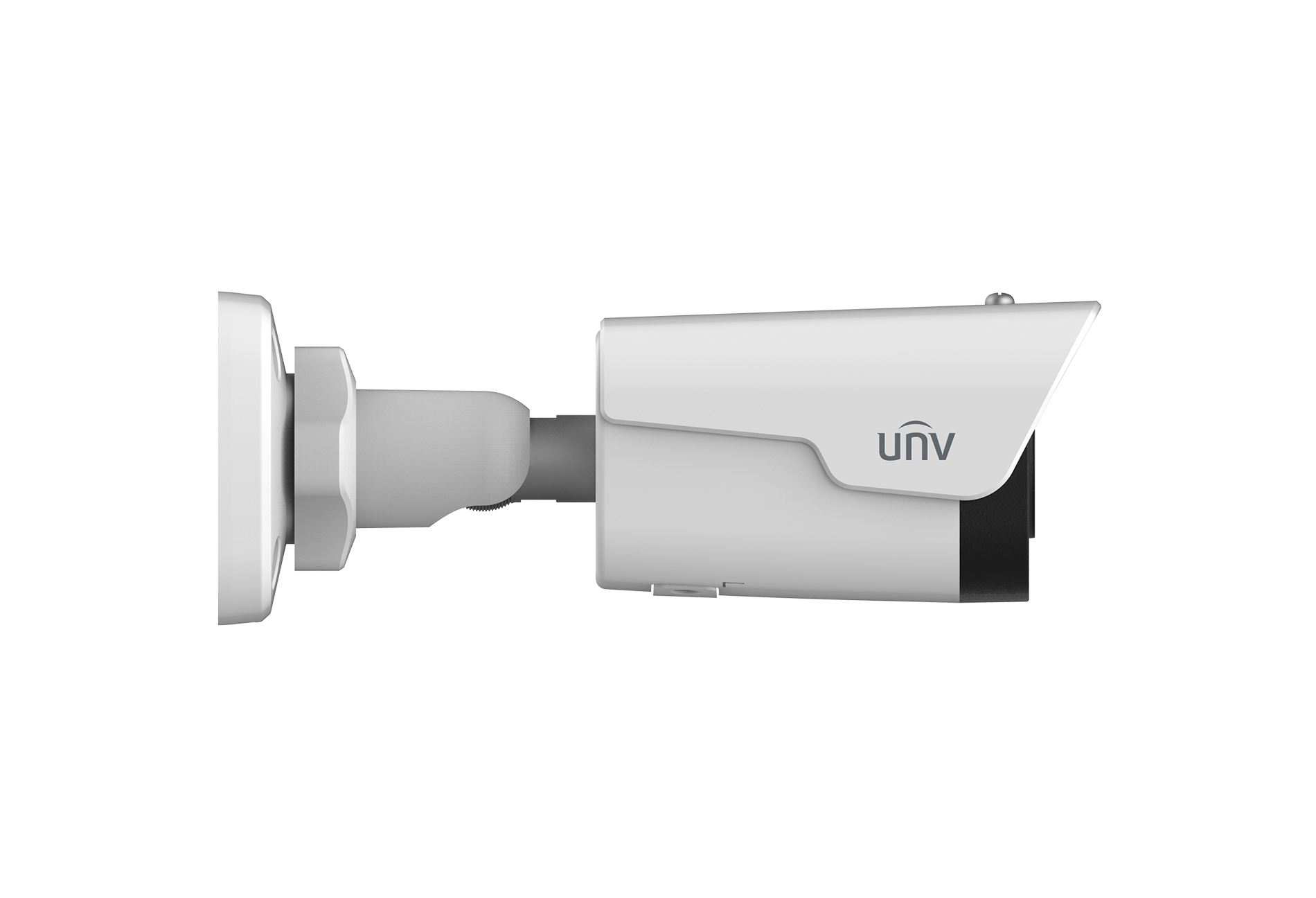

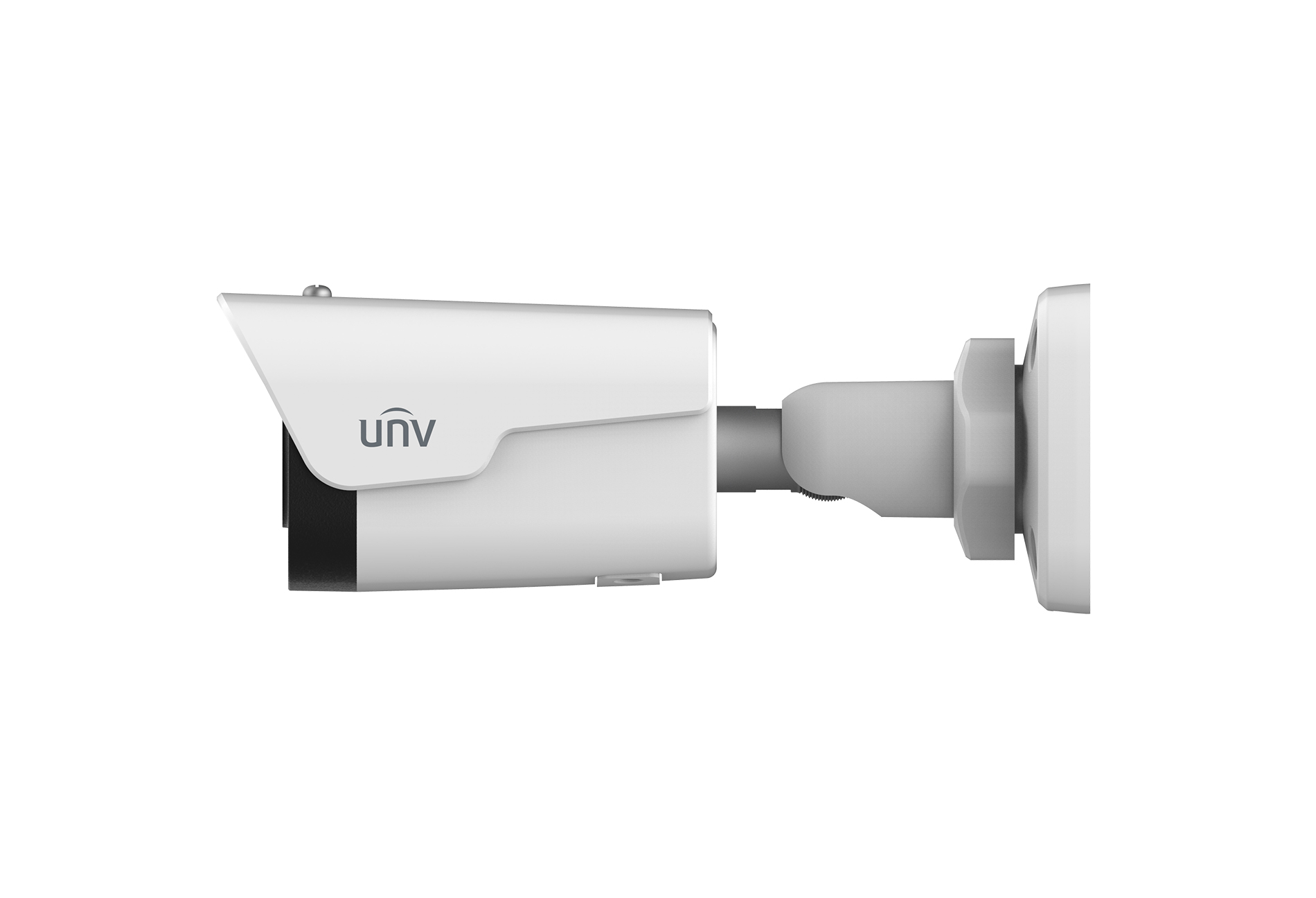

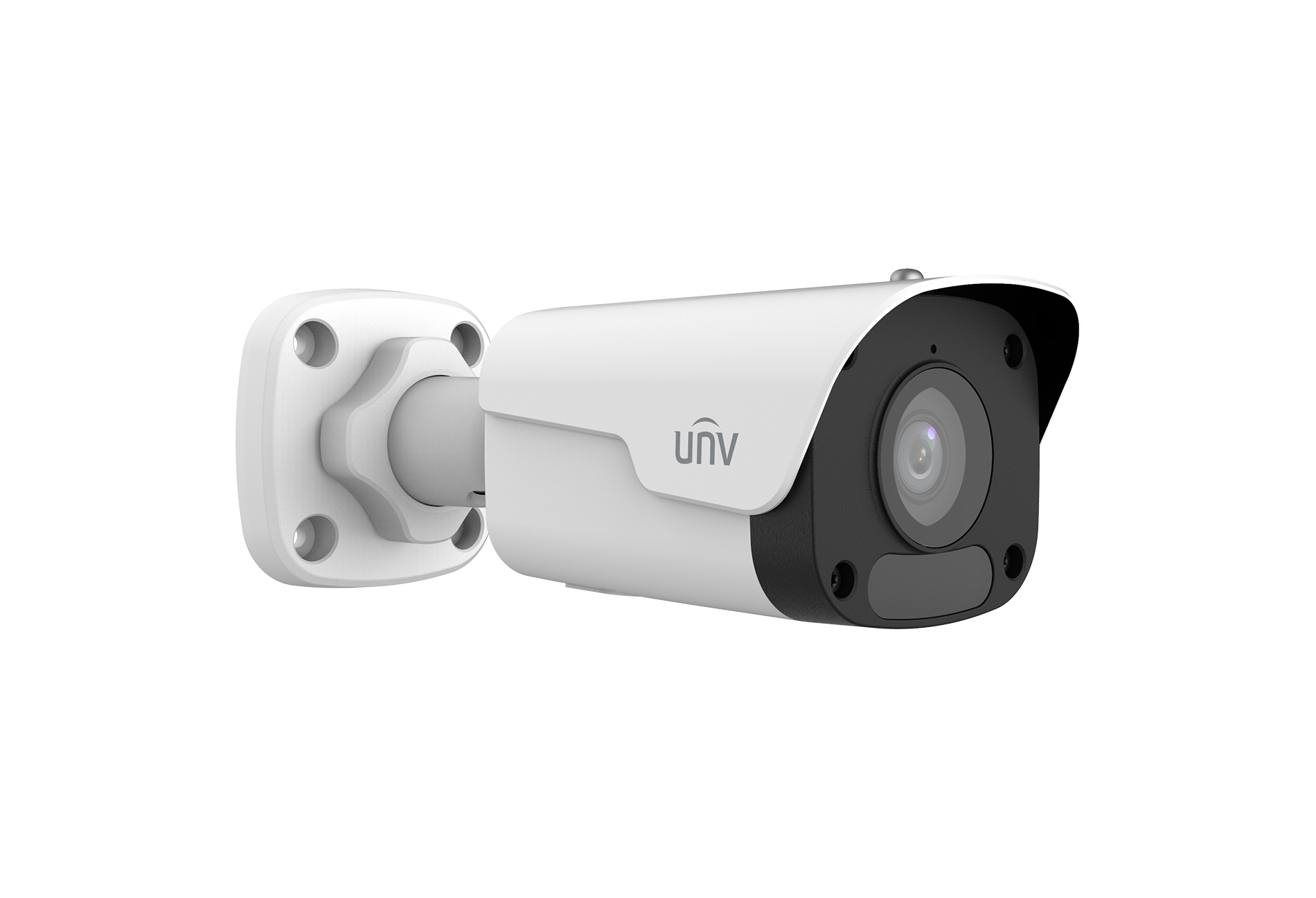

IPC2122LB-SF40-A

IPC2122LB-SF28-A

IPC2122LB-SF40-A

Camera

Sensor

1/2.8″, 2.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N

>52dB

WDR

DWDR

Lens

Lens Type

2.8mm and 4.0mm @1.6, Fixed-focal

Lens Mount

M12

Angle of View (H)

106.7°

87.5°

Angle of View (V)

57.1°

46.3°

Angle of View (O)

115.7°

92.4°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

43.4

17.4

8.7

4.3

4.0

62.1

24.8

12.4

6.2

Illuminator

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

Digital noise reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°

Dewarping

N/A

HLC

Supported

BLC

Supported

Defog

Digital Defog

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP

Compatible Integration

API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation
EZView
EZLive

Web Browser

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network

1 * RJ45 10M/100M Base-TX Ethernet

Certification

EMC

FCC: FCC Part 15

Safety

CE: EN 60950-1
UL: UL60950-1
IEC 60950-1

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (L × W × H)

161 × 63 ×62mm (6.4” × 2.5” × 2.4”)

Weight

0.27kg (0.60lb)

Material

Metal + Plastic

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Reset Button

N/A

Ingress Protection

Ingression protection: IP67
