Camera |
Description |
|
Resolution
|
2MP
|
|
Sensor
|
1/2.7’CMOS
|
|
Min. Illumination
|
Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Adjustment angle
|
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
|
|
S/N
|
>52dB
|
|
WDR
|
120dB
|
|
Lens |
Description |
|
Lens type
|
2.8~12mm
|
|
Iris
|
F1.6
|
|
Iris Type
|
Fixed
|
|
Field of View (H)
|
103.6°~33.4°
|
|
Field of View (V)
|
54.8°~18.7°
|
|
Field of View (D)
|
107.9°~37.8°
|
|
DORI |
Description |
|
DORI Distance（Lens）
|
2.8mm,12mm
|
|
DORI Distance（Detect）
|
43.4m(142.5ft),186.2m(610.9ft)
|
|
DORI Distance（Observe）
|
17.4m(57.0ft),74.5m(244.4ft)
|
|
DORI Distance（Recognize）
|
8.7m(27.5ft),37.2m(122.2ft)
|
|
DORI Distance（Identify）
|
4.3m(14.3ft),18.6m(61.1ft)
|
|
Illuminator |
Description |
|
IR Range
|
Up to 50m (164ft)
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Video |
Description |
|
Video Compression
|
Ultra 265; H.265; H.264; MJPEG
|
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|
Frame Rate
|
Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|
Video Bit Rate
|
128 Kbps~6144 Kbps
|
|
U-code
|
Support
|
|
OSD
|
Up to 4 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 8 areas
|
|
Video stream
|
Dual streams
|
|
Image |
Description |
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
Dewarping
|
N/A
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Defog
|
Digital Defog
|
|
Events |
Description |
|
Basic Detection
|
Cross line; intrusion (based on human body detection); Motion detection; Ultra motion detection; Tampering alarm; Audio detection
|
|
General Function
|
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
|
|
Audio |
Description |
|
Audio Compression
|
G.711U;G.711A
|
|
Audio Bitrate
|
64 Kbps
|
|
Two-way Audio
|
N/A
|
|
Suppression
|
Support
|
|
Sampling Rate
|
8KHZ
|
|
Storage |
Description |
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR; NAS(NFS)
|
|
Network |
Description |
|
Protocols
|
IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T); API; SDK
|
|
User/Host
|
Up to 32 users, 2 user levels: administrator and common user
|
|
Security
|
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
|
|
Client
|
EZStation; EZView; EZLive
|
|
Web Browser
|
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
|
Interface |
Description |
|
Audio I/O
|
1 Input: impedance 35kΩ; amplitude 2V [p-p];1 Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
1/1
|
|
Serial Port
|
N/A
|
|
Built-in Mic
|
Support
|
|
Built-in Speaker
|
N/A
|
|
WIFI
|
N/A
|
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
N/A
|
|
Certification |
Description |
|
EMC
|
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety
|
CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment
|
CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU);
|
|
Protection
|
IP67 (IEC 60529)
|
|
General |
Description |
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.6W |
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
Dimensions (L x W x H)
|
206 × 73 × 73mm (8.1” × 2.9” × 2.9”)
|
|
Weight
|
0.51kg(1.12lb)
|
|
Material
|
Graphene + Metal
|
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Storage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge protection
|
6KV
|
|
Reset button
|
Support
|
|
Web Client Language
|
4 Languages English, Russian, Spanish, Vietnamese |
IPC2322LB-ADEZK-H

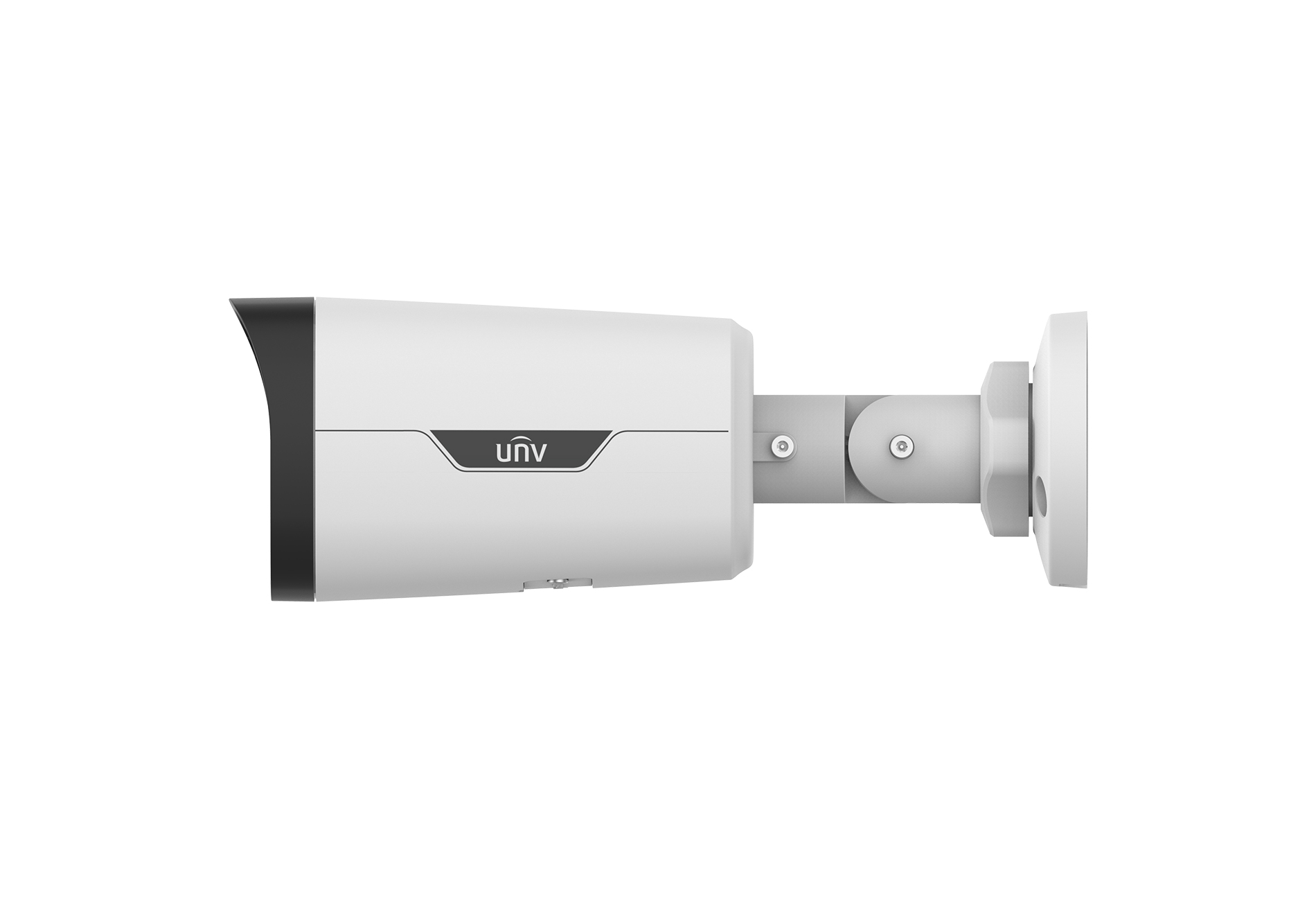

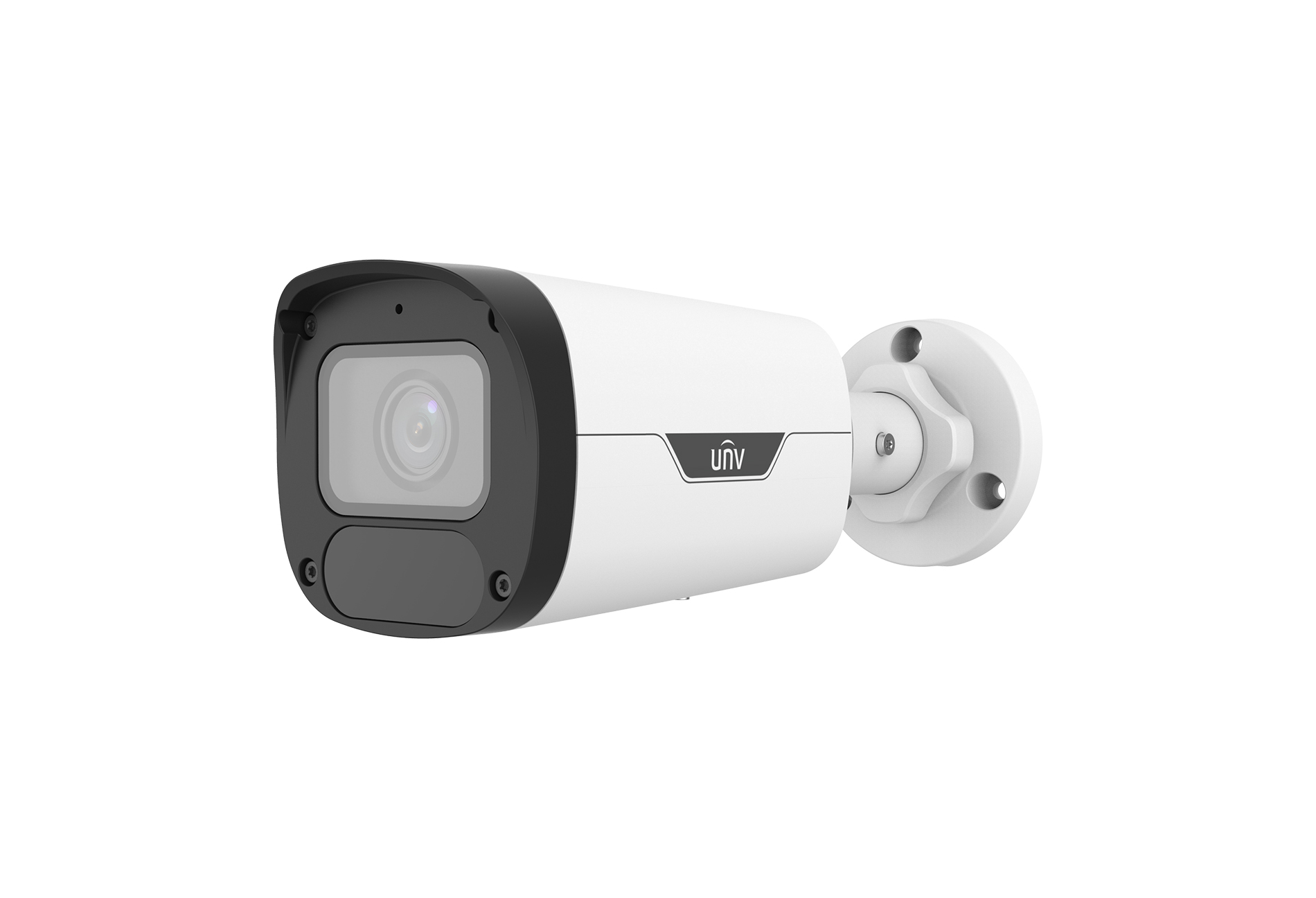

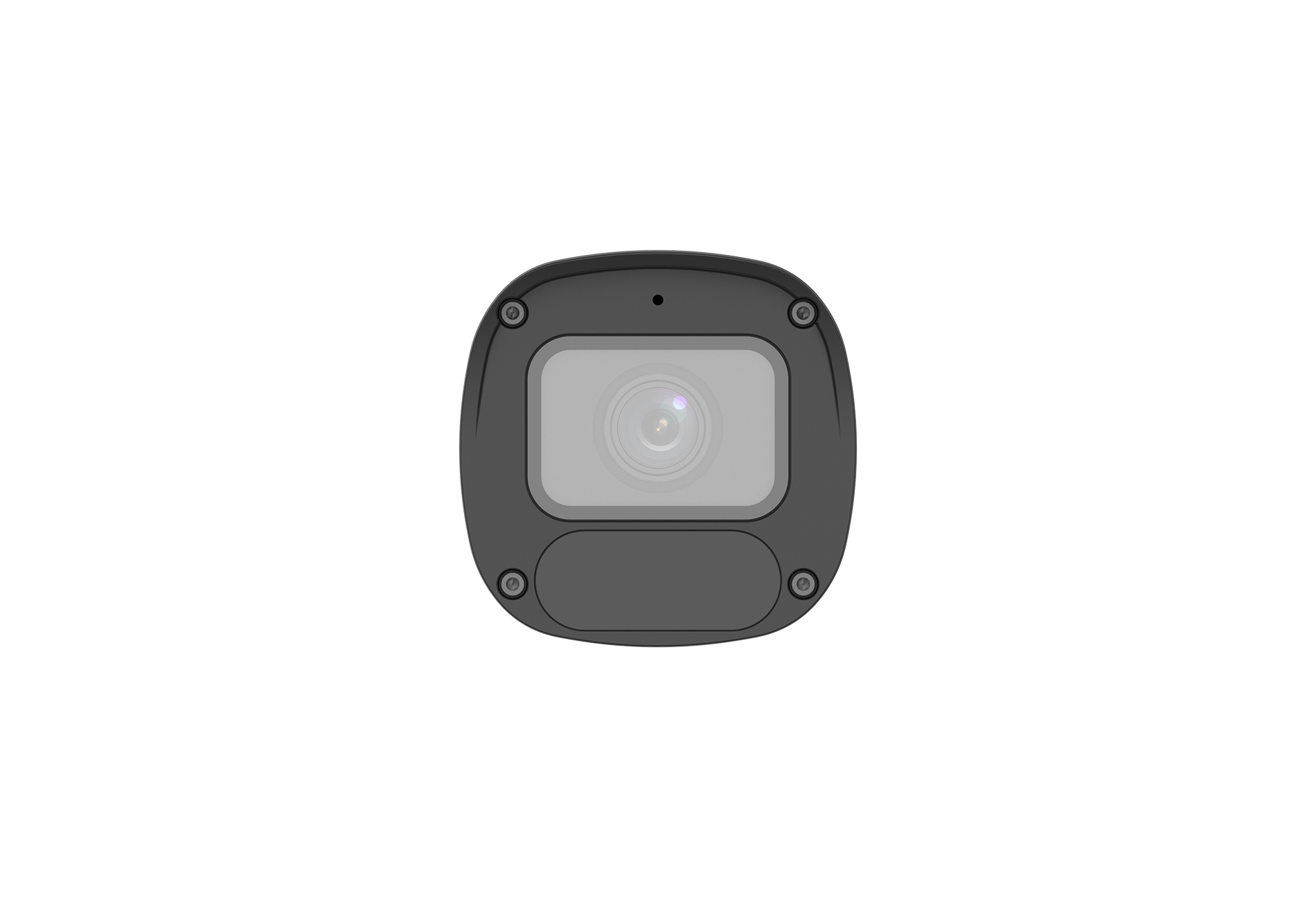

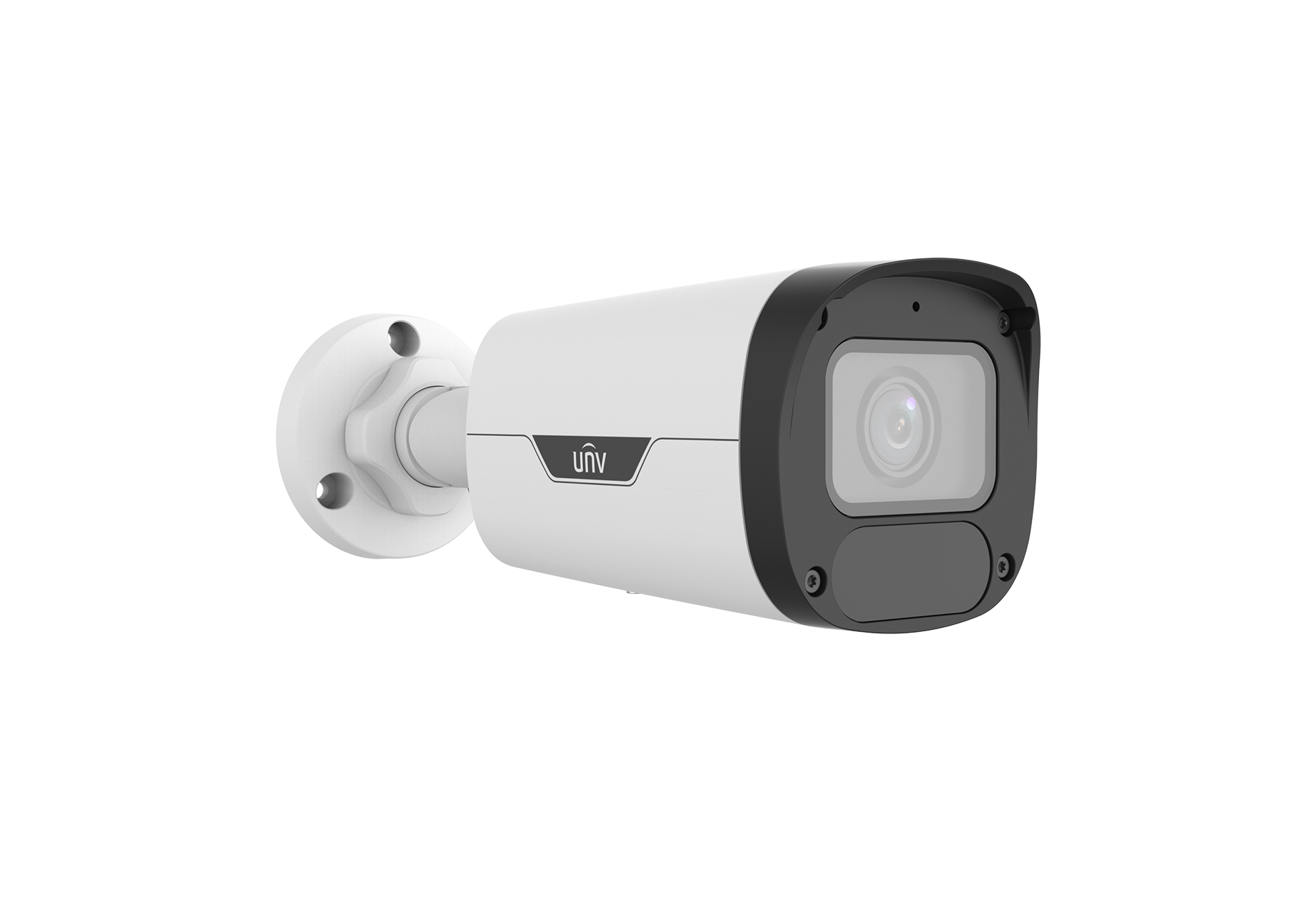

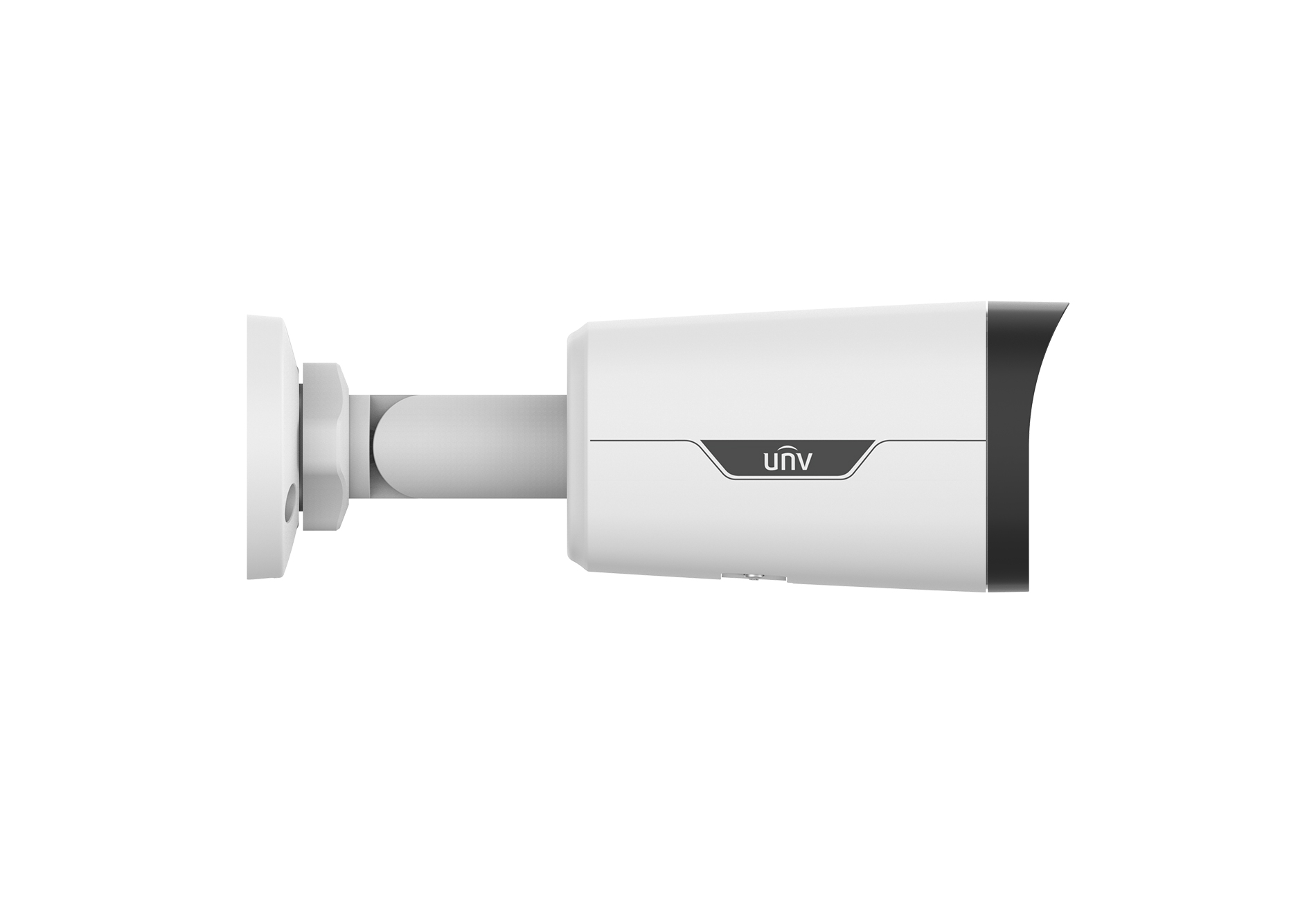

2MP HD IR VF Bullet Network Camera
- High quality image with 2MP, 1/2.8″CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
