Camera
|
Description
|
|
|
Sensor
|
1/1.8″CMOS
|
|
|
Min. Illumination
|
Colour:0.001lux (F1.6, AGC ON)
0 lux with Light |
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
|
Shutter
|
Auto/Manual,
1 ~ 1/100000s |
|
|
WDR
|
120dB
|
|
|
S/N
|
Lens
|
Description
|
|
Lens type
|
8~32mm
|
|
|
Iris
|
F1.6
|
|
|
Field of View (H)
|
42.6°~23.5°
|
|
|
Field of View (V)
|
15.2°~8.9°
|
|
|
Field of View (D)
|
52.4°~27.7°
|
|
|
DORI
|
Description
|
|
|
DORI Distance（Lens）
|
8~32(mm)
|
|
|
DORI Distance（Detect）
|
165.7m(543.7ft)~444.4m(1458.1ft)
|
|
|
DORI Distance（Observe）
|
66.3m(217.5ft)~177.8m(583.2ft)
|
|
|
DORI Distance（Recognize）
|
33.1m(108.7ft)~88.9m(291.6ft)
|
|
|
DORI Distance（Identify）
|
16.6m(54.4ft)~44.4m(145.8ft)
|
|
|
Illuminator
|
Description
|
|
|
IR Range
|
Up to 120m (393.7 ft)
|
|
|
Warm Light Range
|
Up to 30m (98.4 ft)
|
|
|
Wavelength
|
750nm
|
|
|
IR On/Off Control
|
Auto/Manual
|
|
|
Video
|
Description
|
|
|
Video Compression
|
Ultra 265&H.265&H.264&MJPEG
|
|
|
Frame Rate
|
Main Stream: 4MP(2688*1520),Max 60fps;
Sub Stream: 2MP(1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
|
ROI
|
Up to 8 areas
|
|
|
Video stream
|
Triple streams
|
|
|
OSD
|
Up to 8 OSDs
|
|
|
Privacy Mask
|
Up to 8 areas (8 blacks / 8 mosaics)
|
|
|
|
Description
|
|
|
White Balance
|
Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2
|
|
|
Digital noise reduction
|
2D/3D DNR
|
|
|
Smart IR
|
Support
|
|
|
Flip
|
Flip Vertical;Flip Horizontal;Normal;180°;90°Clockwise;90°Anti-clockwise
|
|
|
HLC
|
Support
|
|
|
BLC
|
Support
|
|
|
Defog
|
Digital Defog
|
|
|
Intelligent
|
Description
|
|
|
Smart intrusion prevention
|
Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
|
|
|
Face Capture
|
Face capture
Face attributes: Gender, Age range, Glasses, Mask |
|
|
Events
|
Description
|
|
|
Basic Detection
|
Motion detection;Audio detection;Tampering alarm
|
|
|
General Function
|
Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP authentication;Alarm input;Alarm output
|
|
|
Audio
|
Description
|
|
|
Audio Compression
|
G.711U;G.711A
|
|
|
Audio Bitrate
|
128 Kbps
|
|
|
Two-way Audio
|
Support
|
|
|
Suppression
|
Support
|
|
|
Sampling Rate
|
16KHZ
|
|
|
Storage
|
Description
|
|
|
Edge Storage
|
Micro SD，up to 256 GB
|
|
|
Network Storage
|
ANR;NAS(NFS)
|
|
|
Network
|
Description
|
|
|
Protocols
|
IGMP;RTP;SMTP;IPv4;IPv6;TCP;ICMP;ARP;UDP;DHCP;PPPoE;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;802.1x;SNMP;QoS;SSL/TLS;SSH
|
|
|
Compatible Integration
|
API;SDK;ONVIF (Profile S, Profile G, Profile T)
|
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator,common user and operator
|
|
|
Security
|
Password protection&Strong password&HTTPS encryption&Export operation logs&Basic and digest authentication for RTSP&Digest authentication for HTTP&TLS 1.2&WSSE and digest authentication for ONVIF
|
|
|
Client
|
EZStation; EZLive;EZView
|
|
|
Web Browser
|
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above&Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above
|
|
|
Pan/Tilt
|
Description
|
|
|
Home Position
|
Support
|
|
|
Interface
|
Description
|
|
|
Audio I/O
|
2/1
|
|
|
Alarm I/O
|
3/2
|
|
|
Serial Port
|
1 channel RS485 interface
|
|
|
Built-in Mic
|
Built-in two mics
|
|
|
Built-in Speaker
|
Support
|
|
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
|
|
Certification
|
Description
|
|
|
EMC
|
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|
|
Safety
|
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
|
|
Protection
|
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
|
|
General
|
Description
|
|
|
Power
|
DC12V(±25%) , PoE+ (IEEE 802.3at)
|
|
|
Power Consumption
|
Max 23W
|
|
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
|
Dimensions
|
406 x 126 x 130mm(16.0” x 5.0” x 5.1”)
|
|
|
Weight
|
2.14kg(4.72lb)
|
|
|
Working Environment
|
-40℃ ~ 60℃ (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
|
Storage Environment
|
-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
|
|
|
Surge protection
|
6KV
|
|
|
Reset button
|
Support
|
|
|
Heater
|
Support
|

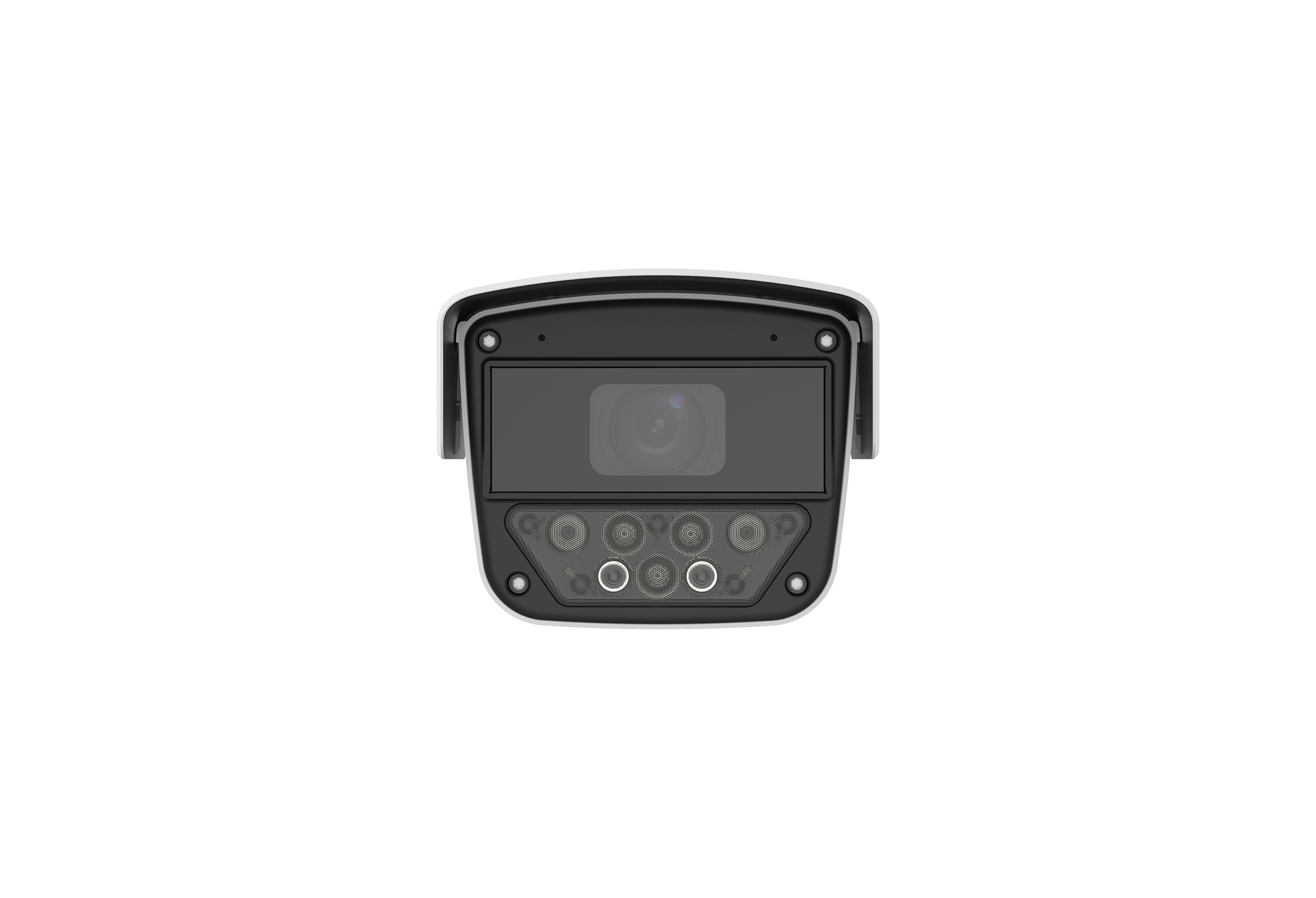

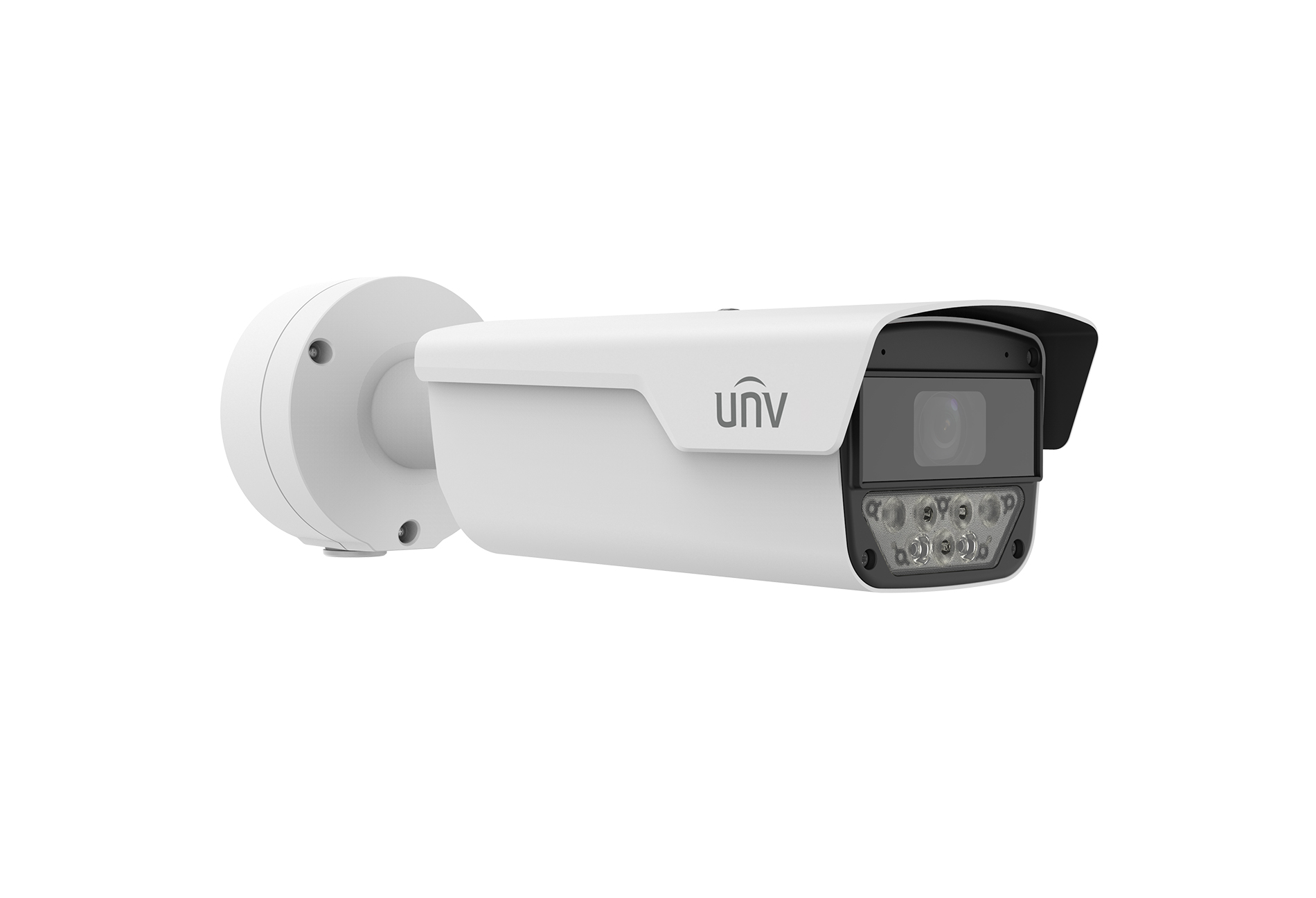

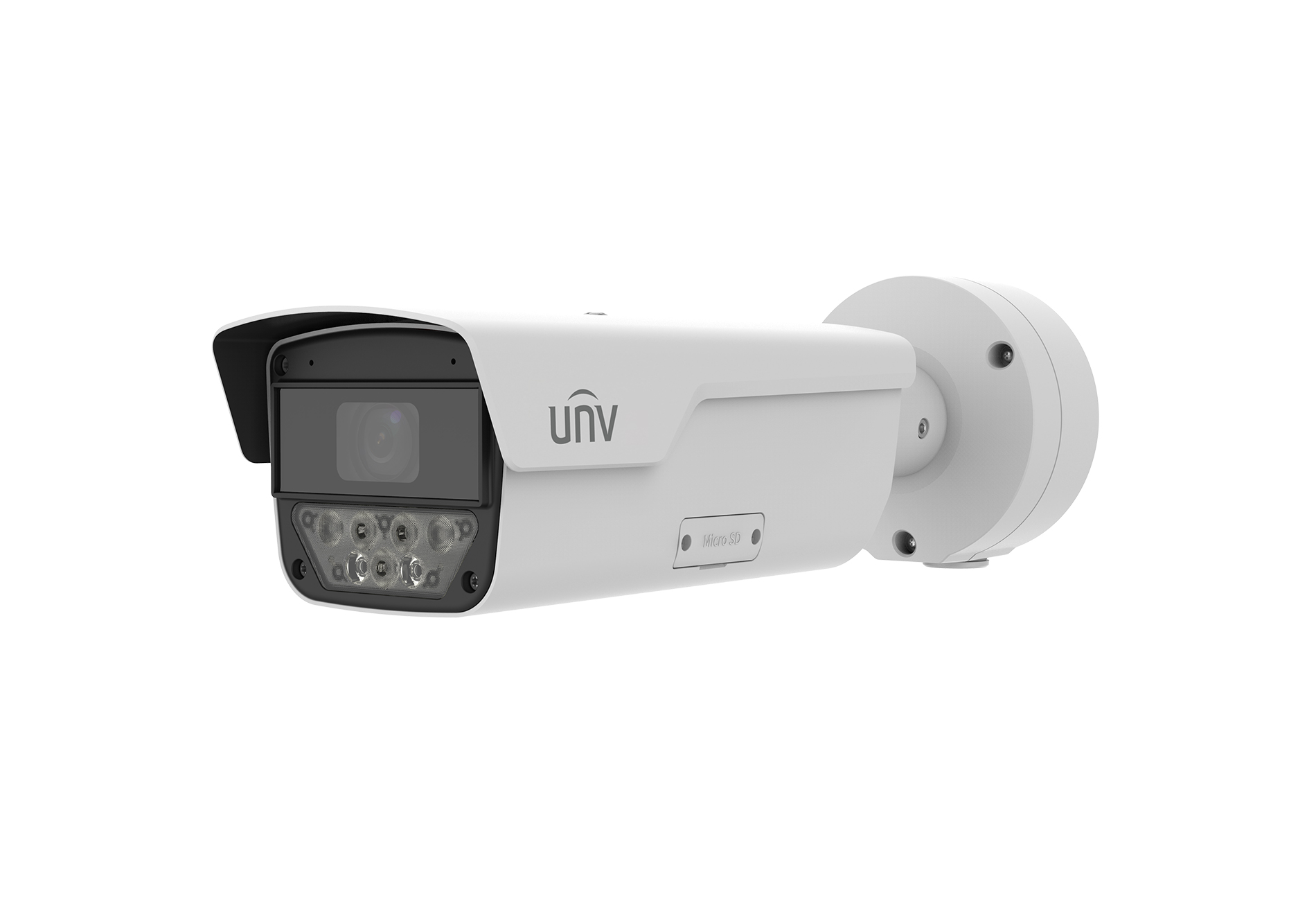

IPC264SA-AHDX4K-I1
4MP Super Starlight WDR VF Lens Bullet Network Camera
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Face capture, automatic selection of best snapshots and face attribute collection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 5 mixed-lights, up to 120m IR range, up to 30m warm light
- DC12V or PoE (IEEE 802.3at) power supply
- Built-in heater, allow low temperature start-up at -40°C
- Audio 2 in and 1 out, Alarm 3 in and 2 out
- IP67, IK10
*Intelligent function supported when frame rate is below 30
