Camera |
IPC28184EA-ADX5K-F40-I1 |
||||
|
Sensor |
Channel 1 : 1/1.8″, 4.0 megapixel, progressive scan, CMOS |
||||
|
Min. Illumination |
Channel 1 : Colour:0.0005lux (F1.0, AGC ON) |
||||
|
Day/Night |
Channel 2 : IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
Angle Adjustment |
Channel 2 : Tilt: -10° to 10° (electric control , for installation and debugging) |
||||
|
WDR |
120dB |
||||
|
S/N |
>56dB |
||||
|
Lens |
|
||||
|
Lens type |
Channel 1 : 4mm |
||||
|
Optical Zoom |
Channel 2 : 5X |
||||
|
Iris |
Channel 1 : Fixed aperture |
||||
|
Field of View (H) |
Channel 1 : 94.7° |
||||
|
Field of View (V) |
Channel 1 : 50.3° |
||||
|
Field of View (D) |
Channel 1 : 116.5° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
10 |
292.5 (959.6ft) |
117.0 (383.9ft) |
58.5 (191.9ft) |
29.3 (96.0ft) |
|
|
50 |
1237.5 (4060.0ft) |
495.0 (1624.0ft) |
247.5 (812.0ft) |
123.8 (406.0ft) |
|
|
4 |
79.1(259.6ft) |
31.7(103.9ft) |
15.8(51.9ft) |
7.9(26.0ft) |
|
|
Illuminator |
|||||
|
Warm Light Distance |
Up to 30m (98.43ft) |
||||
|
IR Range |
Up to 50m (164.0ft) IR range |
||||
|
IR Wavelength |
750nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265,H.265,H.264,MJPEG |
||||
|
Frame Rate |
Channel 1 : |
||||
|
U-code |
Support |
||||
|
ROI |
Up to 8 ROIs |
||||
|
Video stream |
Triple streams |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
Up to 8 areas(black/mosaic) |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital noise reduction |
2D/3D NR |
||||
|
Smart IR |
Support |
||||
|
Distortion Correction |
Support |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Intelligent (Channel 2 Only) |
|||||
|
Video Metadata |
Support collecting the attributes and images of pedestrian, vehicle and non-motor vehicle, offer information for further data analysis |
||||
|
Smart intrusion Prevention |
Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
||||
|
Face Capture |
Enlarged concurrent detection number, up to 120 faces |
||||
|
Events |
|||||
|
Basic Detection |
Motion detection, Audio detection, Tampering alarm |
||||
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U,G.711A |
||||
|
Audio Bitrate |
64 Kbps |
||||
|
Two way audio |
Support |
||||
|
Suppression |
Support |
||||
|
Sampling Rate |
8KHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256 GB |
||||
|
Network Storage |
ANR,NAS(NFS) |
||||
|
Network |
|||||
|
Protocols |
IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
||||
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
||||
|
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
|
Client |
EZStation |
||||
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
||||
|
Interface |
|||||
|
Audio I/O |
2/1 |
||||
|
Alarm I/O |
3/2 |
||||
|
Serial Port |
1 RS485 |
||||
|
Built-in Mic |
Support |
||||
|
Built-in Speaker |
Support |
||||
|
Network |
1 x RJ45 10M/100M/1000M Base-TX Ethernet |
||||
|
Certifications |
|||||
|
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) |
||||
|
Safety |
CE LVD (EN 62368-1:2014+A11:2017) |
||||
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
||||
|
Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
||||
|
General |
|||||
|
Power |
AC24V±25% |
||||
|
Power consumption: Max 31w |
|||||
|
Dimensions (Ø x H) |
Φ326x147x121mm(Φ12.8’’x5.8’’x4.8’’) |
||||
|
Weight |
2.11kg |
||||
|
Working Environment |
-30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
|
Storage Environment |
-40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
||||
|
Surge protection |
Support |
||||
|
Reset button |
Support |
||||

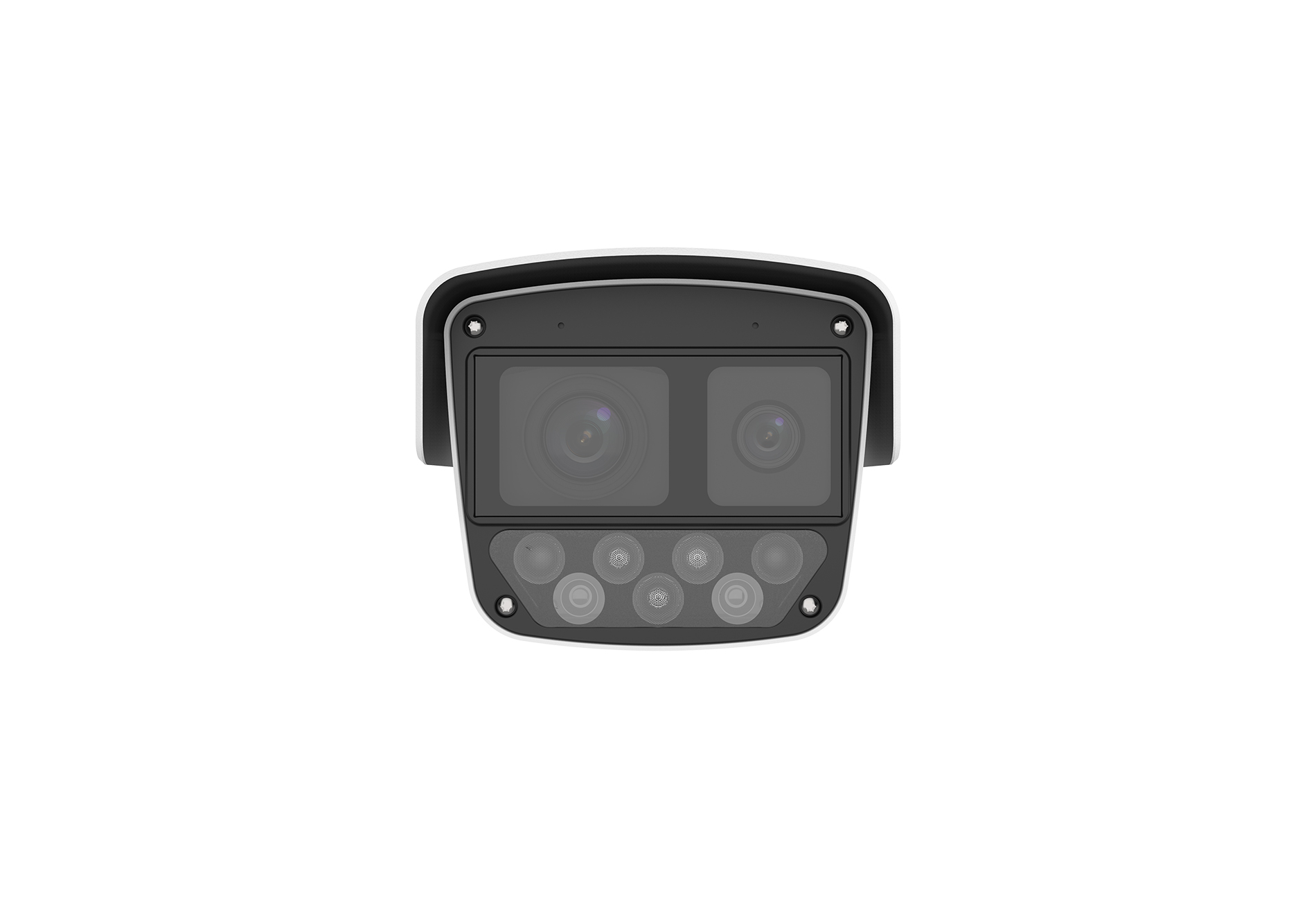

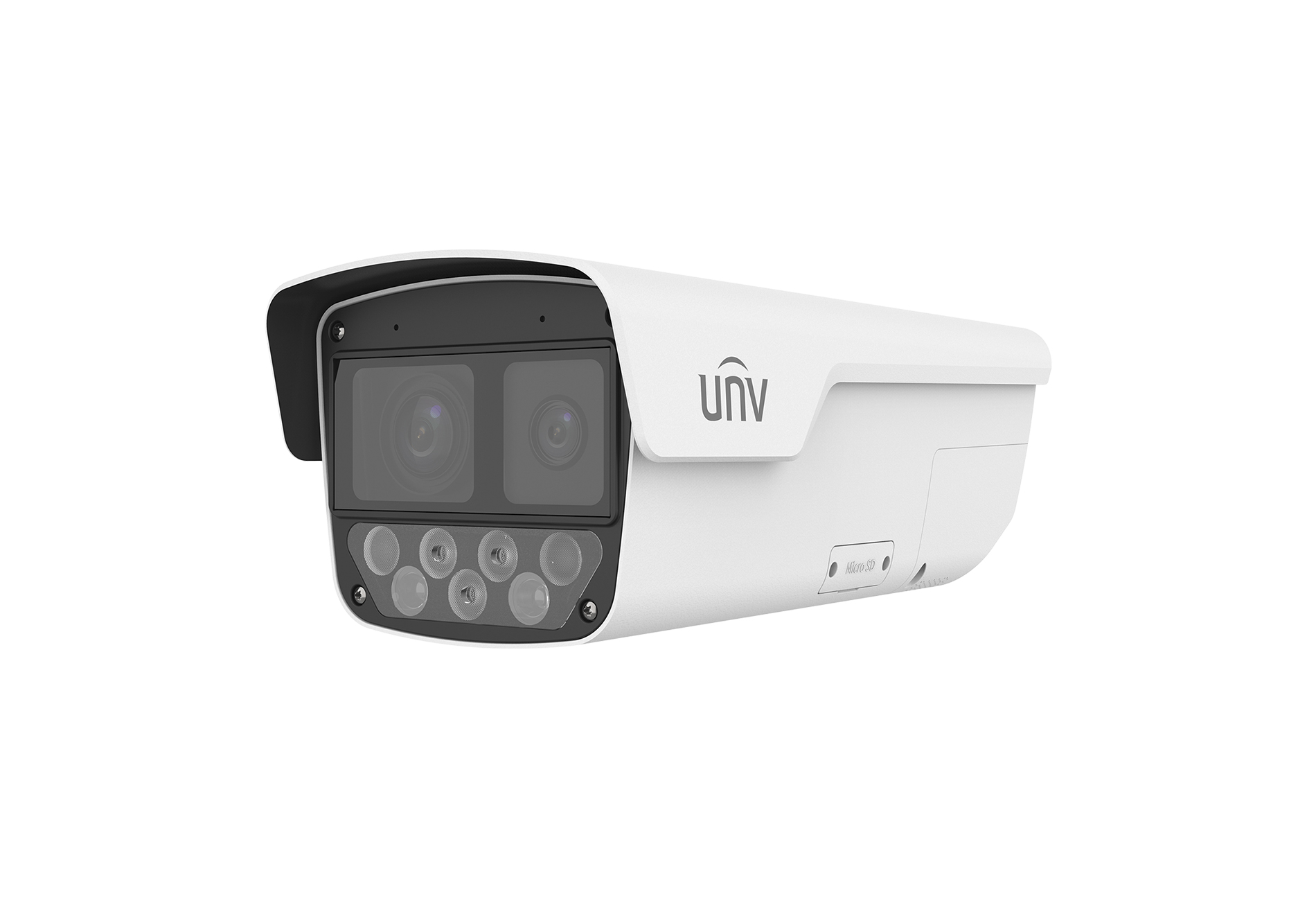

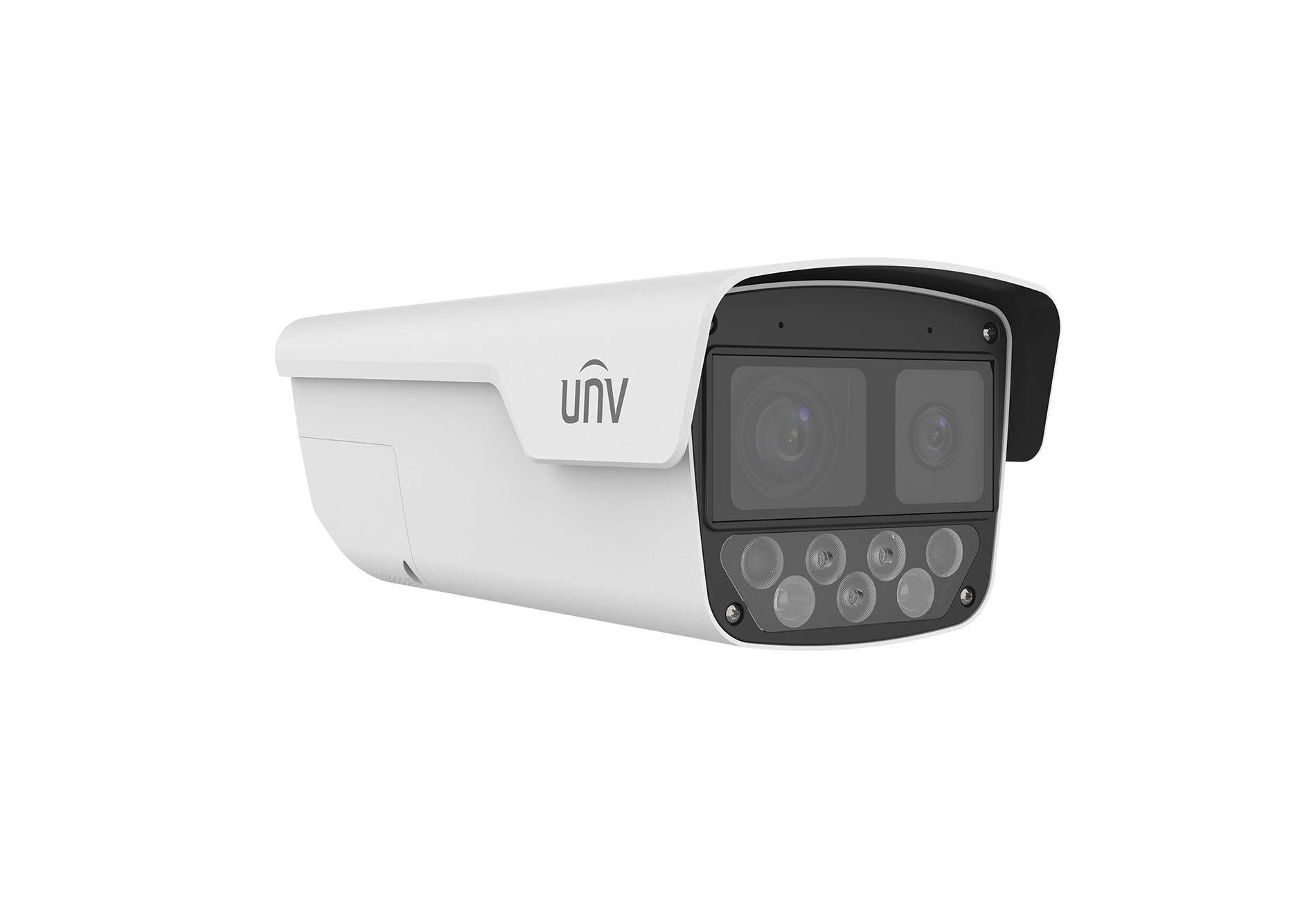

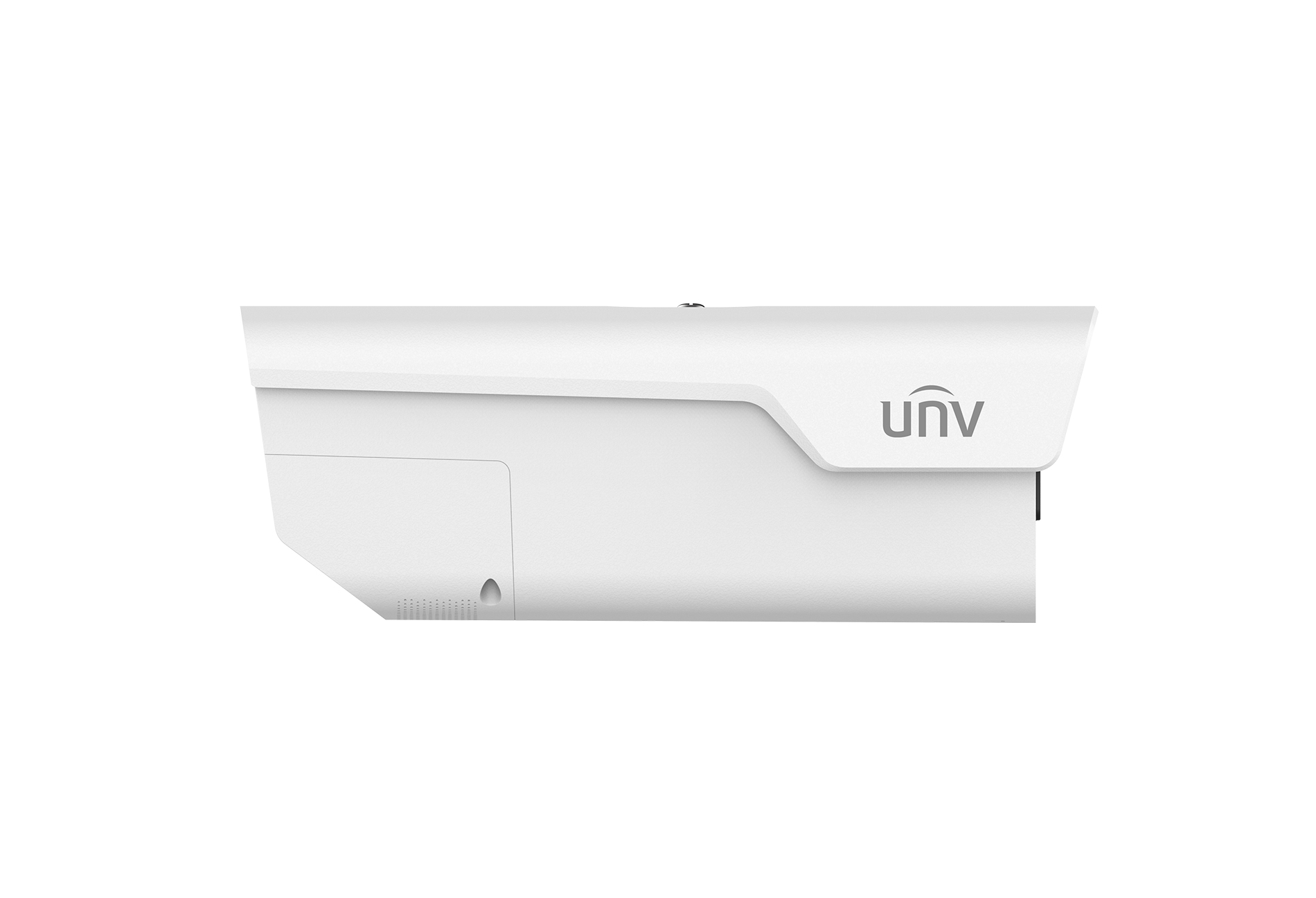

IPC28184EA-ADX5K-F40-I1
8MP+4MP Bi-Channel LightHunter Intelligent Bullet Network Camera
- One IP with two channels, combines the details and full view, making target area stand out without losing overall view
- 3840*2160@30fps in the main stream of detailed channel with ISP algorithm, provide high definition image
- Ultra 265, H.265, H.264, MJPEG
- Built-in dual Mic, efficiently realizes the noise control by noise reduction algorithm
- Two types of illumination light, offer three illumination modes and support sound-light warning
- Detailed channel supports electric control and tilt angle adjustment, easier for installation and debugging
- Switching among three Intelligent functions, suitable for various application scenes
- Mix-traffic detection, support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis
- Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target
- Face capture, automatic selection of best snapshots, increases the concurrent detection number up to 120 faces
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Audio 2 in and 1 out, Alarm 3 in and 2 out
