Camera |
Description |
|
Sensor
|
1/2.7’CMOS
|
|
Min. Illumination
|
Colour: 0.0005 lux (F1.0, AGC ON)
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Adjustment angle
|
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
|
|
S/N
|
>52dB
|
|
WDR
|
130dB
|
|
Lens |
Description |
|
Lens type
|
2*4.0mm
|
|
Iris
|
F1.0
|
|
Field of View (H)
|
180°±10°
|
|
Field of View (V)
|
47.41°
|
|
Field of View (D)
|
180.13°±10°
|
|
Zoom
|
Fixed
|
|
DORI |
Description |
|
DORI Distance（Lens）
|
4.0mm
|
|
DORI Distance（Detect）
|
90m(259.3ft）
|
|
DORI Distance（Observe）
|
36m(118.1ft)
|
|
DORI Distance（Recognize）
|
18m(59.1ft)
|
|
DORI Distance（Identify）
|
9m(29.5fft)
|
|
Illuminator |
Description |
|
Illumination Distance(Warm Light)
|
30m
|
|
Light On/Off Control
|
Auto/Manual
|
|
Video |
Description |
|
Video Compression
|
Ultra 265;H.265;H.264;MJPEG
|
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|
Frame Rate
|
Main Stream: 8MP (5120*1440), Max 20fps Sub Stream: 2560*720, Max 20fps |
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
U-code
|
Support
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 8 areas
|
|
Video stream
|
Double streams
|
|
Image |
Description |
|
White Balance
|
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart Illumination
|
Support
|
|
Flip
|
N/A
|
|
Dewarping
|
N/A
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Defog
|
Digital Defog
|
|
Image stabilization
|
N/A
|
|
Auto Scene Match (ASM)
|
Support（Only WDR）
|
|
Intelligent |
Description |
|
Smart intrusion prevention
|
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
|
|
Statistical Analysis
|
People counting, support people flow counting and crowd density monitoring(Only Channel 1)
|
|
Events |
Description |
|
Basic Detection
|
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
|
|
General Function
|
Watermark;IP Address Filtering;Alarm input;Alarm output;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP Authentication
|
|
Audio |
Description |
|
Audio Compression
|
G.711U; G.711A
|
|
Audio Bitrate
|
64 Kbps
|
|
Two-way Audio
|
Support
|
|
Suppression
|
Support
|
|
Sampling Rate
|
8KHZ
|
|
Storage |
Description |
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR,NAS(NFS)
|
|
Network |
Description |
|
Protocols
|
IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T);API;SDK
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator,common user and operator
|
|
Security
|
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
|
|
Client
|
EZStation; EZView; EZLive
|
|
Web Browser
|
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above;Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above
|
|
Interface |
Description |
|
Audio I/O
|
1 Input: impedance 35kΩ; amplitude 2V [p-p];1 Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
1/1
|
|
Serial Port
|
N/A
|
|
Built-in Mic
|
Built-in two mics
|
|
Built-in Speaker
|
Support
|
|
WIFI
|
N/A
|
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
N/A
|
|
Certification |
Description |
|
EMC
|
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|
Safety
|
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
|
Protection
|
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|
General |
Description |
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 13W |
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
Dimensions
|
273 × 130 × 76mm (10.7” × 5.1” × 3.0”)
|
|
Weight
|
0.96kg (2.12lb)
|
|
Material
|
Metal
|
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Storage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge protection
|
4KV
|
|
Reset button
|
Support
|
|
Web Client Language
|
20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
New

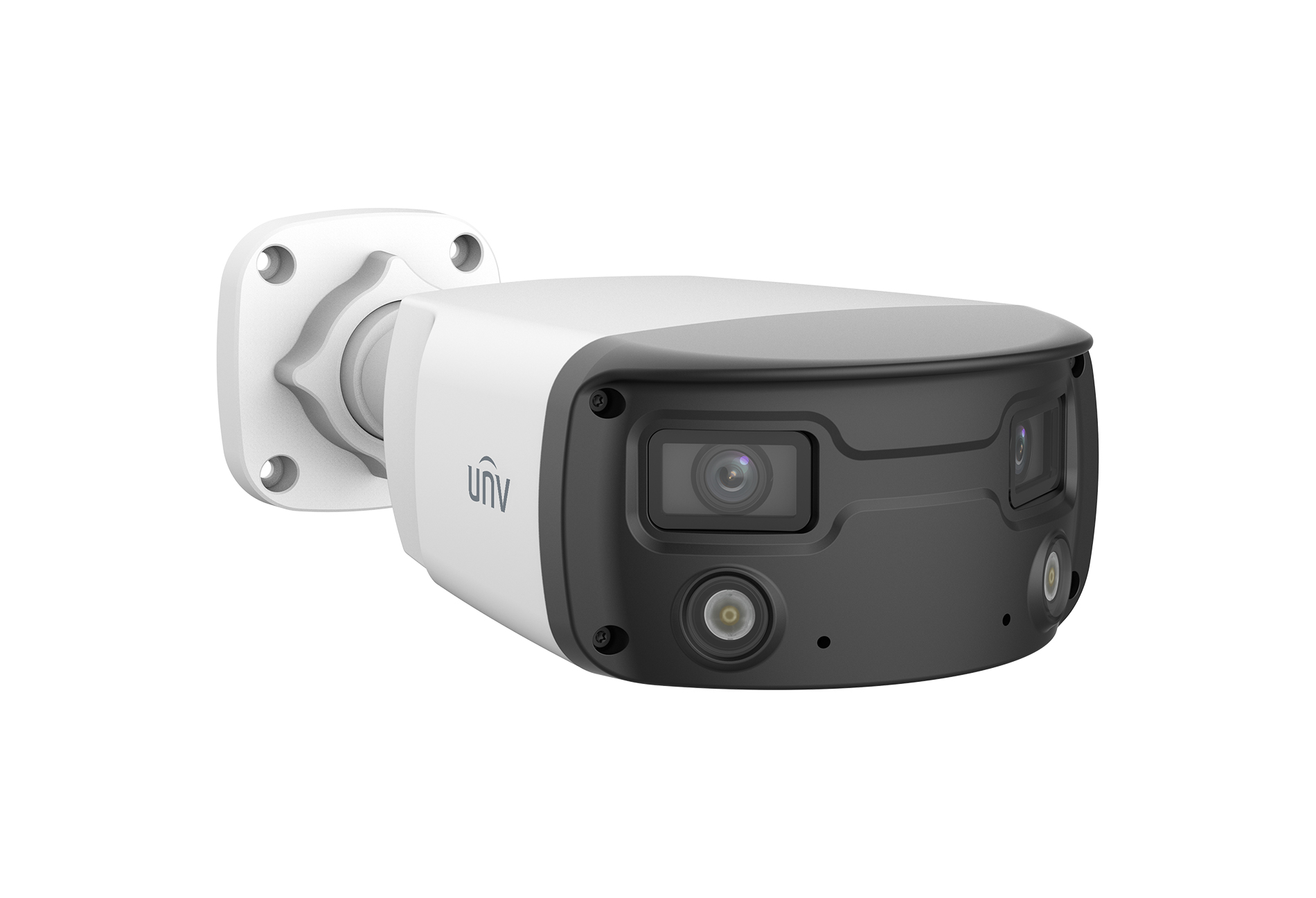

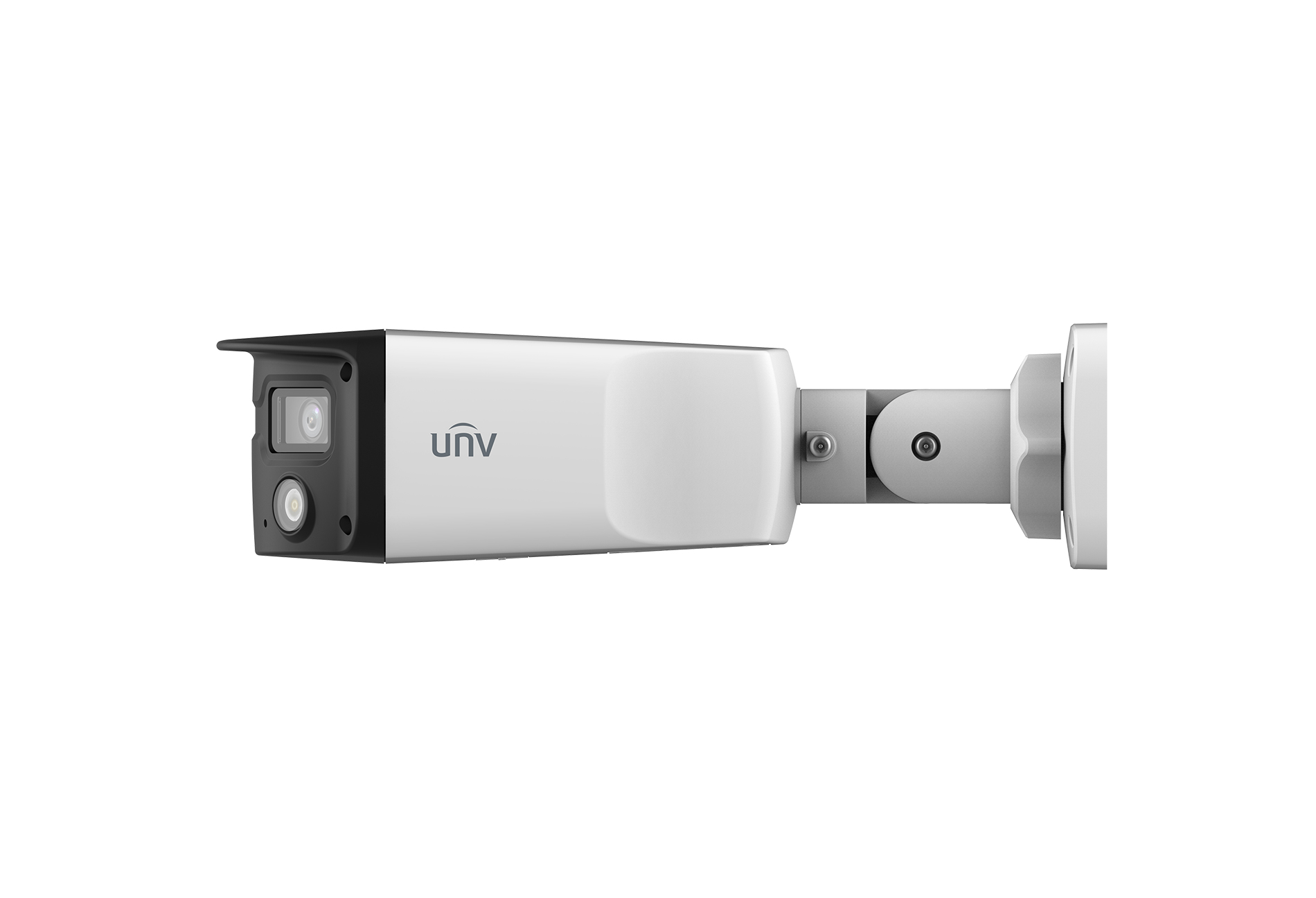

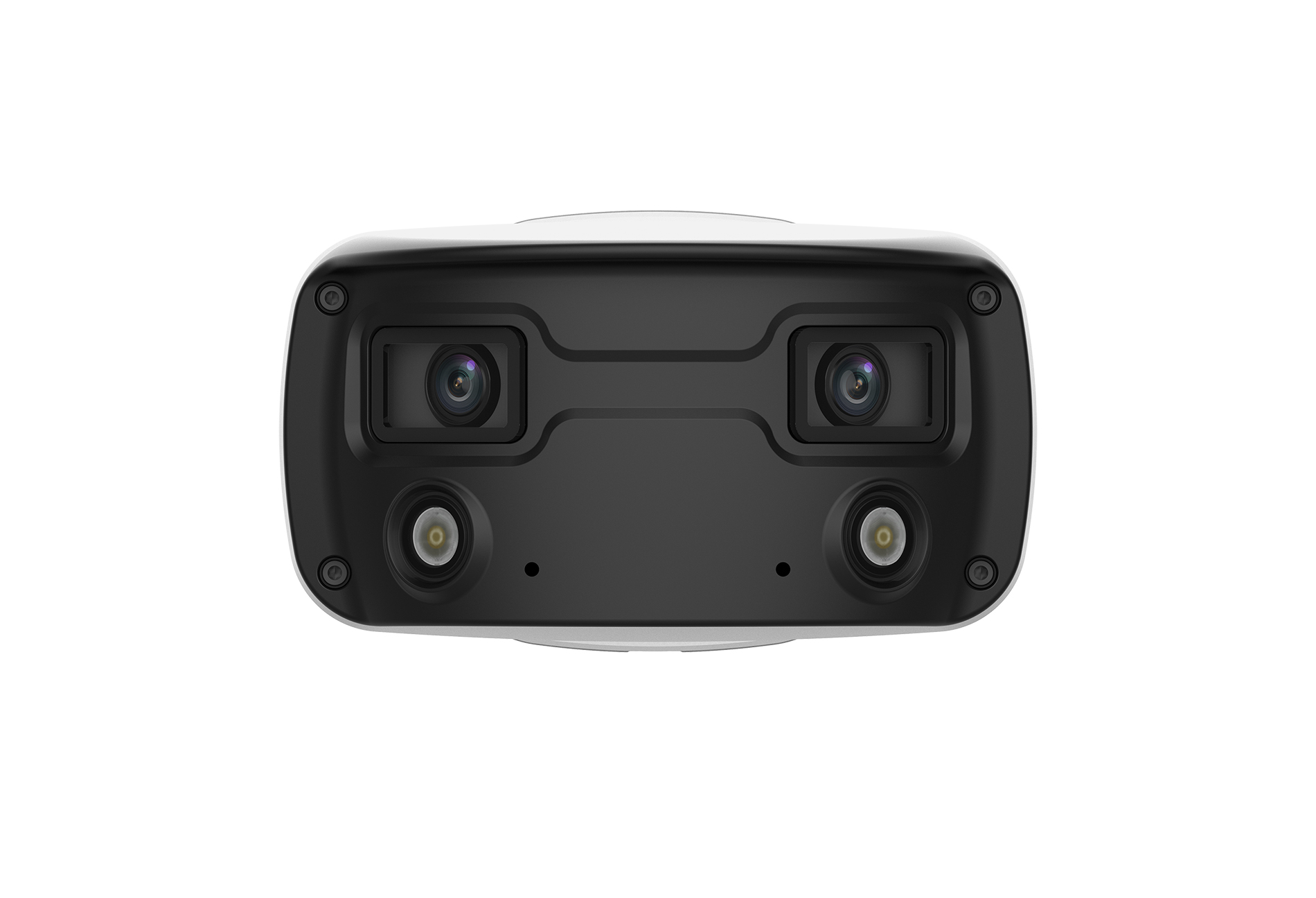

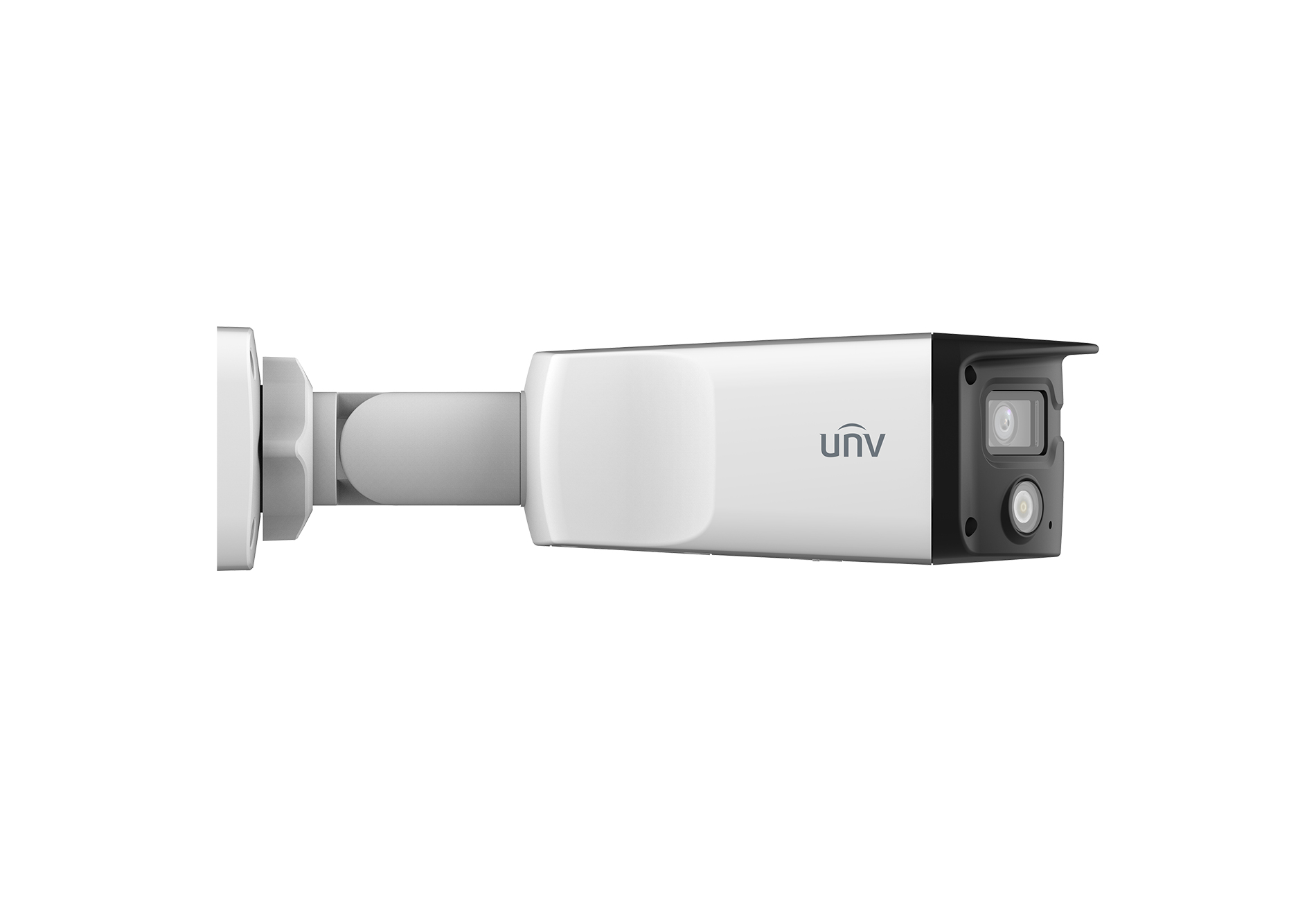

IPC2K28SE-ADF40KMC-WL-I0
8MP Colour Hunter Bullet Network Camera
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (5120*1440)@20fps
- The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°±10°
- Colorhunter technology ensures 24-hour full-color images
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR）
- Alarm:1 in/1 out
- Audio: 1 in/1 out
- Built-in speaker and dual mics
- Support 256 GB micro SD card
- 12V DC/PoE power supply
