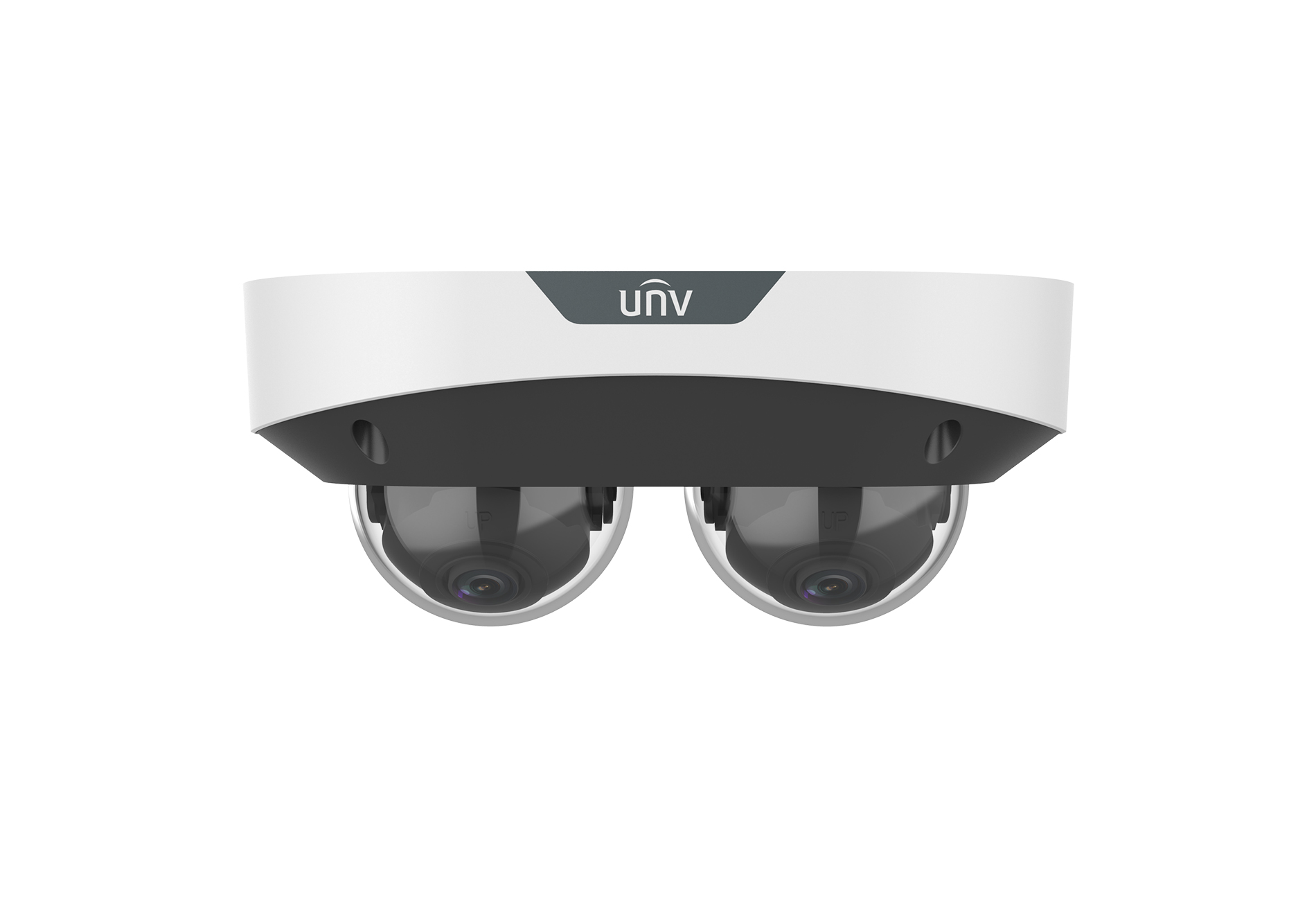

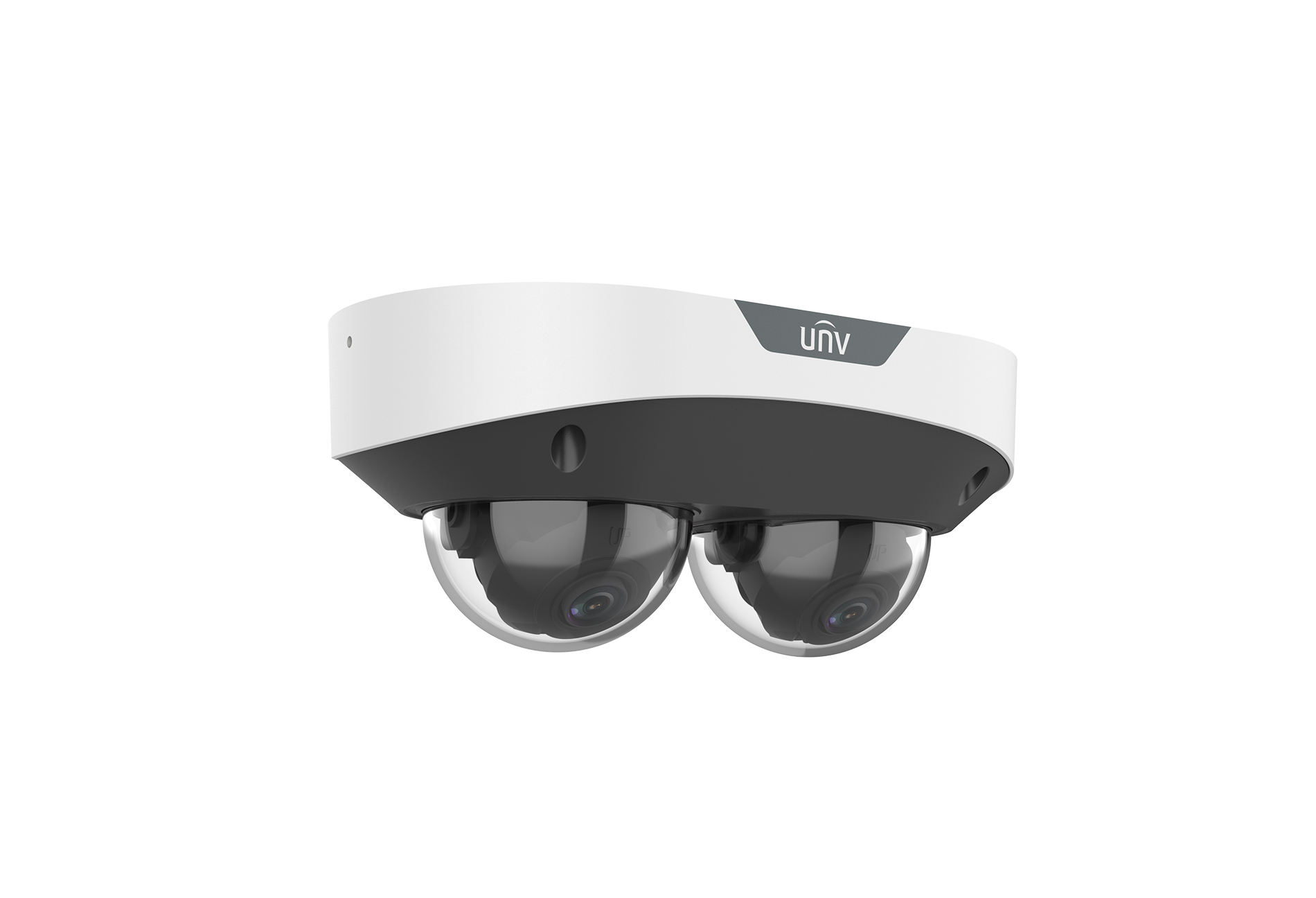

IPC3222SS-ADF40K-I1

2*2MP Double Lens No Stitching Fix WDR IR Dome Network Camera

  • High quality imsage with 2*2MP resolution, 1/2.8″CMOS sensor
  • Single IP with dual channels
  • 2MP (1920*1080)@30/25fps; 720P (1280*720) @30/25fps
  • Ultra 265, H.264,H.265, MJPEG
  • Both channels support smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent face capture
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Auto Scene Match (ASM)（Only WDR）
  • 130dB true WDR technology enables clear image in strong light scene
  • Built-in two Mics
  • Supports 256 GB Micro SD card
  • DC12V or PoE(IEEE 802.3af) power supply
  • IP67 protection and IK10 vandal resistant
  • 3-Axis
icon
Built in Mic
Deep Face Capture
Deep Perimeter
Edge Storage
IK10
Ultra Motion Detection
SKU: 0235C7GS Categories: , , Tag:
Description
Camera
Description
Sensor
1/2.8″, 2.0 megapixel, progressive scan, CMOS
Min. Illumination
Colour: 0.001 lux (F1.6, AGC ON)
0 lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 352°, Tilt: 0° ~ 70°, Rotate: 0° ~ 350°
S/N
WDR
130dB
Lens
Description
Lens type
IPC3222SS-ADF28K-I1:[email protected]
IPC3222SS-ADF40K-I1:[email protected]
Iris
Fxied
Field of View (H)
IPC3222SS-ADF28K-I1:100.15°
IPC3222SS-ADF40K-I1:86.88°
Field of View (V)
IPC3222SS-ADF28K-I1:54.5°
IPC3222SS-ADF40K-I1:44.39°
Field of View (D)
IPC3222SS-ADF28K-I1:104.92°
IPC3222SS-ADF40K-I1:91.76°
Zoom
Fixed
DORI
Description
DORI Distance（Lens）
IPC3222SS-ADF28K-I1:2.8mm
IPC3222SS-ADF40K-I1:4.0mm
DORI Distance（Detect）
IPC3222SS-ADF28K-I1:43.4m(142.3ft)
IPC3222SS-ADF40K-I1:62.1m(203.7ft)
DORI Distance（Observe）
IPC3222SS-ADF28K-I1:17.4m(57.1ft)
IPC3222SS-ADF40K-I1:24.8m(81.4ft)
DORI Distance（Recognize）
IPC3222SS-ADF28K-I1:8.7m(28.5ft)
IPC3222SS-ADF40K-I1:12.4m(40.7ft)
DORI Distance（Identify）
IPC3222SS-ADF28K-I1:4.3m(14.1ft)
IPC3222SS-ADF40K-I1:6.2m(20.3ft)
Illuminator
Description
IR Range
Up to 40m (131ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
Video
Description
Video Compression
Ultra 265;H.265;H.264;MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 2MP (1920*1080), Max 60fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
U-code
Support
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Video stream
Triple streams
Description
White Balance
Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal;Flip Vertical;Flip Horizontal;180°;90°Clockwise;90°Anti-clockwise
Dewarping
N/A
HLC
Support
BLC
Support
Defog
Digital Defog
Image stabilization
N/A
Intelligent
Description
Smart intrusion prevention
Support false alarm filtering:&Cross Line detection&Intrusion detection&Enter Area detection&Leave Area detection
Recognition
Face capture
Statistical Analysis
People counting;support people flow counting and crowd density monitoring
Auto Scene Match (ASM)
Support（Only WDR）
Events
Description
Basic Detection
Motion detection;Ultra motion detection;Tampering alarm;Audio detection
General Function
Watermark;IP Address Filtering;Alarm input;Alarm output;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP Authentication
Audio
Description
Audio Compression
G.711U;G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8KHZ
Storage
Description
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR;NAS(NFS)
Network
Description
Protocols
IPv4;IPv6;IGMP;ICMP;ARP;TCP;UDP;DHCP;PPPoE;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;SMTP;802.1x;SNMP;QoS;SSL/TLS;SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T);API;SDK
User/Host
Up to 32 users. 3 user levels: administrator,common user and operator
Security
Password protection;
Strong password;
HTTPS encryption;
Export operation logs;
Basic and digest authentication for RTSP;
Digest authentication for HTTP;
TLS 1.2;
WSSE and digest authentication for ONVIF
Client
EZLive;EZView;EZStation
Web Browser
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above;Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above
Interface
Description
Audio I/O
1 Input: impedance 35kΩ; amplitude 2V [p-p];1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O
1/1
Serial Port
N/A
Built-in Mic
Built-in two mics
Built-in Speaker
N/A
WIFI
N/A
Network
1 * RJ45 10M/100M Base-TX Ethernet
Video Output
N/A
Certification
Description
EMC
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)
Safety
CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection
IP67 (IEC 60529)
IK10 (IEC 62262)
General
Description
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.2W
Power Interface
Ø 5.5mm coaxial power plug
Dimensions (Ø x H)
Φ176×72mm (6.9” × 2.8”)
Weight
0.62kg(1.37lb)
Material
Metal
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection
4KV
Reset button
Support
Web Client Language
20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
