IPC3232SB-AHDZK-PI-I0 |
||||
|
Camera |
|||||
|
Sensor |
1/2.8″, 2.0 megapixel, progressive scan, CMOS |
||||
|
Min. Illumination |
Colour:0.001 lux (F1.4, AGC ON) |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355° |
||||
|
WDR |
120dB |
||||
|
S/N |
>52dB |
||||
|
Lens |
|||||
|
Lens type |
[email protected], AF automatic focusing and motorized zoom lens |
||||
|
Iris |
P-iris |
||||
|
Field of View (H) |
100.3°~32° |
||||
|
Field of View (V) |
54°~18.3° |
||||
|
Field of View (D) |
130.4°~39.4° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
2.8 |
43.4(142.5ft) |
17.4(57.0ft) |
8.7(28.5ft) |
4.3(14.3ft) |
|
|
12 |
186.2(610.9ft) |
74.5(244.4ft) |
37.2(122.2ft) |
18.6(61.1ft) |
|
|
Illuminator |
|||||
|
IR Range |
Up to 40m (131 ft) IR range |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
|
Frame Rate |
Main Stream: 1080P (1920*1080),Max 60fps; |
||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||
|
ROI |
Up to 8 areas |
||||
|
Video stream |
Triple streams |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
Up to 4 areas per scene |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
Smart IR |
Support |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Intelligent |
|||||
|
Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
||||
|
Recognition |
Face capture |
||||
|
Statistical Analysis |
People counting, support people flow counting and crowd density monitoring |
||||
|
Events |
|||||
|
Basic Detection |
Motion detection, Audio detection, Tampering alarm |
||||
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U, G.711A |
||||
|
Audio Bitrate |
64 Kbps,128kbps |
||||
|
Two-way Audio |
Support |
||||
|
Suppression |
Support |
||||
|
Sampling Rate |
8KHz,16KHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256 GB |
||||
|
Network Storage |
ANR,NAS(NFS) |
||||
|
Network |
|||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
||||
|
Security |
Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
|
Client |
EZStation |
||||
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
||||
|
Interface |
|||||
|
Audio I/O |
1/1 |
||||
|
Alarm I/O |
2/1 |
||||
|
Serial Port |
1 RS485 |
||||
|
Built-in Mic |
Support |
||||
|
Video output |
1 BNC(For debugging) |
||||
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
||||
|
Certification |
|||||
|
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) |
||||
|
Safety |
CE LVD (EN 62368-1:2014+A11:2017) |
||||
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
||||
|
Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
||||
|
General |
|||||
|
Power |
DC12V(±25%), PoE(IEEE 802.3af) |
||||
|
Power consumption: Max 8W |
|||||
|
Power Interface |
Ø 5.5mm coaxial power plug |
||||
|
Dimensions (Ø x H) |
Φ148.0 x 111.4mm (Φ5.8” x 4.4”) |
||||
|
Weight |
0.93kg(2.16lb) |
||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
|
Storage Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
||||
|
Surge protection |
6KV |
||||
|
Reset button |
Support |
||||

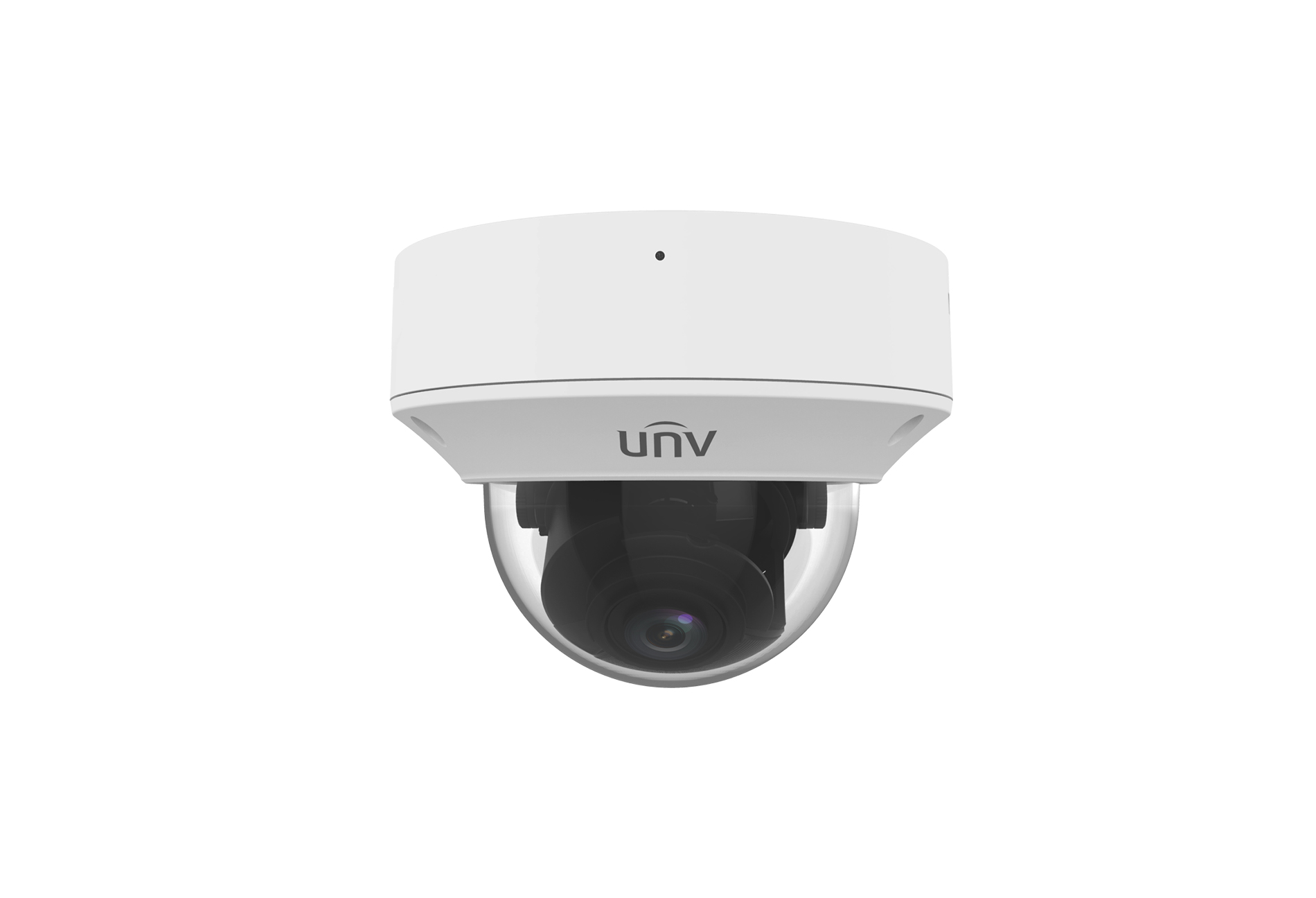

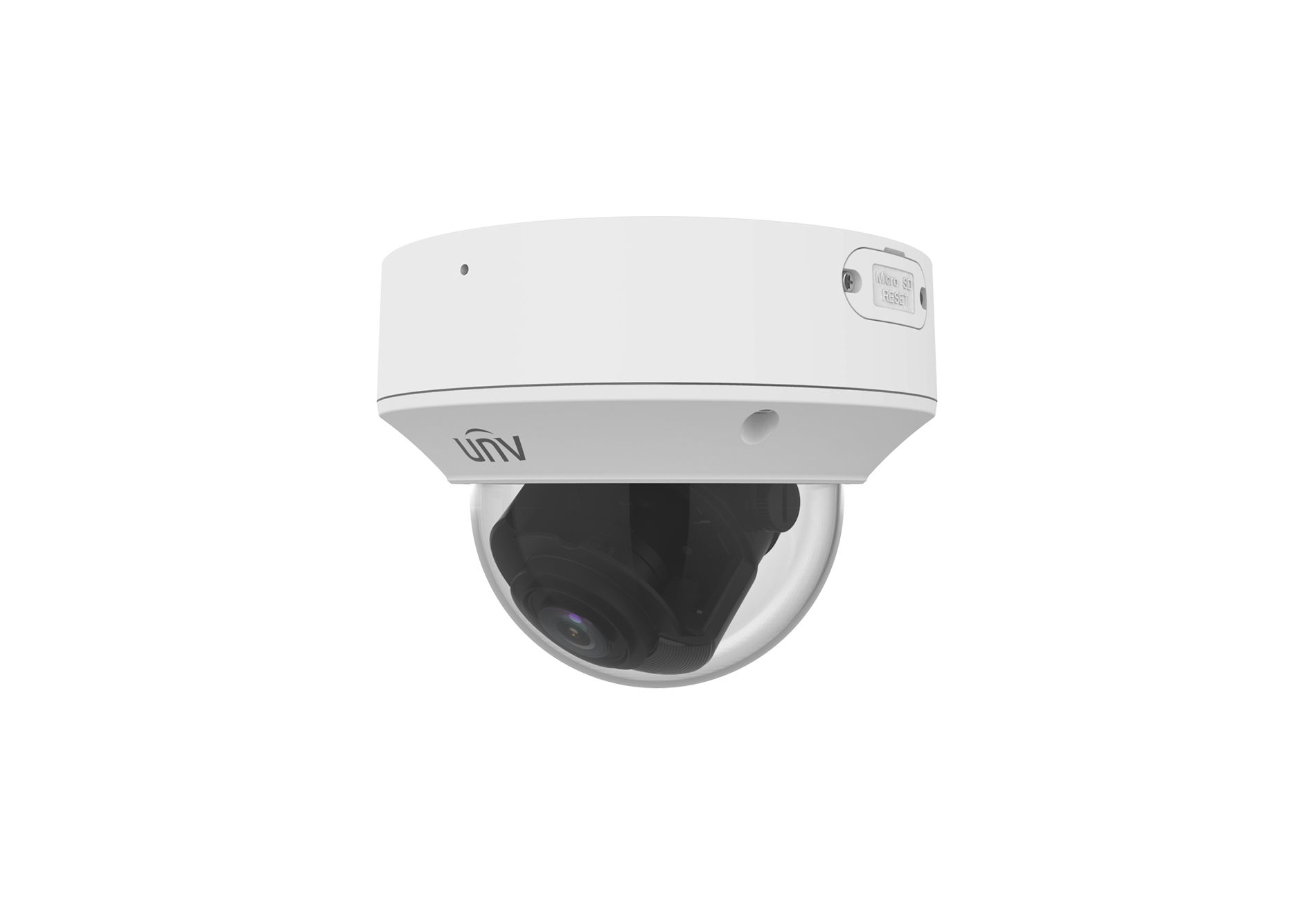

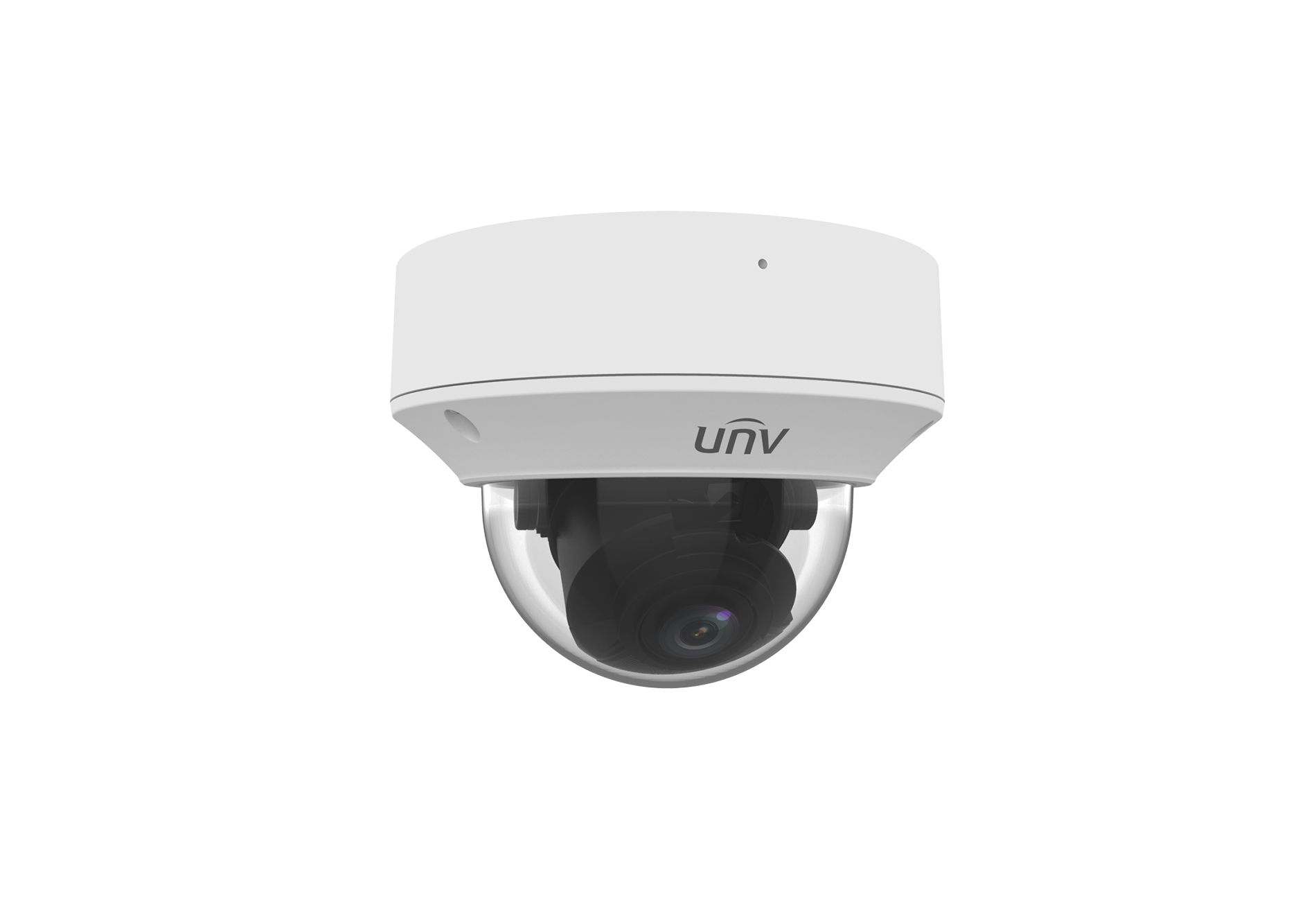

IPC3232SB-AHDZK-PI-I0
2MP WDR LightHunter P-iris VF Network Dome Camera
- High quality image with 2MP,1/2.8’’ CMOS sensor
- 1920*1080@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Face capture, automatic selection of best snapshots, support face detection masked area
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter product technology ensures ultra-high image quality in low illumination environment
- Support 9:16 Corridor Mode
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- DC12V or PoE (IEEE 802.3af) power supply
- Wide voltage range of ±25% in DC
- Audio 1 in and 1 out, Alarm 2 in and 1 out
