Camera |
Description |
|
Resolution
|
4MP
|
|
Sensor
|
1/3.0″CMOS
|
|
Min. Illumination
|
Colour: 0.01 lux (F2.1, AGC ON) 0 lux with IR on |
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Adjustment angle
|
Pan: 3° ~ 360°, Tilt: 0° ~ 68°
|
|
S/N
|
>52dB
|
|
WDR
|
DWDR
|
|
Lens |
Description |
|
Lens type
|
2.8mm
|
|
Iris Type
|
Fixed
|
|
Iris
|
F2.1
|
|
Field of View (H)
|
97.0°
|
|
Field of View (V)
|
52.2°
|
|
Field of View (D)
|
107.5°
|
|
DORI |
Description |
|
DORI Distance（Lens）
|
2.8mm
|
|
DORI Distance（Detect）
|
63.0m(206.7ft)
|
|
DORI Distance（Observe）
|
25.2m(82.7ft)
|
|
DORI Distance（Recognize）
|
12.6m(41.3ft)
|
|
DORI Distance（Identify）
|
6.3m(20.7ft)
|
|
Illuminator |
Description |
|
Illumination Distance(IR)
|
Up to 30m (98ft)
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Video |
Description |
|
Video Compression
|
Ultra 265; H.265; H.264
|
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|
Frame Rate
|
Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), Max 25fps;2MP(1920*1080),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
|
Video Bit Rate
|
128 Kbps~6144 Kbps
|
|
U-code
|
Support(Main stream)
|
|
OSD
|
Up to 4 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 8 areas
|
|
Video stream
|
Dual streams
|
|
Image |
Description |
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°
|
|
Dewarping
|
N/A
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Defog
|
Digital Defog
|
|
Events |
Description |
|
Basic Detection
|
Motion detection;Audio detection;Tampering alarm
|
|
General Function
|
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
|
|
Audio |
Description |
|
Audio Compression
|
G.711U; G.711A
|
|
Audio Bitrate
|
64 Kbps
|
|
Two-way Audio
|
N/A
|
|
Suppression
|
Support
|
|
Sampling Rate
|
8KHZ
|
|
Storage |
Description |
|
Edge Storage
|
Micro SD，up to 128 GB
|
|
Network |
Description |
|
Protocols
|
IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; QoS; SSL/TLS; SMTP; SNMP
|
|
Compatible Integration
|
ONVIF (Profile S, Profile T); API; SDK
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator,common user and operator
|
|
Security
|
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; WSSE and digest authentication for ONVIF
|
|
Client
|
EZStation; EZView; EZLive
|
|
Web Browser
|
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above;Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above
|
|
Interface |
Description |
|
Audio I/O
|
N/A
|
|
Alarm I/O
|
N/A
|
|
Serial Port
|
N/A
|
|
Built-in Mic
|
Support
|
|
Built-in Speaker
|
N/A
|
|
WIFI
|
N/A
|
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
N/A
|
|
Certification |
Description |
|
EMC
|
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety
|
CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
|
|
Protection
|
IP67 (IEC 60529) IK10 (IEC 62262) |
|
General |
Description |
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
Dimensions (Ø x H)
|
Φ118 x 95mm (Φ4.6” x 3.8”)
|
|
Weight
|
0.28kg(0.62lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Storage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge protection
|
4KV
|
|
Reset button
|
N/A
|
|
Web Client Language
|
1 Language English |

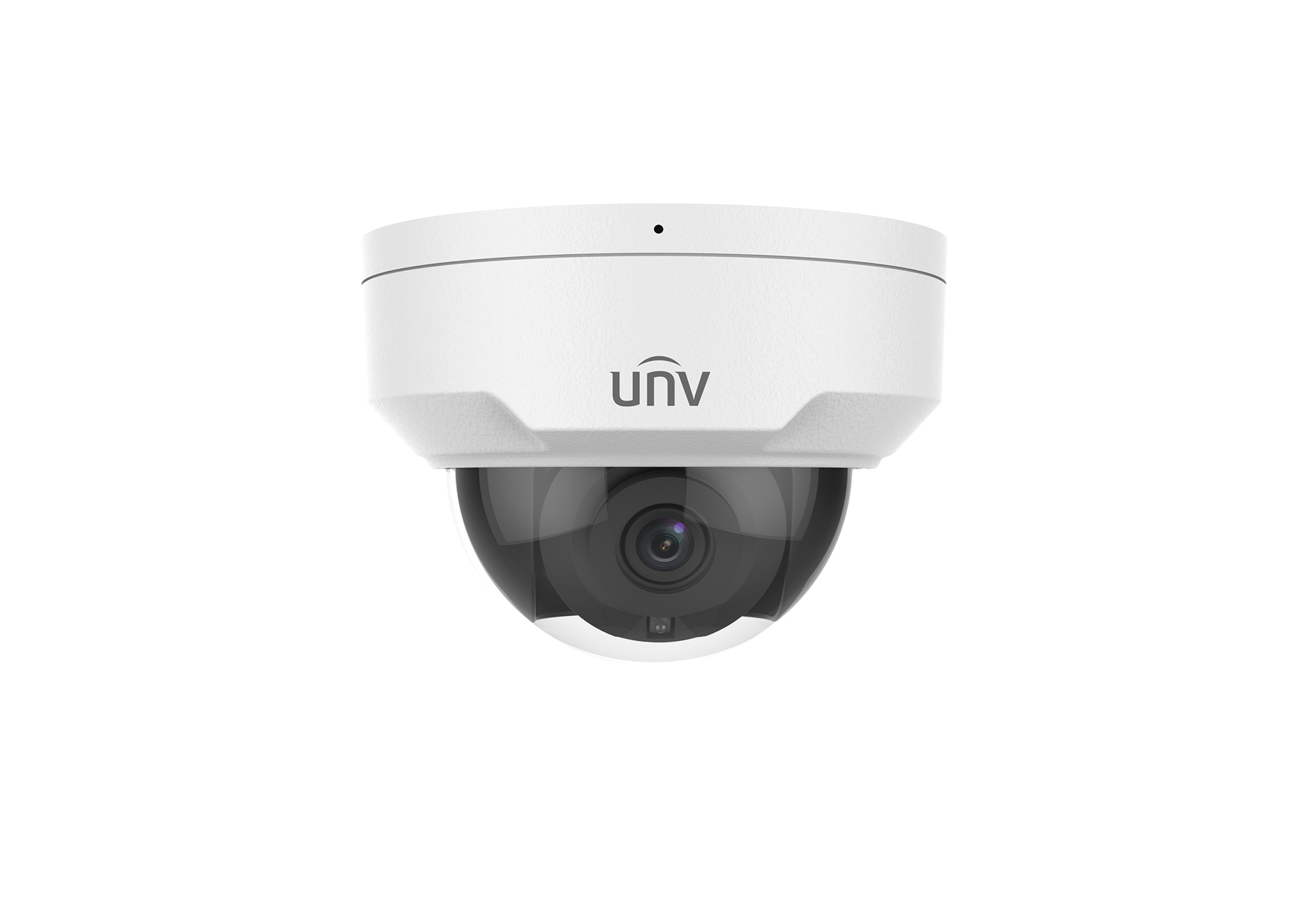

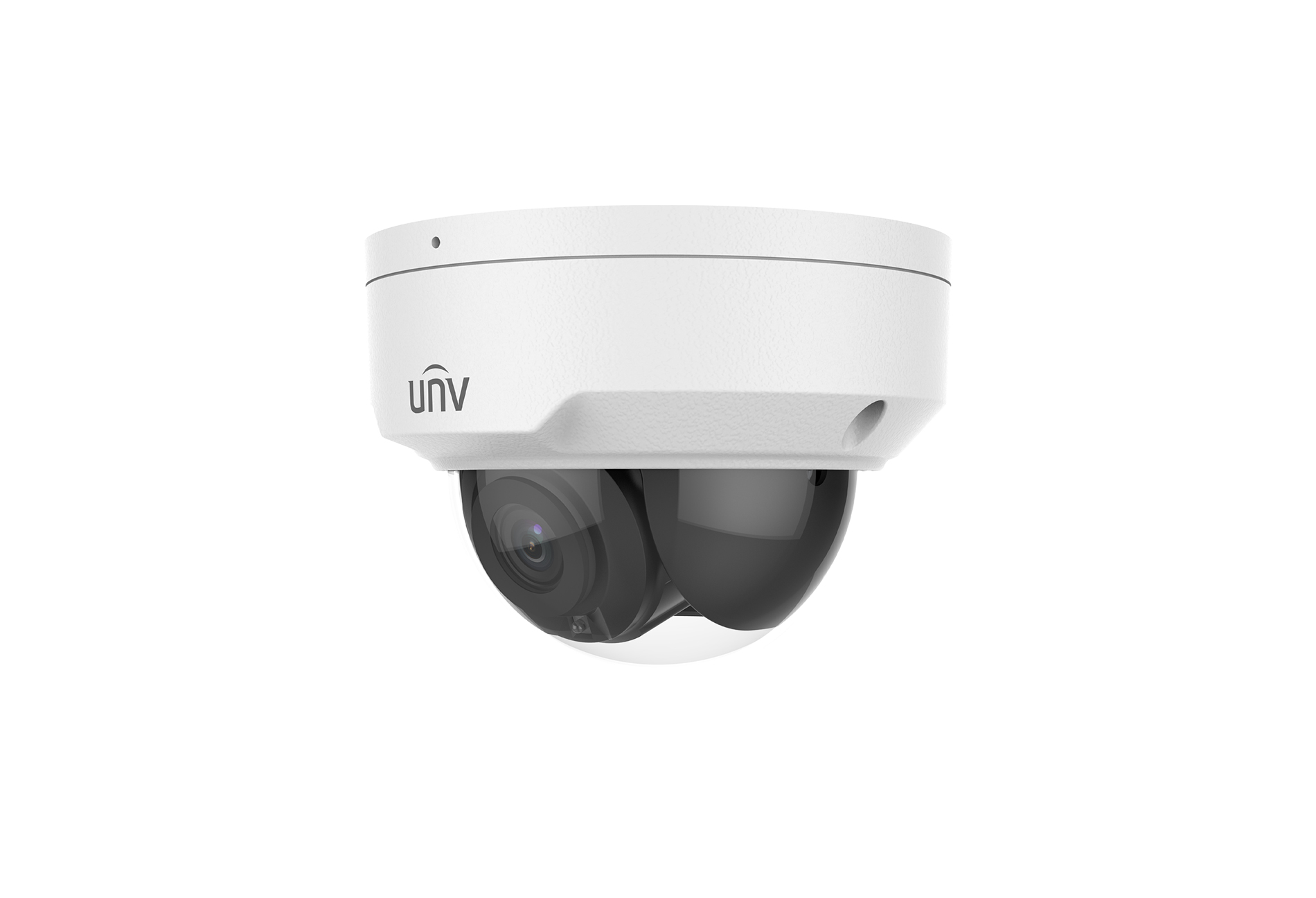

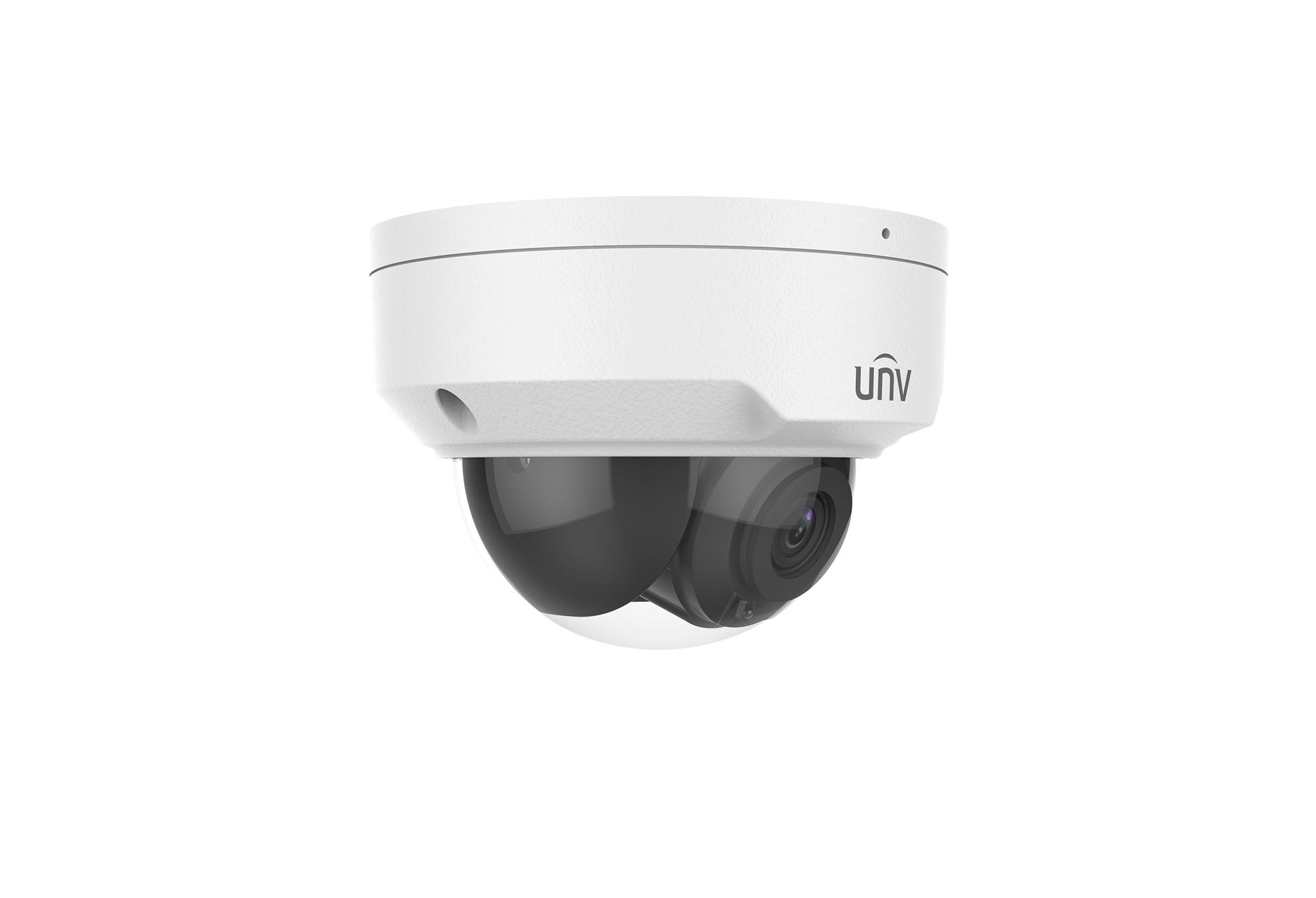

IPC324LB-ASF28K-A
4MP Fixed IR Dome Network Camera
- High quality image with 4MP, 1/3″CMOS sensor
- 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- Support Micro SD card
- IP67 protection
- IK10 vandal resistant
- DC12V or PoE(IEEE 802.3af) power supply
- 2-Axis
