IPC325SS-DF40K-I0

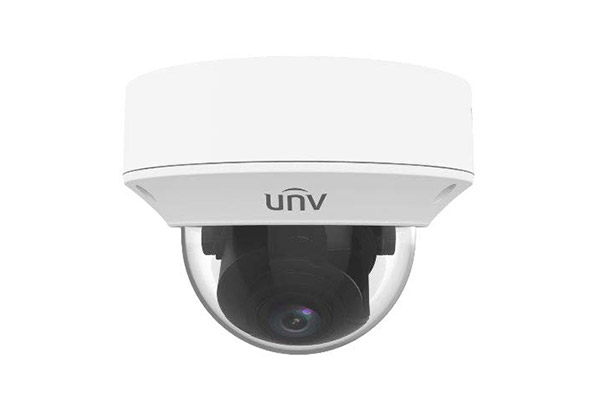

LightHunter Deep Learning Vandal-resistant Dome Network Camera

  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 2592*1944@20fps in the main stream
  • ROI (Region of Interest)
  • ONVIF Conformance
  • DC12V or PoE power supply
  • Wide voltage range of ±25% in DC
  • Micro SD, up to 256 GB
  • Alarm 1 in and 1 out, Audio 1 in and 1 out
  • IP67 ingress protection
  • Smart IR, up to 50m (164 ft) IR distance
  • 1/2.7’’, Powered by lighthunter
  • IK10 vandal resistant
icon
Deep People Counting
LightHunter
PoE
Smart Intrusion Prevention
Smart IR
Ultra H265
wdr
SKU: 0235C4GW Categories: , , Tag:
Description
  IPC325SS-DF28K-I0 IPC325SS-DF40K-I0
Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens [email protected] [email protected]
Iris Fixed
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0(206.7ft) 25.2(82.7ft) 12.6(41.7ft) 6.3(20.7ft)
4.0 90.0(295.3ft) 36.0(118.1ft) 18.0(59.1ft) 9.0(29.5ft)
Field of View (H) 97.7° 79.6°
Field of View (V) 68.5° 56.6°
Field of View (D) 127.1° 97.9°
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0°~355° Tilt: 0°~80° Rotate: 0°~355°
Min. Illumination Colour:0.002lux (F1.6, AGC ON)
0 lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 50m (164 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(8 blacks/8 mosaics)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Exception Detection And Statistics Object Removed, Object Left Behind
Audio
Audio Compression G.711U,G.711A
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZLive
Ezview
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O Audio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General

Power
 		 DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 5W
Dimensions (Ø x H) Φ109 x 81mm(Φ4.3’’ x 3.2’’)
Weight 0.43kg(0.95lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 2KV
