IPC3635SS-ADZK-I1

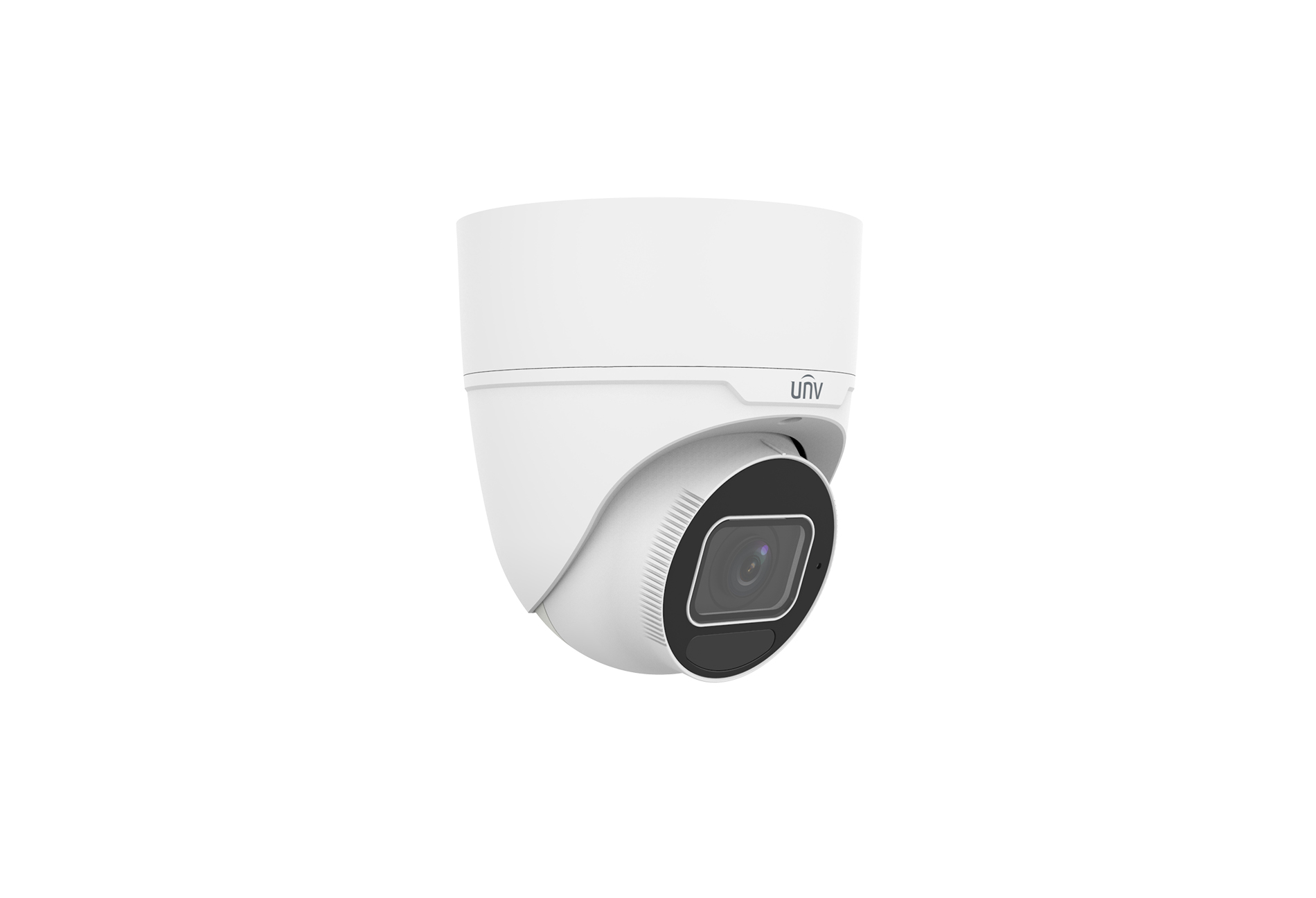

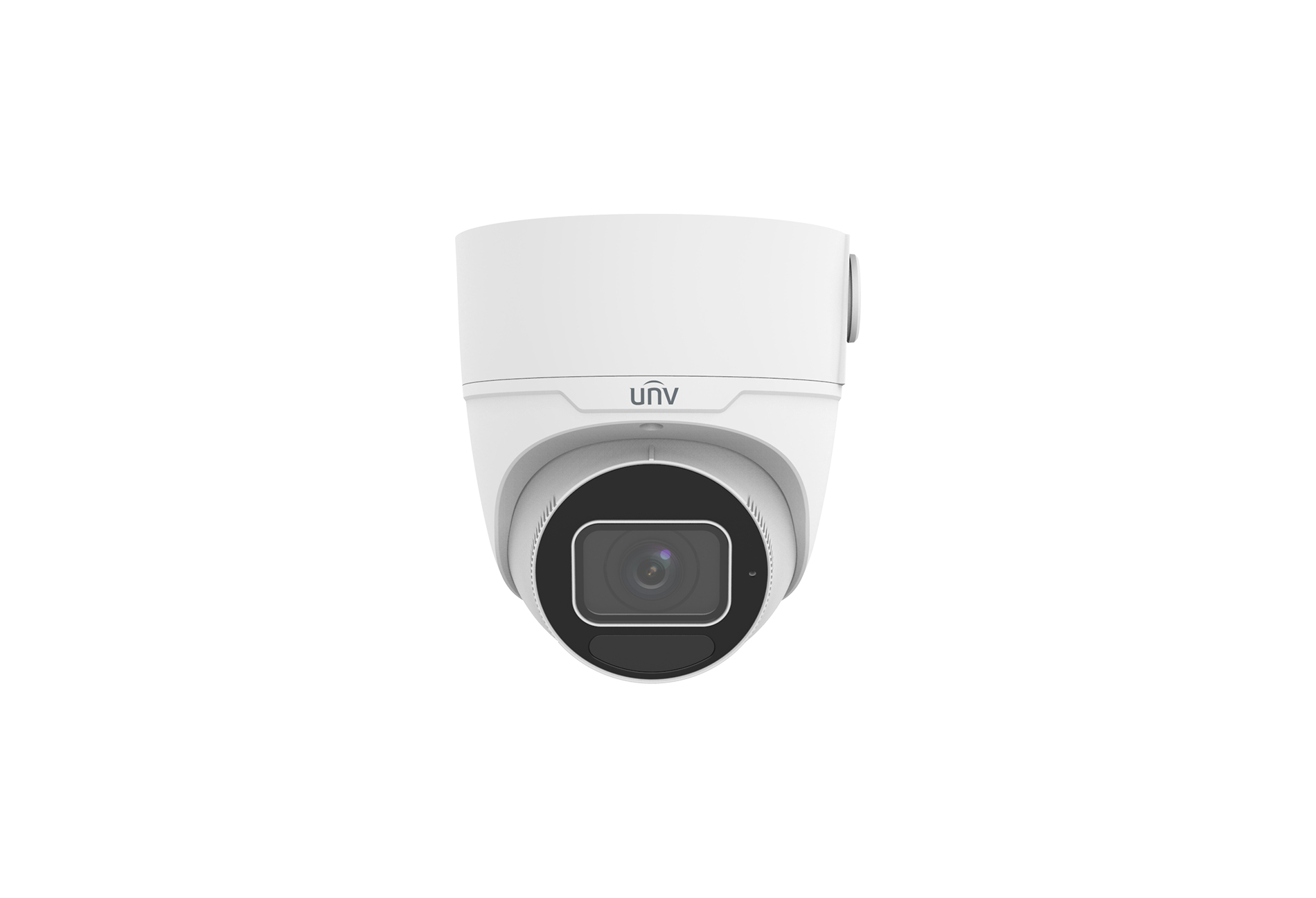

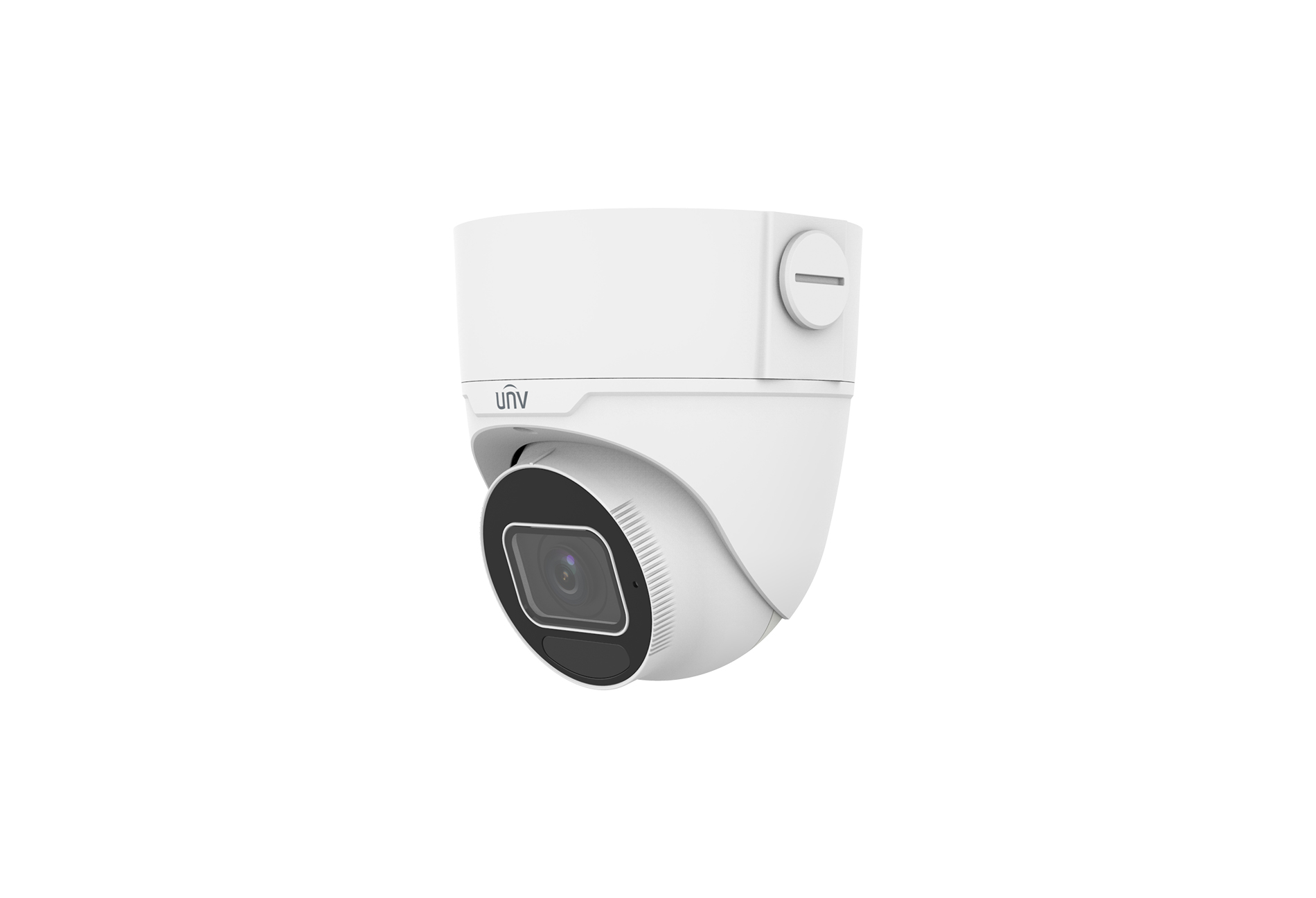

5MP HD Intelligent LightHunter IR VF Eyeball Network Camera

  • High quality image with 5MP, 1/2.7″CMOS sensor
  • 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent face capture
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Auto Scene Match (ASM)（Only WDR）
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 130dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
icon
4MP
Built in Mic
Edge Storage
Face Capture
IP67
LightHunter
Smart Intrusion Prevention
wdr
SKU: 0235C7RK Categories: , , Tag:
Description

Camera

Description

Sensor
1/2.7’CMOS

Min. Illumination

Colour: 0.002 lux (F1.2, AGC ON)
0 lux with IR on

Day/Night
IR-cut filter with auto switch (ICR)

Shutter
Auto/Manual, 1 ~ 1/100000s

Adjustment angle
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°

S/N
>56dB
WDR
130dB

Lens

Description

Lens type
2.7~13.5mm

Iris Type
Fixed

Iris
F1.2

Field of View (H)
106.3°~ 32.5°

Field of View (V)
53.5°~ 18.0°

Field of View (D)
126.0°~ 38.5°

Zoom
Motorized


DORI

Description
DORI Distance（Lens）
2.7mm,13.5mm

DORI Distance（Detect）
60.8m(199ft),303.8m(996.7ft)

DORI Distance（Observe）
24.3m(79.7ft),121.5m(398.6ft)

DORI Distance（Recognize）
12.2m(40ft),60.8m(199.5ft)

DORI Distance（Identify）
6.1m(20ft),30.4m(99.7ft)


Illuminator

Description
IR Range
Up to 40m (131ft)

Wavelength
850nm

IR On/Off Control
Auto/Manual


Video

Description
Video Compression
Ultra 265;H.265;H.264;MJPEG

H.264 code profile
Baseline profile, Main profile, High profile

Frame Rate

Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate
128 Kbps~16 Mbps

U-code
Support

OSD
Up to 8 OSDs

Privacy Mask
Up to 4 areas

ROI
Up to 8 areas

Video stream
Triple streams



Description
Auto Scene Match (ASM)
Support（Only WDR）

White Balance
Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2

Digital noise reduction
2D/3D DNR

Smart IR
Support

Flip
Normal;Flip Vertical;Flip Horizontal;180°;90°Clockwise;90°Anti-clockwise

Dewarping
N/A

HLC
Support

BLC
Support

Defog
Digital Defog


Intelligent

Description
Smart intrusion prevention
Support false alarm filtering:&Cross Line detection&Intrusion detection&Enter Area detection&Leave Area detection

Recognition
Face capture

Statistical Analysis
People counting;support people flow counting and crowd density monitoring


Events

Description
Basic Detection
Motion detection;Ultra motion detection;Tampering alarm;Audio detection

General Function
Watermark;IP Address Filtering;Alarm input;Alarm output;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP Authentication


Audio

Description
Audio Compression
G.711U;G.711A

Audio Bitrate
64 Kbps

Two-way Audio
Support

Suppression
Support

Sampling Rate
8KHZ


Storage

Description
Edge Storage
Micro SD, up to 256 GB

Network Storage
ANR;NAS(NFS)


Network

Description
Protocols
IPv4;IPv6;IGMP;ICMP;ARP;TCP;UDP;DHCP;PPPoE;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;SMTP;802.1x;SNMP;QoS;SSL/TLS;SSH

Compatible Integration
ONVIF (Profile S, Profile G, Profile T);API;SDK

User/Host
Up to 32 users. 3 user levels: administrator,common user and operator

Security

Password protection;
Strong password;
HTTPS encryption;
Export operation logs;
Basic and digest authentication for RTSP;
Digest authentication for HTTP;
TLS 1.2;
WSSE and digest authentication for ONVIF

Client
EZLive;EZView;EZStation

Web Browser
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above;Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above


Interface

Description
Audio I/O
1 Input: impedance 35kΩ; amplitude 2V [p-p];1 Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O
1/1

Serial Port
N/A

Built-in Mic
Support

Built-in Speaker
N/A

WIFI
N/A

Network
1 * RJ45 10M/100M Base-TX Ethernet

Video Output
N/A


Certification

Description
EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection
IP67 (IEC 60529)


General

Description
Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W

Power Interface
Ø 5.5mm coaxial power plug

Dimensions (L x W x H)
Φ132 x 147mm (Ø5.2” x 5.8”)

Weight
0.99kg (2.18lb)

Material
Metal

Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge protection
6KV

Reset button
Support

Web Client Language

20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
