IPC544SE-DK-I0 |
|
Camera |
|
|
Sensor |
1/1.8″, 4.0 megapixel, progressive scan, CMOS |
|
Min. Illumination |
Colour:0.0005lux (F1.2, AGC ON) |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
WDR |
120dB |
|
S/N |
>56dB |
|
ABF |
N/A |
|
Lens |
|
|
Lens Mount |
C/CS |
|
Iris |
DC-Iris/P-Iris, DC 5V (4 Pins) |
|
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: 4MP (2688*1520),Max 30fps; |
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
ROI |
Up to 8 areas |
|
Video stream |
Triple streams |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital noise reduction |
2D/3D DNR |
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90° Clockwise/90° Anti-clockwise |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital Defog |
|
Intelligent |
|
|
Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
|
Face capture |
Support |
|
People counting |
Support people flow counting and crowd density monitoring |
|
Exception Detection And Statistics |
Object Removed, Object Left Behind, Scene Change |
|
Events |
|
|
Basic Detection |
Motion detection, Audio detection, Tampering alarm |
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Audio |
|
|
Audio Compression |
G.711U, G.711A |
|
Audio Bitrate |
64 Kbps |
|
Suppression |
Support |
|
Sampling Rate |
8k Hz,16k Hz |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR,NAS(NFS) |
|
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
|
Security |
Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Client |
EZStation |
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
|
Interface |
|
|
Audio I/O |
1/1 |
|
Alarm I/O |
2/1 |
|
Serial Port |
1 RS485 |
|
Built-in Mic |
N/A |
|
Built-in Speaker |
N/A |
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
1 BNC |
|
Certification |
|
|
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) |
|
Safety |
CE LVD (EN 62368-1:2014+A11:2017) |
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
N/A |
|
General |
|
|
Power |
DC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af) |
|
Power consumption: Max 8W |
|
|
Power Interface |
Two-core terminal block |
|
Dimensions (L x W x H) |
152 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
|
Weight |
0.38kg (0.84lb) |
|
Working Environment |
-20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|
Reset button |
Support |

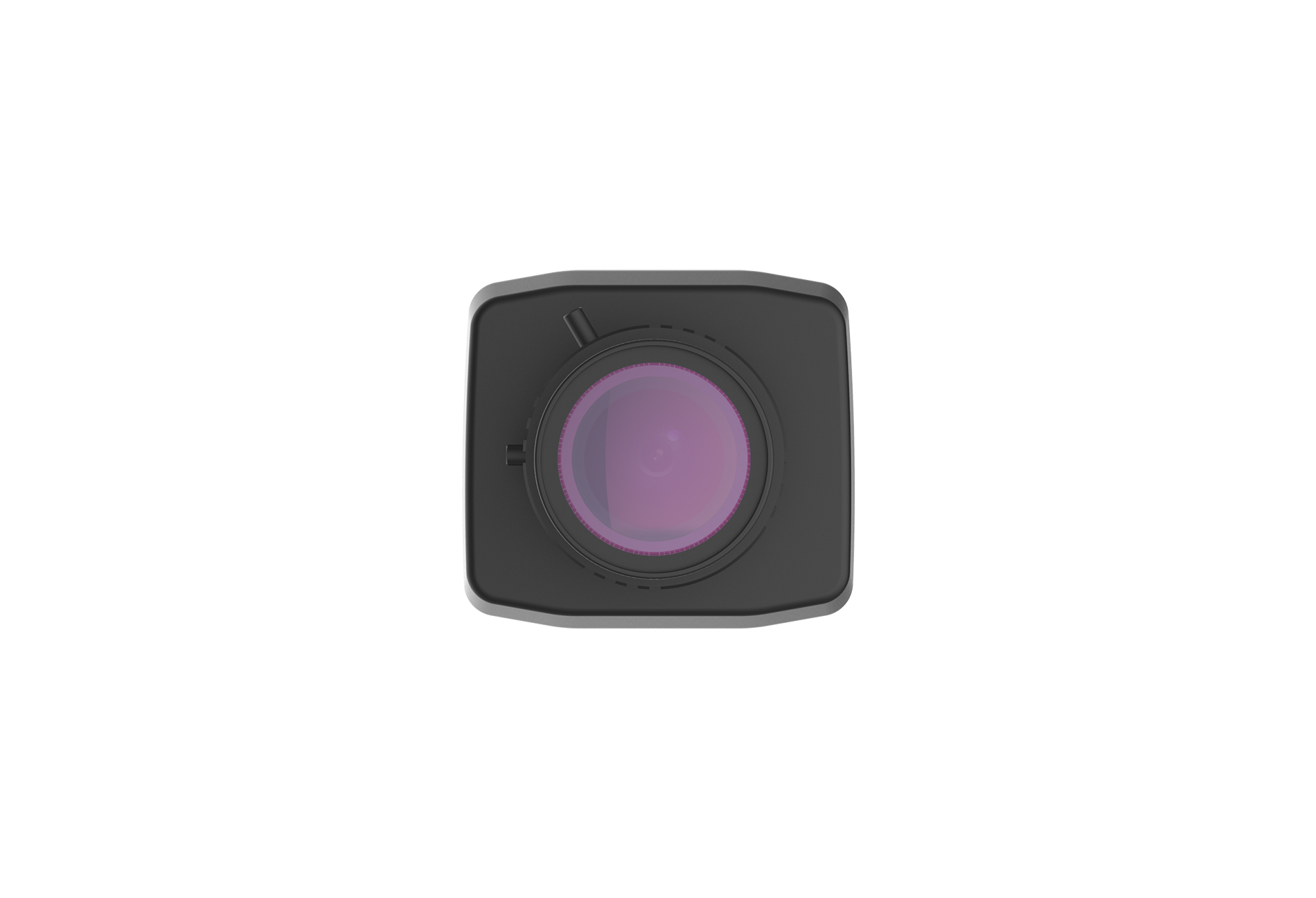

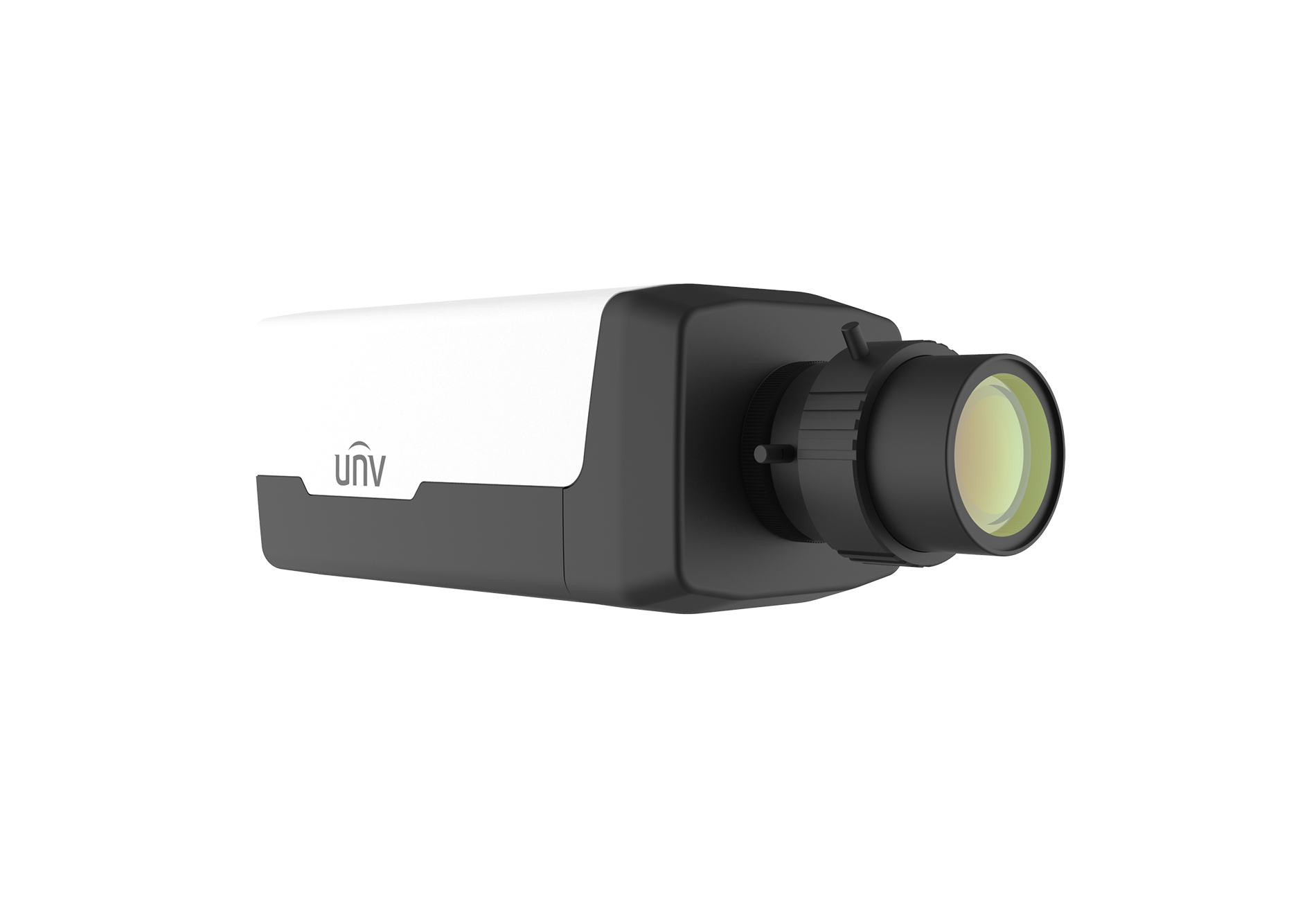

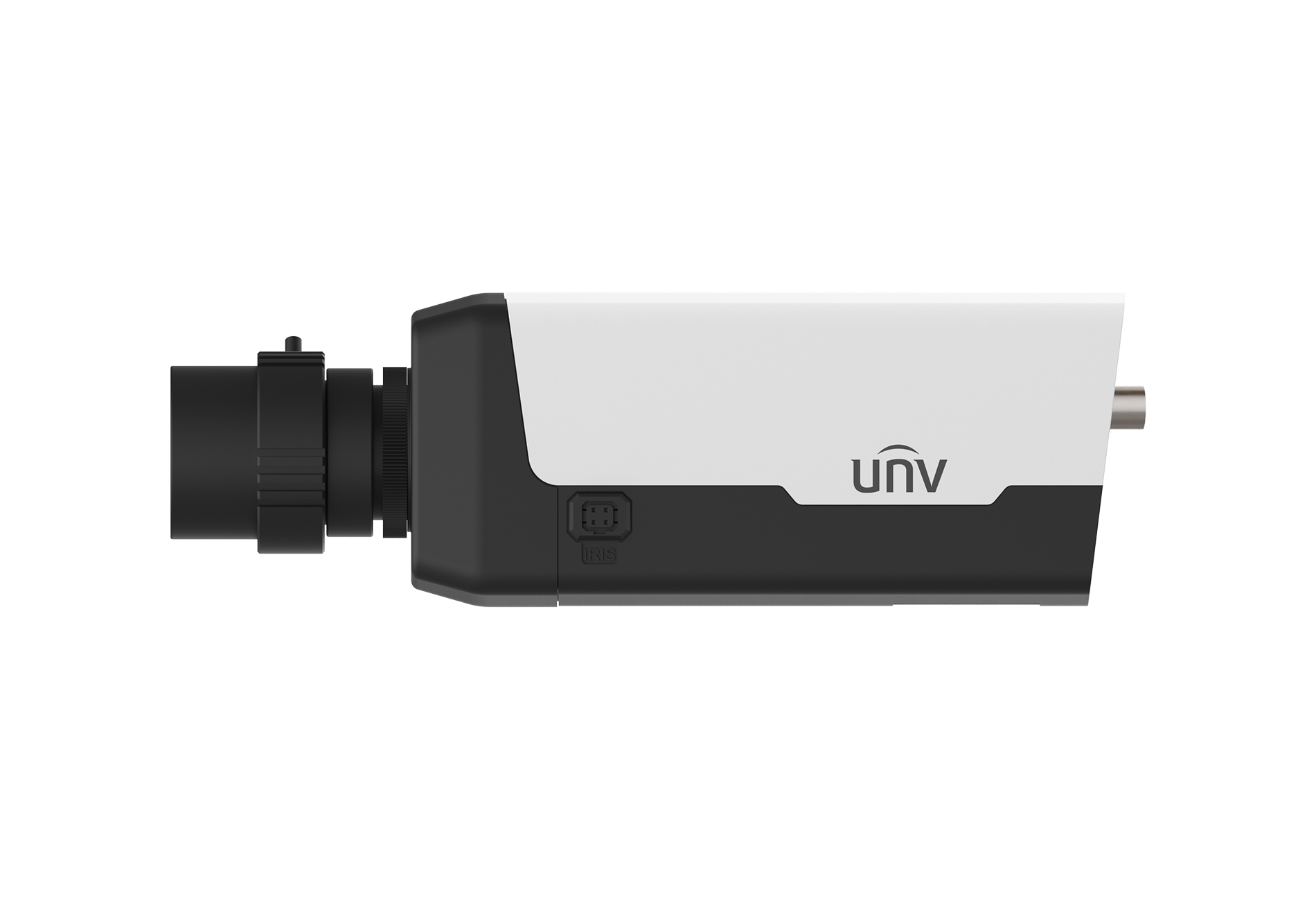

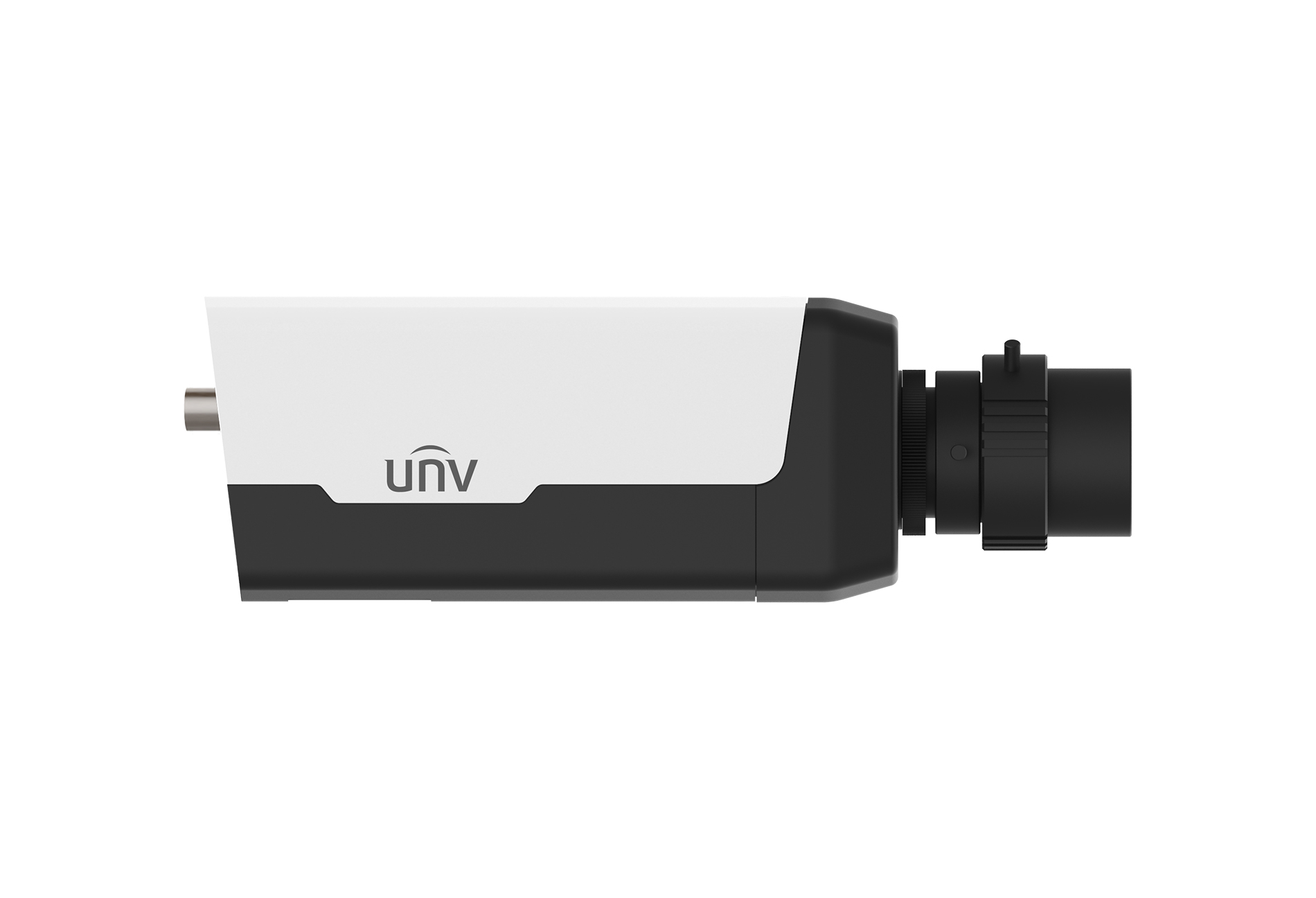

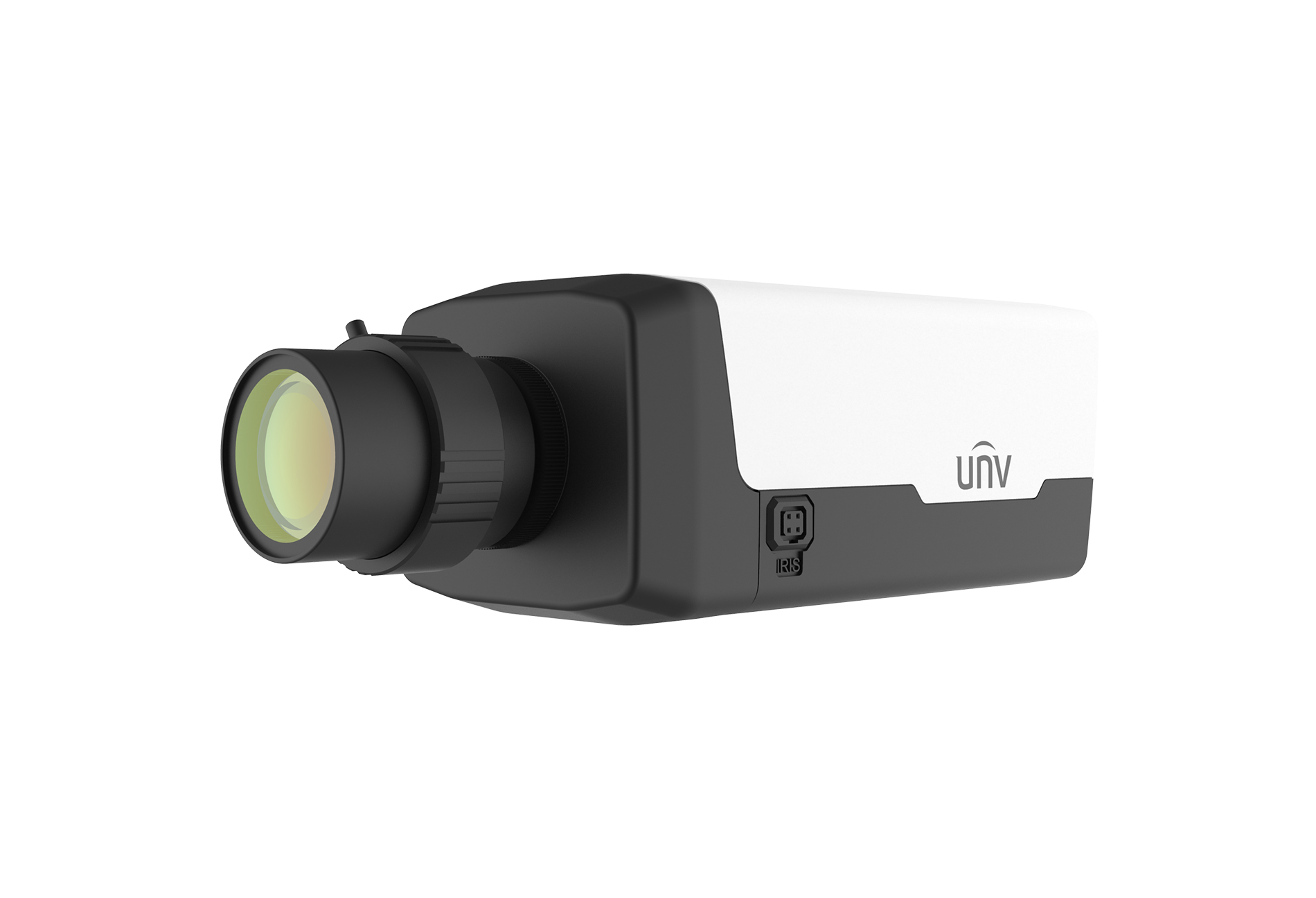

IPC544SE-DK-I0
4MP LightHunter WDR Network Box Camera
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Face capture, automatic selection of best snapshots
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- DC12V or AC24V or PoE (IEEE 802.3af) power supply
- Wide voltage range of ±25%
- Audio 1 in and 1 out, Alarm 2 in and 1 out
