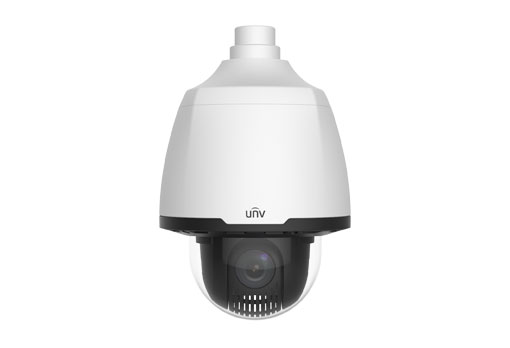

IPC6634S-X33-VF

4MP 33X Lighthunter Network PTZ Dome Camera

  • High quality image with 4MP,1/2.8’’ CMOS sensor
  • 2688*1520@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • 33X Optical Zoom
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • AC 24V ±25%, DC 24V±25%,PoE+(IEEE802.3 at)
  • Alarm 7 in and 2 out, Audio 1 in and 1 out
  • IP67 ingress protection
  • IK10 vandal resistant
icon
Edge Storage
IK10
IP67
LightHunter
Patrol
wdr
SKU: 0235C5MA Categories: , Tag:
Description
IPC6634S-X33-VF
Camera
Sensor 1/2.8″, 4.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.003Lux (F1.5, AGC ON)
BW: 0.001Lux (F1.5, AGC ON)
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 33
Iris Auto; F1.5 ~ F4.0
Angle of View (H) 53.0° ~ 2.3°
Angle of View (V) 40.5° ~ 1.7°
Angle of View (O) 65.2° ~ 2.7°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.5 105.8(346.9ft) 42.3(138.8ft) 21.2(69.4ft) 10.6(34.7ft)
148.5 3172.5(10408.5ft) 1269.0(4163.4ft) 634.5(2081.7ft) 317.3(1040.8ft)
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Tripe streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EIC N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Auto Tracking Support
Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 2°/s ~ 200°/s
Preset speed: 400°/s
Tilt Range 1° ~ 90°
Tilt Speed 2°/s ~ 200°/s
Preset speed: 240°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze Support
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 7/2
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
WIFI N/A
Network 1*10M/100M Base-TX Ethernet
Video output 1 BNC
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 60950-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power AC 24V ±25%, DC 24V±25%,PoE+(IEEE802.3 at)
Power consumption: Max 16W
Power Interface Wires with cold-pressed terminal
Dimensions (Ø x H) Φ218 x 297mm (Φ8.6” x 11.7”)
Weight 4.07kg(8.97lb)
Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Reset Button Support
Protection Ingress Protection: IP67
Vandal Resistant: IK10
