IPC815SB-ADF14K-I0

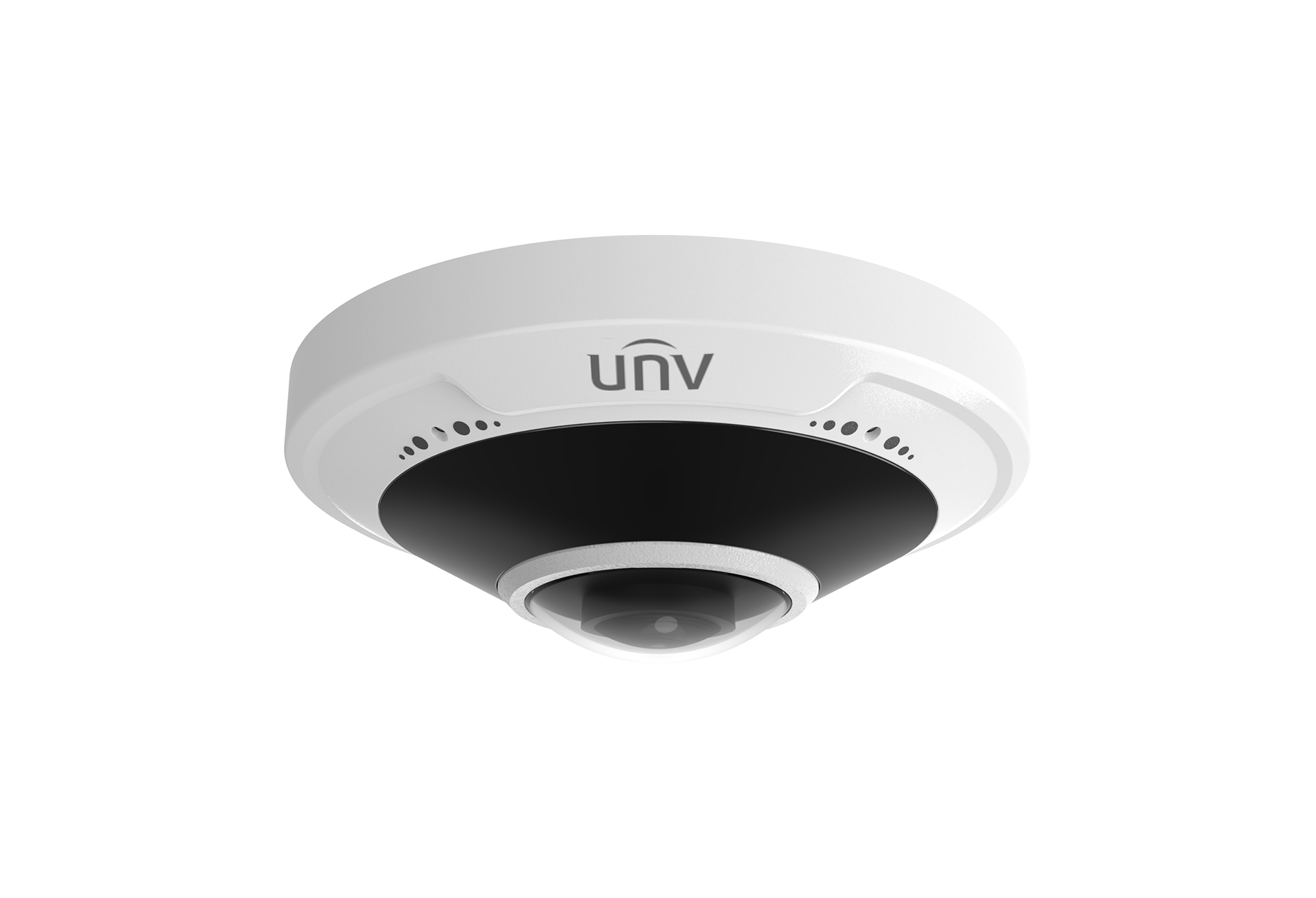

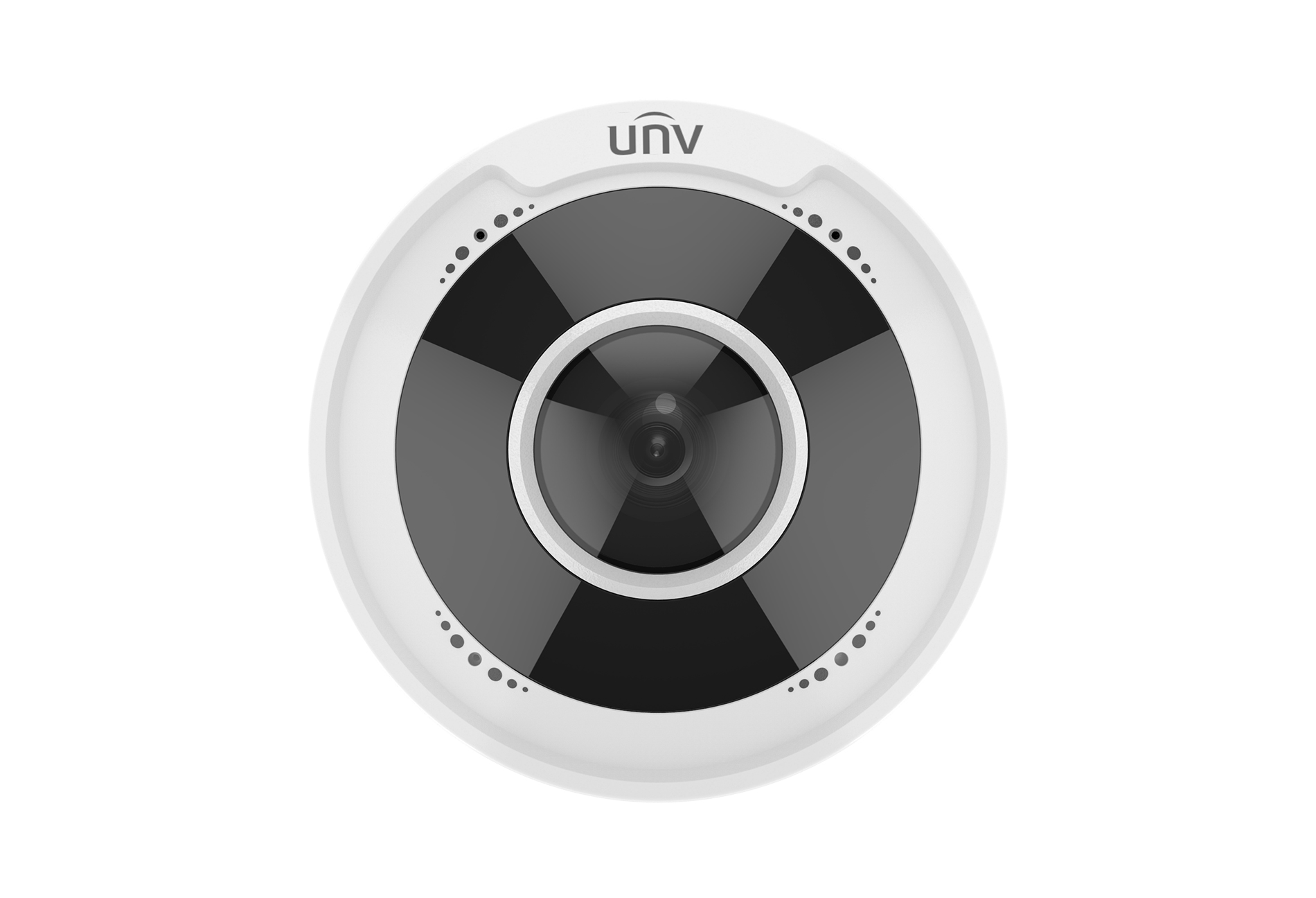

5MP Fisheye Fixed Dome Network Camera

  • High quality image with 5MP, 1/2.8″CMOS sensor
  • 5MP (2592*1944):@ 30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Built-in 2 Mic, Supports the detection of sounds over longer distances
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Smart IR, up to 10m (33ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP66 protection
  • Support PoE power supply
icon
5MP
Edge Storage
Fisheye
IK10
Onvif
PoE
Smart IR
Ultra H265
wdr
SKU: 0235C5GA Categories: , , Tag:
Description
IPC815SB-ADF14K-I0
Camera
Image sensor 1/2.8″, progressive scan, 5.0 megapixel, CMOS
Minimum Illumination Colour: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR
Day/Night IR-cut filter for day & night function
Shutter Auto/Manual, shutter time: 1~1/100000 s
WDR 120dB
S/N >55dB
Lens
Lens type [email protected]
Angle of View 360°
DORI
DORI Distance Lens Detect (m) Observe (m) Recognize (m) Identify (m)
1.4mm 31.5 12.6 6.3 3.2
Illuminator
IR Range UP to 10m (33ft)
wavelength 850nm
IR On/Off Control Auto/Manual
Video
Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 5MP (2592*1944): Max.30fps;
Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
