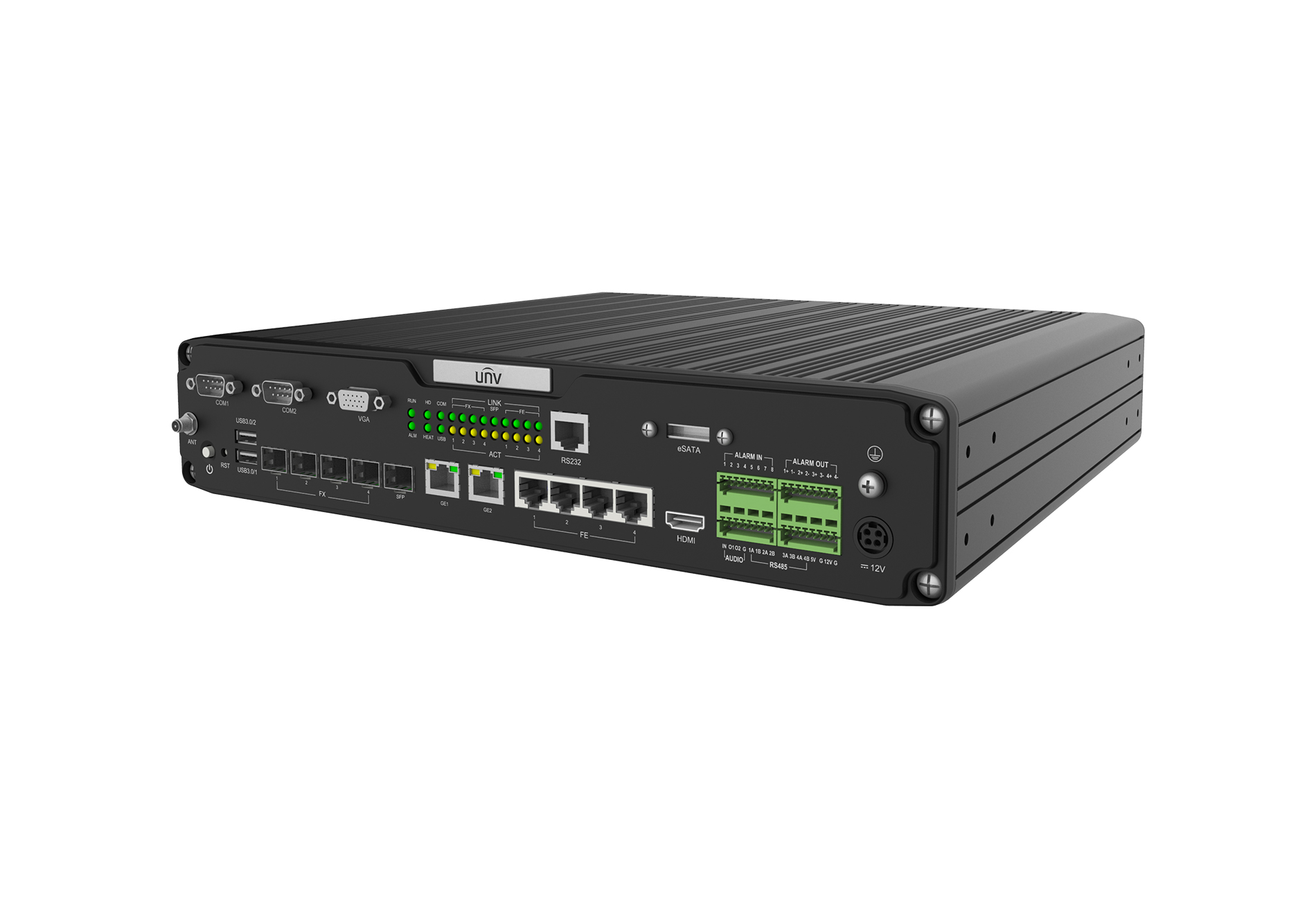

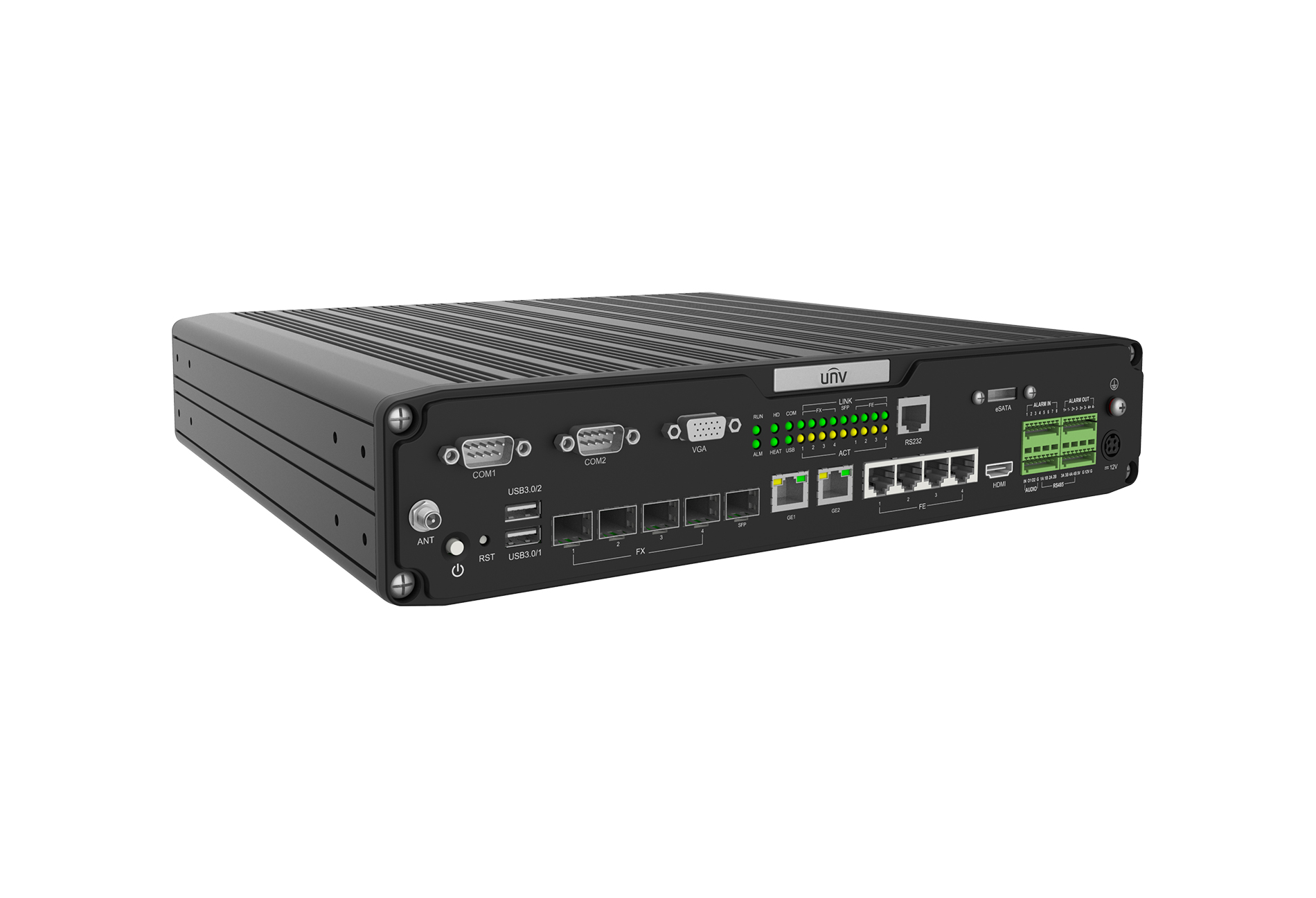

ISC2500-SCT-G-OS

16-Channel Terminal Recording Host

ISC2500-SCT-G-OS is a new generation of outdoor terminal for intelligent transportation, which integrates video management, data management, iSCSI storage, video decoding, image processing, network switching and other functions. It can work independently, or network with platforms to form a more powerful security surveillance system.


Features

  • Embedded Linux OS ensures 24/7 stable operation and prevents hackers and viruses.
  • Dual NICs.
  • Equipped with 6 Ethernet electrical ports and 5 Ethernet optical ports.
  • Compatible with video of multiple resolutions including CIF, D1, 720P, 1080P, 2K, 4K, etc.
  • Comprehensive video processing functions, supports decoding video in H.265, H.264 and other mainstream formats.
  • Image OSDs including license plate, lane, time, location, etc.
  • Image composition.
  • iSCSI direct block storage, supports video retrieval and playback in seconds.
  • Supports image storage, retrieval, view, export, upload, etc.
  • Supports receiving data via serial ports.
  • Supports S.M.A.R.T. test.
  • Supports alarm input and linkage.
  • Die-cast aluminum casing with modern design effectively shields electromagnetic interference to ensure stable and reliable operation.
SKU: 0235C72E Categories: ,
Description
Device
Description
Video compression
H.265/H.264
Camera support
1 to 16
Image composition
Supports composition of 2/3/4/6 images
Image operations
Supports image storage, retrieval, view, export, and upload
Image OSD
Supports text overlays including license plate, lane, time, location, etc.
HDD
4 × 3.5’’ SATA slot
Interface
Description
Network
Dual NICs, supports network isolation and interconnection
2 × 1000M self-adaptive Ethernet electrical port, 4 × 100M Ethernet electrical port;
1 × 1000M Ethernet optical port, 4 × 100M Ethernet optical port
USB
2 × USB3.0 (compatible with USB2.0)
Serial port
3 × RS-232, 4 × RS-485
Alarm input
8 × alarm input interface (Phoenix terminal)
Alarm output
4 × alarm output interface (Phoenix terminal)
Power output
DC12V, 500mA
Power input
DC12V, 10A
Hardware
Description
Power consumption
≤ 20W (without HDD, with heating off)
≤ 105W (full-load 4T HDDs, with heating on)
Operating temperature
-30°C to 70°C
Operating humidity
5% to 95% RH, non-condensing
Weight
Without HDD < 7kg
Full-load HDDs < 9.5kg
Dimensions
350mm(W) × 320mm(D) × 70mm(H)
