Model |
NSW2010-5GT-POE-IN |
NSW2010-10GT-POE-IN |
|
Ports |
4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45) |
8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
|
|
Switching capacity |
10Gbps |
20Gbps |
|
Forwarding performance |
7.44Mpps |
14.88Mpps |
|
Packet Buffer |
1M bit |
2Mbit |
|
MAC |
2K |
2K |
|
Dimensions (W×D×H) |
140mm x 76.7mm x 27.7mm |
220mm x 150mm x 44mm |
|
Weight |
<1kg |
<1.24kg |
|
Input Voltage |
AC: 100-240V, 50/60Hz |
|
|
MAX. Power |
65W |
130W |
|
PoE |
802.3at/af |
|
|
Max. PoE Power |
Max capacity: 60W |
Max capacity: 120W |
|
Cooling Fans |
0 |
1 |
|
Operating Temperature |
0°C ~ 40 °C |
|
|
Storage Temperature |
-40 °C ~ 70 °C |
|
|
Operating Humidity |
10% ~ 90% non-condensing |
|
|
Storage Humidity |
5% ~ 90% non-condensing |
|
|
Indicator |
PWR(Green), LNK/ACT(Green), PoE(Orange) |
|
|
Working Mode |
No |
Default(Normal mode) : All ports can communicate with each other. |

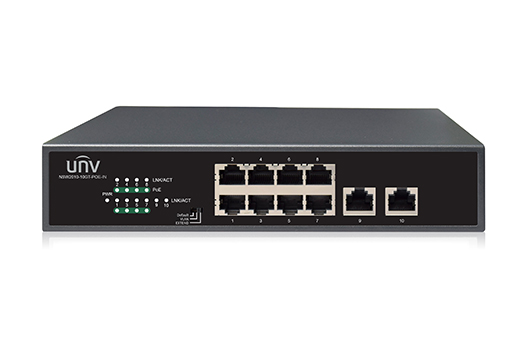

NSW2010-10GT-POE-IN
8×1G PoE+2×1G
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
- Supports PoE Power up to 30W for each PoE port;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Line-speed forwarding, intelligent identification;
- Supports storage – and- forward for Data exchange.
