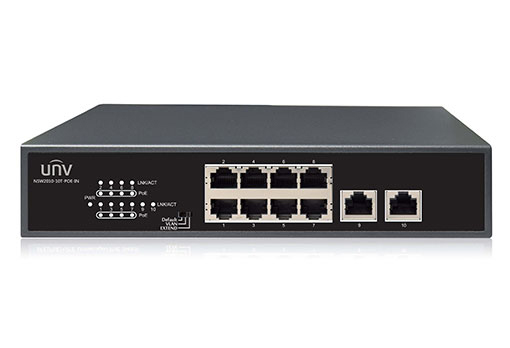

NSW2010-10T-POE-IN

8PoE+2Port Switch

  • Multiple working modes to address your business needs:Normal, Secure and Surveillance
  • Support port traffic control
  • Support for secure mode, all downlink ports can communicate only with uplink ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization
  • All metal housing, safe and reliable
SKU: 9801C16F Categories: ,
Description
Model NSW2010-6T-POE-IN NSW2010-10T-POE-IN NSW2010-16T2GC-POE-IN NSW2010-24T2GC-POE-IN
Ports 6×100Mbps network ports (RJ45),including 4 PoE ports 10×100Mbps network ports (RJ45),including 8 PoE ports 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports 24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,
IEEE802.3af,IEEE802.3at		 IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,
IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity 1.2Gbps 2Gbps 7.2Gbps 8.8Gbps
Forwarding performance 0.90Mpps 1.49Mpps 5.36Mpps 6.55Mpps
Packet Buffer 768Kbit 1.625Mbit 4M bit 4Mbit
MAC 2K 4K 16K 16K
Dimensions (W×D×H) 160mm x 93mm x 32mm
(6.3″×3.7″×1.3″) 		220mm x 150mm x 44mm(8.7″×5.9″×1.7″) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″)
Weight <0.6kg <1.22kg <4.2kg <4.2kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Max capacity: 65W
Max capacity for single port: 30W		 Max capacity: 120W
Max capacity for single port: 30W		 Max capacity: 250W
Max capacity for single port: 30W		 Max capacity: 370W
Max capacity for single port: 30W
Cooling Fans 0 0 2 2
Mean Time Between Failure (MTBF) >50000 hours
Ambient temperature 0°C-45°C (32°F-113°F)
Operating humidity 10%～90% (noncondensing)
Storage humidity 5%～90% (noncondensing)
Indicator PWR:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.		 Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
