Model |
NSW2010-18GT2GP-POE-IN |
NSW2010-26GT2GC-POE-IN |
|
Ports |
16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP） |
24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（Combo） |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az |
|
|
Switching capacity |
40Gbps |
56Gbps |
|
Forwarding performance |
29.76Mpps |
41.7Mpps |
|
Packet Buffer |
4M bit |
4Mbit |
|
MAC |
8K |
8K |
|
Dimensions (W×D×H) |
280mm x 180mm x 44mm |
440mm x 207mm x 44mm |
|
Weight |
<4.2kg |
<5kg |
|
Input Voltage |
AC: 100-240V, 50/60Hz | |
|
MAX. Power |
200W |
400W |
|
PoE |
802.3at/af | |
|
Max. PoE Power |
Max capacity: 185W |
Max capacity: 370W |
|
Cooling Fans |
1 |
2 |
|
Operating Temperature |
0°C ~ 40 °C | |
|
Storage Temperature |
-40 °C ~ 70 °C | |
|
Operating Humidity |
10% ~ 90% non-condensing | |
|
Storage Humidity |
5% ~ 90% non-condensing | |
|
Indicator |
PWR(Green), LNK/ACT(Green), PoE(Orange) | |
|
Working Mode |
Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
|

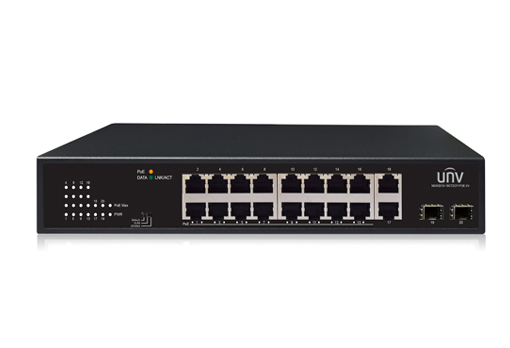

NSW2010-18GT2GP-POE-IN
16×1G PoE+2×1G+2x1G SFP
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
- Supports PoE Power up to 30W for each PoE port;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Line-speed forwarding, intelligent identification;
- Supports storage – and- forward for Data exchange.
