| Model | NSW5110-24GT4GP-IN |
| Ports | 24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x |
| Switching capacity | 56Gbps |
| Forwarding performance | 41.66Mpps |
| Packet Buffer | 4Mbit |
| MAC | 8K |
| Dimensions (W×D×H) | 440*208*44mm |
| Weight | 3.6<kg |
| Power supply | AC: 100-240V, 50/60Hz |
| Mean Time Between Failure (MTBF) | >50000 hours |
| Ambient temperature | 0°C-45°C (32°F-113°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicatorlight | PWR: Death: switch does not power on Permanent: the switch is powered on |
| LINK/ACT: Death: not connected to the network equipment Green light: connected to 1000Mbps devices Blinking:connected devices are data transmission |
|
| System: Blinking: the system works Out: the system is starting or has nopower |

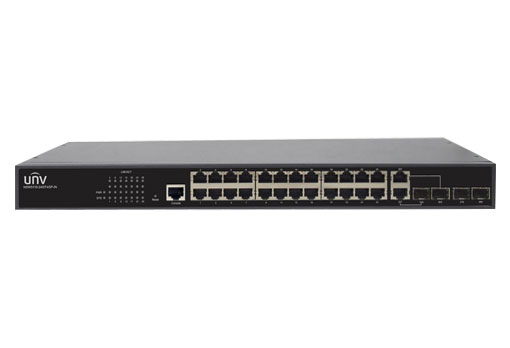

NSW5110-24GT4GP-IN
24×1000Mbps ports + 2×1000Mbps Fiber ports+2G Combo ports
- Support RJ45 Auto-MDI/MDIX;
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
- Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
- Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Description
