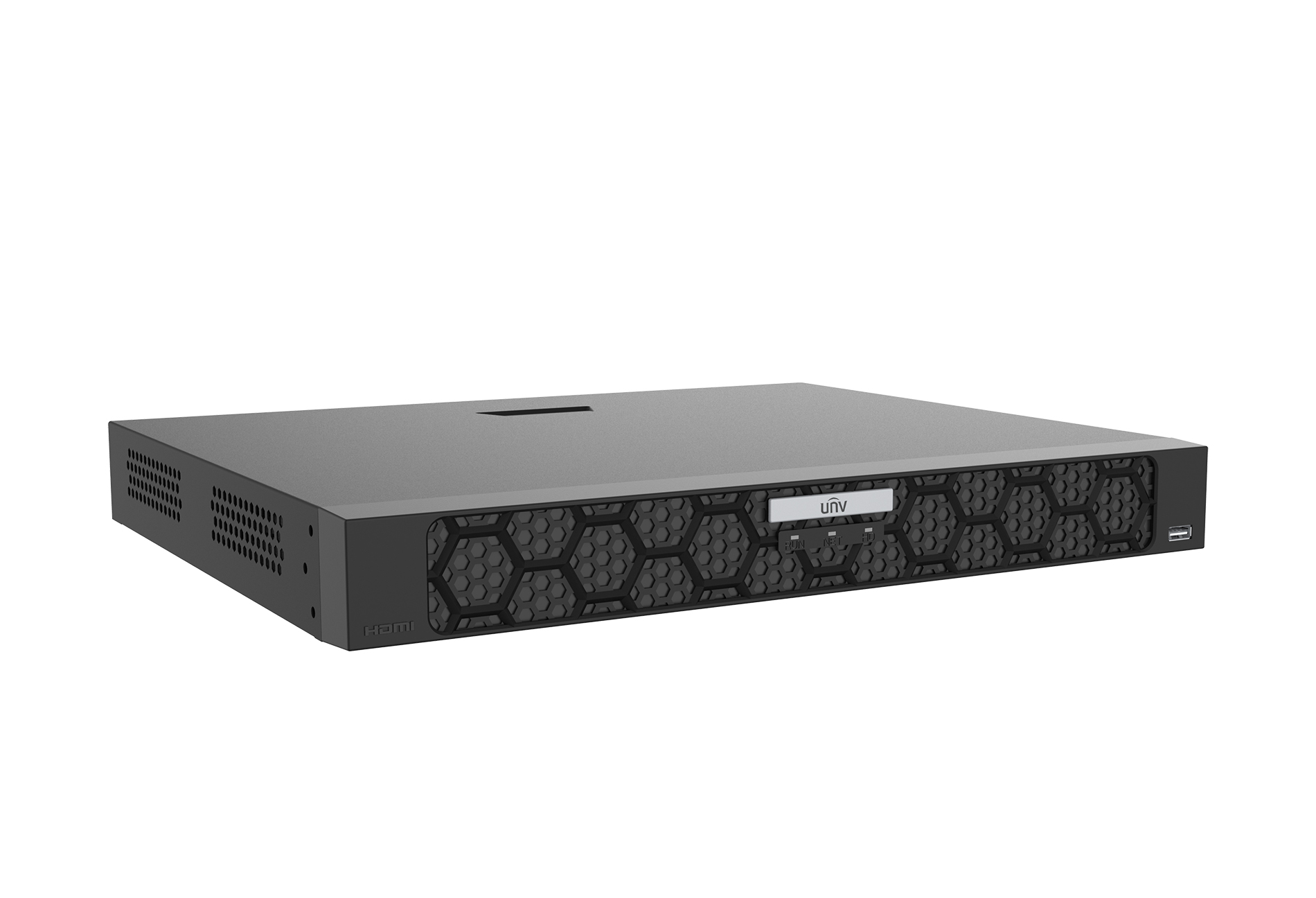

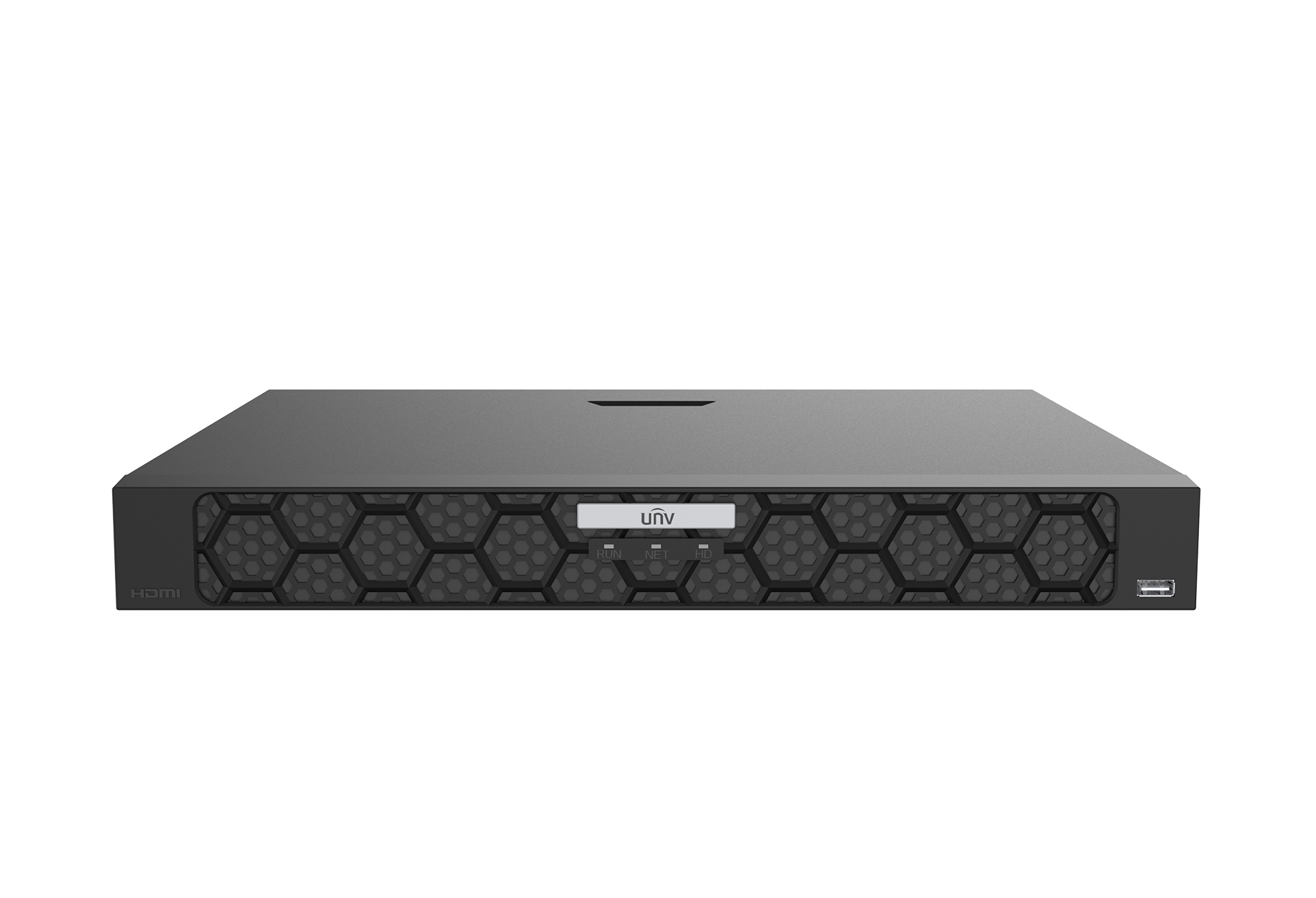

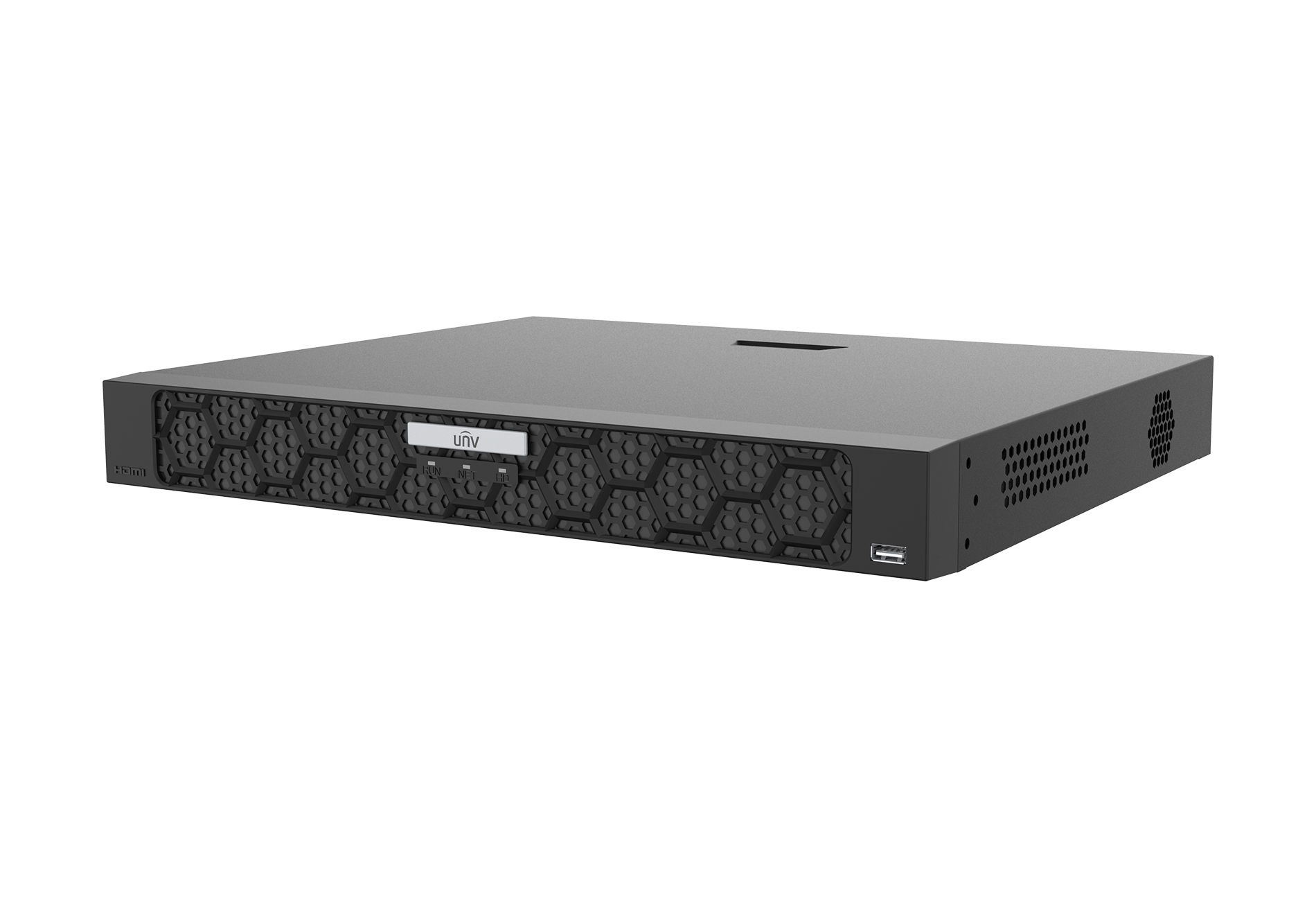

NVR502-32B

Network Video Recorder

  • Support Ultra 265/H.265/H.264 video formats
  • 32-channel input
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • 2 SATA HDD, up to 8TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
SKU: 0235C7K5 Categories: , ,
Description

Model

NVR502-09B

NVR502-16B

NVR502-32B

Video/Audio Input

IP Video Input

9-ch

16-ch

32-ch

Audio Input

1-ch, RCA

Network

Incoming bandwidth

320Mbps

Outgoing bandwidth

160Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Browser

IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Video/Audio Output

HDMI/VGA Output

HDMI:
4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60
VGA:
1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1600×1200@60, 1280×720@60, 1024×768@60

Recording Resolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Two-way Audio

1-ch, RCA(Using the audio input and output)

Audio Compression

G.711A, G.711U

Synchronous Playback

9-ch

16-ch

16-ch

Liveview display

1/4/6/8/9

1/4/6/8/9/16

1/4/6/8/9/16/25/32

Corridor Mode Screen

3/4/5/7/9

3/4/5/7/9/10/12/16

3/4/5/7/9/10/12/16/32

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot, up to D1 resolution

Decoding

Decoding format

Ultra 265/H.265/H.264

Live view/Playback

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1

Hard Disk

SATA

2 SATA interfaces

Capacity

Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)

Smart

VCA Detection by Camera

Face Detection, Face Comparison, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Mixed-Traffic Detection, Traffic Monitoring

VCA Search

Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report

People Counting

People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention (SIP), Face Detection, Face Comparison, Vehicle Detection, UMD by Camera

Total 8-ch

General Alarm

General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

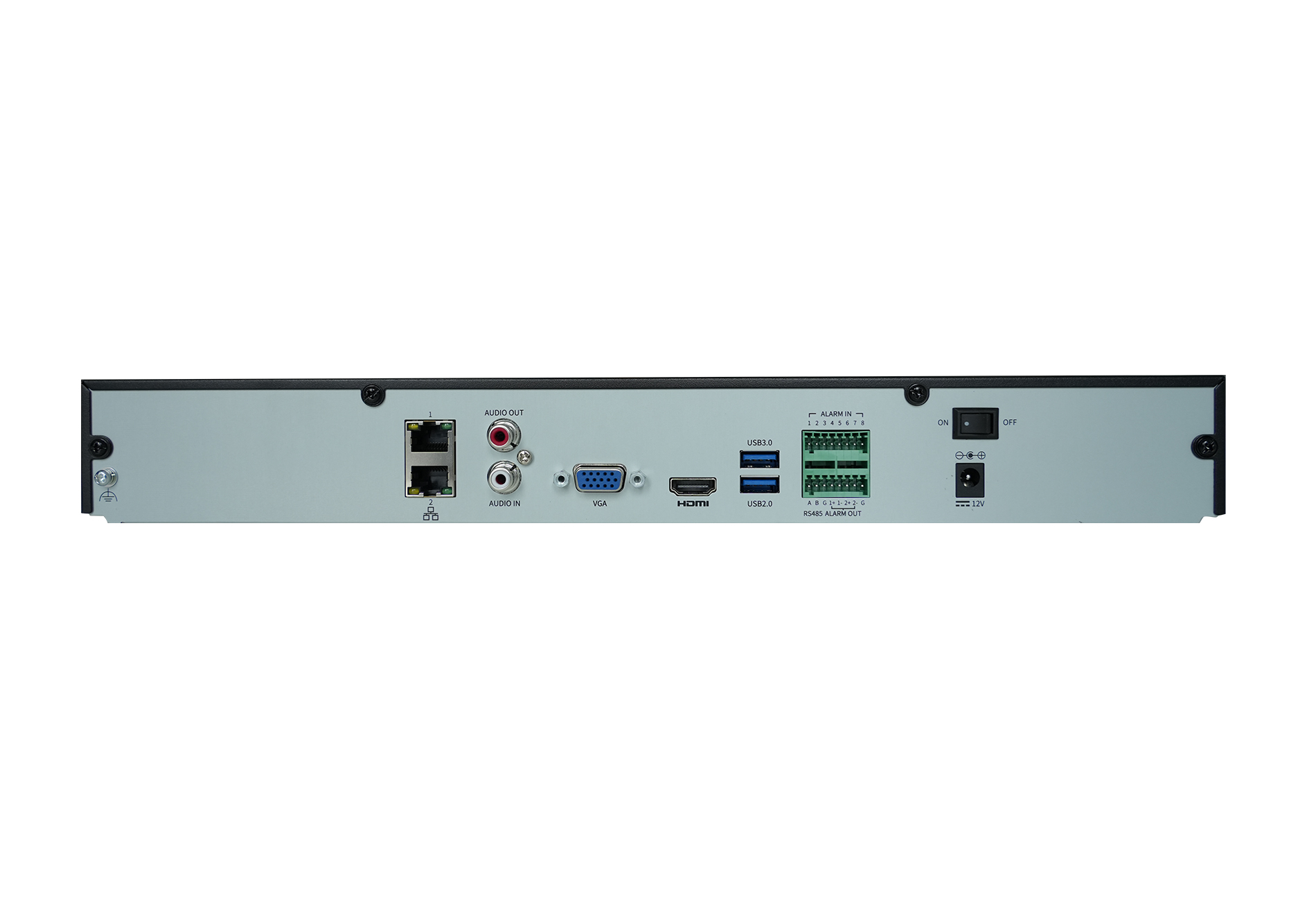

External Interface

Network Interface

2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Front: 1 x USB2.0, Rear panel: 1 x USB3.0, 1 x USB2.0

RS232

NA

RS485

1

Alarm In

8-ch

Alarm Out

2-ch

General

Power Supply

12V DC/3.3A
Power Consumption: ≤ 20W (without HDD)

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

380mm × 315mm × 53mm (15.0″ × 12.4″ × 2.1″)

Weight (without HDD)

≤ 2Kg (4.40lb)

Certification

Certification

CE, FCC, UL, RoHS, WEEE

CE

EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC

Part15 Subpart B
