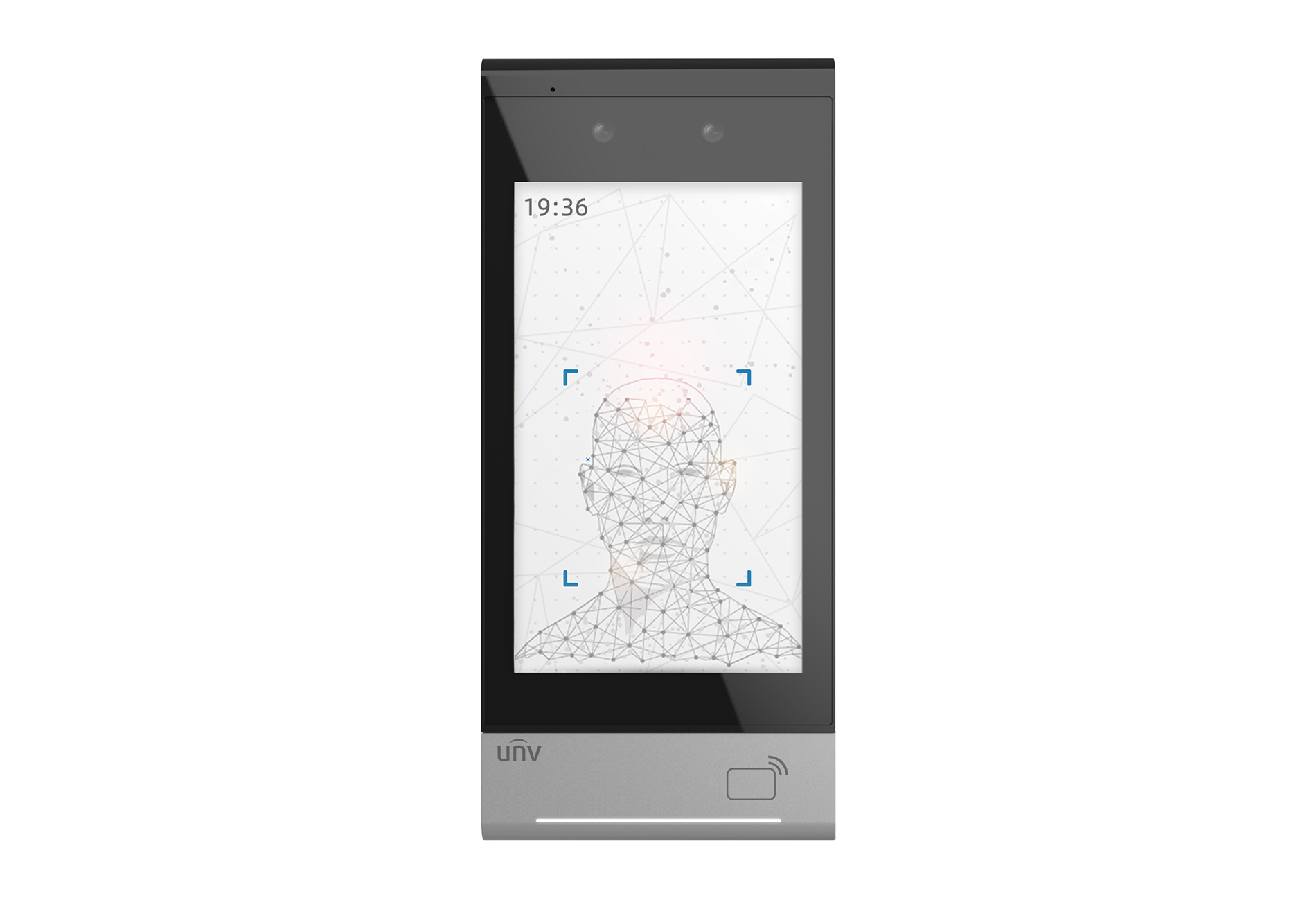

OET-573B-HM-R

7" face recognition access control terminal

  • Industrial-grade design presents a classy and elegant appearance.
  • Embedded Linux OS ensures stable and reliable operation.
  • With UNV deep learning algorithm model, face recognition accuracy rate > 99%, false rate < 1%, fast face recognition speed (up to 0.2s).
  • Built-in deep learning chip allows local offline recognition, 20,000 face (1:N) capacity.
  • 2MP WDR camera with intelligent metering delivers high quality images in a variety of complex light conditions.
  • RGB+IR dual-camera liveness detection function effectively prevents spoofing of images or videos.
  • Integrated offline speech synthesis engine supports broadcasting person name after successful authentication and customizing various voice prompts.
  • With advertising mode support, user can customize the time to switch to the next picture or video and view playback time statistics.
  • Supports temperature measurement (an external temperature measurement module is required) and mask detection for pandemic prevention and control.
  • Supports door opening by face, card, password, etc.
  • Supports device management in the local interface and web interface, such as personnel entry, parameter configuration, and system maintenance.
  • Supports connecting to a security module via RS485 to prevent door opening by tampering the device.
  • Supports video collection and connecting VMS/NVR devices via ONVIF.
  • Built-in 4G EMMC front-end storage with capacity of 30,000 records, stable and reliable.
  • Alarm functions such as tamper protection, door open timeout, and authentication over times; supports connecting fire alarm devices to trigger the door to open in case of fire signal input.
  • Provides multiple full-fledged APIs to enable management of personnel, records, configurations, etc. on third-party platforms.
SKU: 0235C68X Categories: ,
Description

Parameter

Description

Operating system

Linux

Face recognition accuracy rate

>99%

Face recognition time

200ms

Face capacity

20,000

Card capacity

20,000

Storage

4GB

Event capacity

30,000 events (without images); 8000 events (with images)

Common authentication mode

Face allowlist (1:N)

Number allowlist (1:N)

Door opening mode

Face, password, card, or any combination of them

Communication mode

1×100Mbps Ethernet interface

Card support

Mifare card, USIM NFC card

Personnel management

Supports adding, updating and deleting face libraries and their members

Record management

Supports saving records locally and uploading records to a third-party platform in real time

Interface

Network port×1, Wiegand input×1, Wiegand output×1, RS485×1, alarm input×2, alarm output×1, door lock interface×1, door sensor interface×1, door button×1

Power

DC 12V±25% input

Touch screen

Size: 7-inch

Resolution: 600×1024

Camera

2MP RGB+IR dual-camera

Illumination

IR

Dimensions (L×W×H)

246mm × 110mm × 23.5mm

Mount method

Standard metal wall mount, supports bare installation and 86-box installation

Operating environment

-20°C to 60°C; <95%, non-condensing

Protection Level

IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)

Application scenario

Indoor/outdoor
