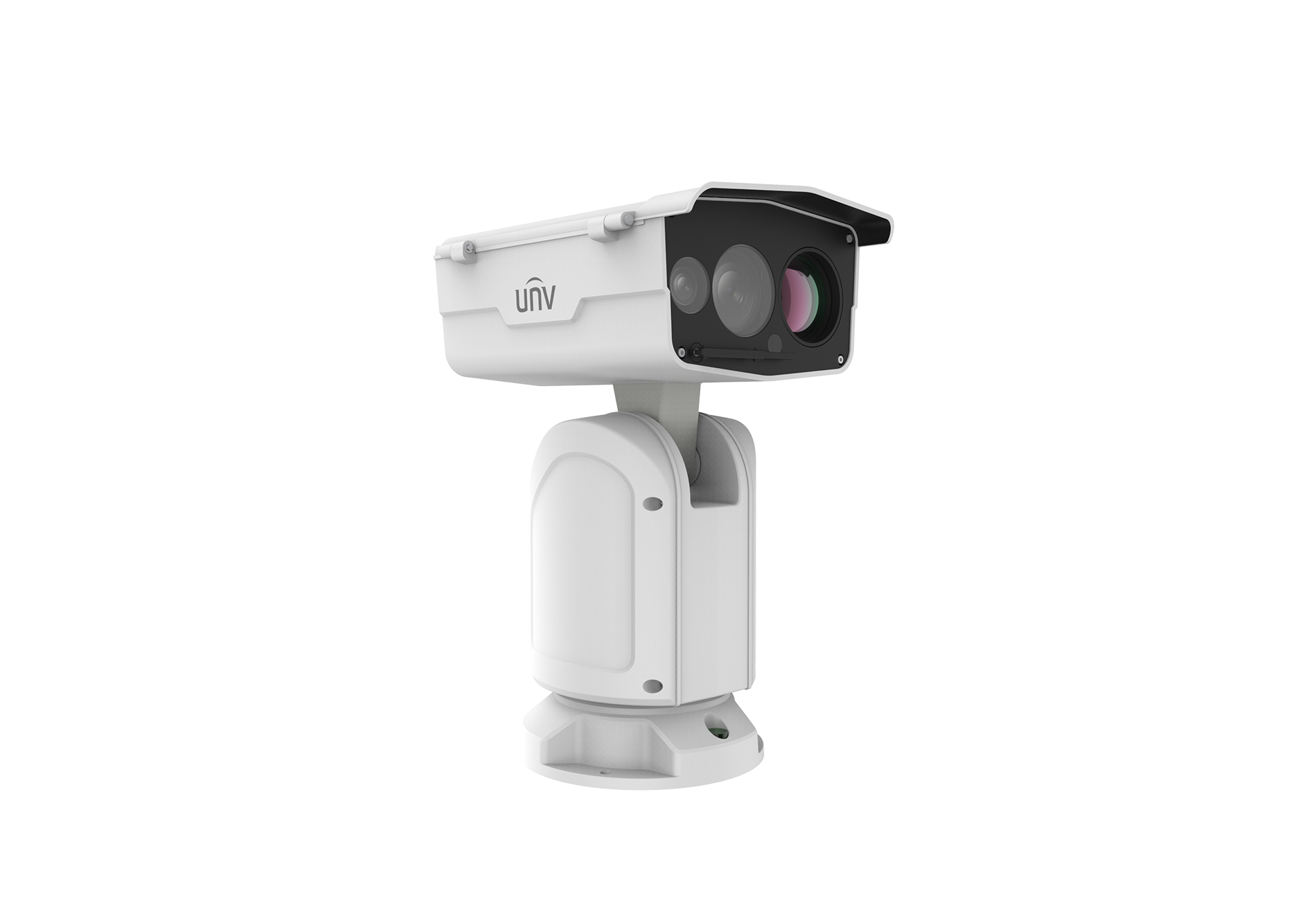

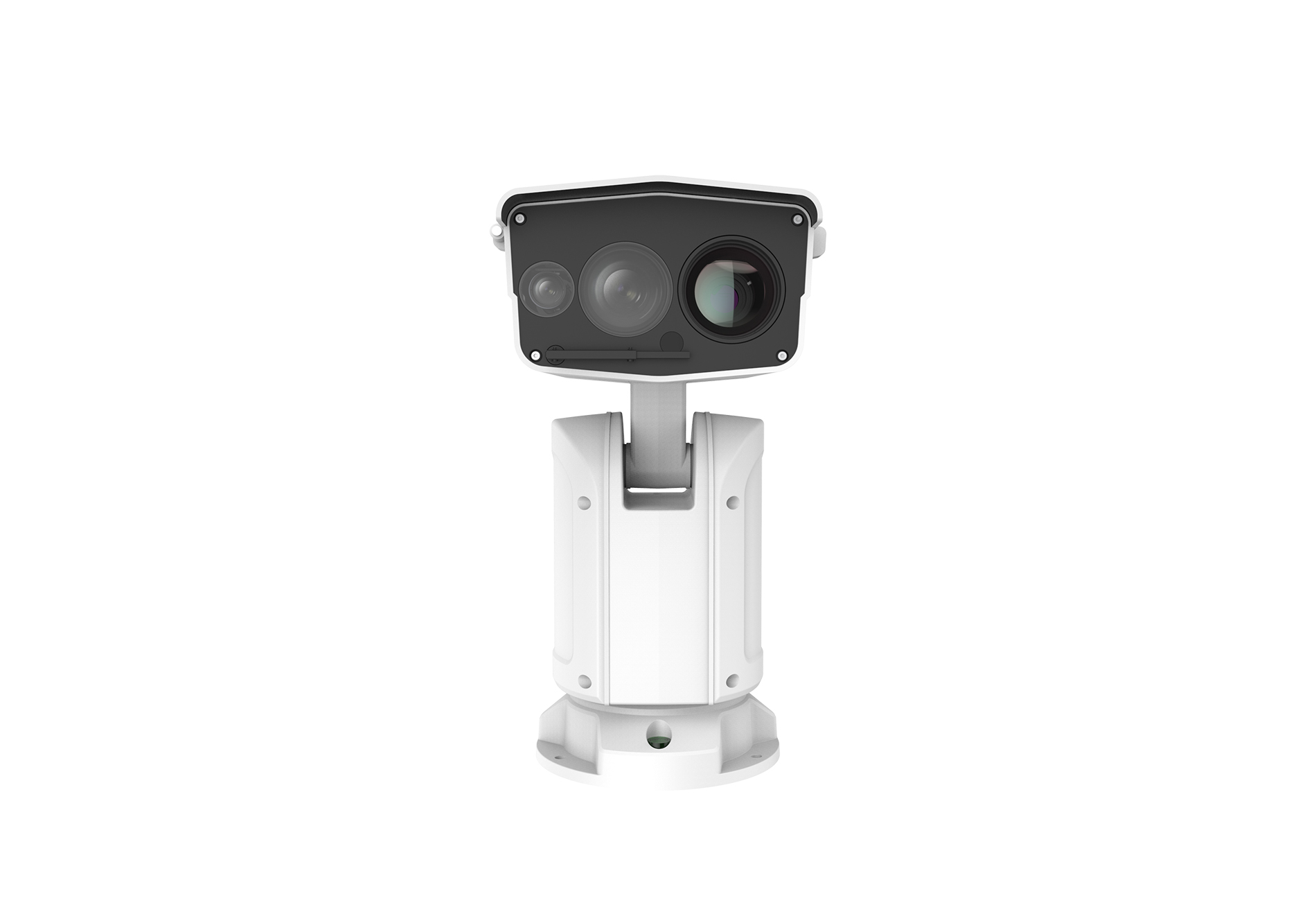

TIC7632EL-F75-2X55G

2MP Thermal & Optical Dual-spectrum Starlight Intelligent Positioning System

  • Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
  • Passive infrared thermal imaging, meet the requirement of concealed monitoring and not affected by bad weather condition such as fog, smoke, rain, snow and night etc.
  • Starlight illumination
  • Gyroscope stabilization for stable picture
  • Vari-focal laser:800m(2624.7ft) distance, proportional to optical zoom of camera module
  • 2D/3D DNR (Digital Noise Reduction)
  • Smart linkage: thermal channel support fire detection, optical channel can link to the fire position and zoom in, more accurate to judge fire situation
  • Smart intrusion prevention based on deep learning algorithm: cross line, enter area, leave area, intrusion, support smart tracking
  • Support 1080P@60fps，which has the smoother motion image
  • Ultra265, H.265, H.264, MJPEG
  • Triple streams
  • Customize OSD
  • Rain-sensing auto wiper
  • Embedded gradienter to ensure the horizontal position while installation
  • Power supply: DC 48V±25%、DC 24V±15%、AC 24V±25%
  • Support 1/1 audio in/out, 7/2 alarm in/out ,1 Serial port RS485
  • Support up to 256G Micro SD card
  • Wide temperature range: -40°C to 70°C (-40°F to 158°F)
  • IP66

icon
Automatic Wiper
Fire detection
Gradienter
Gyroscope
LightHunter
Smart Intrusion Prevention
Ultra H265
wdr
SKU: 0235C4N0 Category: Tag:
Description
  TIC7632EL-F75-2X55G
Optical Module
Image sensor 1/1.8″, progressive scan, 2.0 megapixel, CMOS
Lens 6~ 330mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 55
DORI Distance Lens（mm） Detect (m) Observe (m) Recognize (m) Identify (m)
6 76.6(251.3t) 30.6(100.4ft) 15.3(50.5ft) 7.6(24.9ft)
330 3330.6(10927.2ft) 1332.2(4370.7ft) 666.1(2185.4ft) 333.1(1092.8ft)
Field of View (H) 58.5°~ 1.7°
Field of View (V) 35.0°~ 1.0°
Field of View (D) 72.0°~ 2.0°
Shutter Auto/Manual, shutter time: 1~1/100000 s
Minimum Illumination Colour: 0.0005 Lux (F1.3, AGC ON)
0 Lux with IR
Iris Auto/Manual; F1.3 ~ F4.6
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
VF laser Up to 800m(2624.7ft)
Defog Optical Defog & Digital Defog
WDR 120dB
Thermal Module
Sensor type Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384*288
Video format 720P(1280*720), Max 25fps
Pixel size 17μm
Response waveband 8~14μm
NETD ≤50mk
Lens(focal length) 75mm
Field of View (H) 5.0°
Field of View (V) 4.0°
Field of View (D) 6.1°
Focus Auto/Semiautomatic/Manual
Palette Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Detection Distance Vehicle: 5220m (target size 4mx1.4m); human: 2093m (target size 1.8mx0.5m);
Recognition Distance Vehicle: 1305m (target size: 4mx1.4m); human: 523m (target size: 1.8mx0.5m);
Identification Distance Vehicle: 746m (target size: 4mx1.4m); human: 299m (target size: 1.8mx0.5m);
Video
Compression Ultra265, H.265, H.264, MJPEG
Frame Rate Main Stream: 2MP (1920×1080): Max.60fps;
Sub Stream: 2MP (1920×1080): Max.60fps;
Third Stream: D1(720 x 576): Max.60fps;
HLC Supported
BLC Supported
OSD Up to 8 OSDs
ROI Up to 8 areas
Privacy Mask Up to 24 areas
Motion Detection Up to 4 areas
Smart
Smart intrusion prevention
(thermal module)		 Support false alarm filtering
Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Fire Detection
(thermal module)		 Support the detection of fire point in the environment and link the optical camera zoom tracking and alarm
Fire Detection Range 4500m(target size 2mx2m)
Events
Basic Detection Motion detection, Audio detection, Voltage detection, Tampering alarm
Exception Detection And Statistics
(optical module)		 Object Moving, Object Left, Auto-tracking
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 140°/s
Preset speed: 140°/s
Tilt Range -90° ~ 45°
Tilt Speed 0.1° ~ 40°/s
Preset speed: 40°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O Audio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 7/2
Serial Port 1 RS485
Video Output Supported(Thermal module)
Network 1 RJ45 10M/100M/1000M Base-TX Ethernet+1 100M/1000M SFP
General
Power DC 48V±25%、DC 24V±15%、AC 24V±25%
Power consumption: Max 119W
Dimensions (Φ × H) 505.2mm × 280.1mm × 365.9mm (19.9″ × 11.0″ × 14.4″)
Weight 15.09kg(33.27lb)
Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Vandal Resistant N/A
Ingress Protection IP66
