Sensor
|
Description
|
|
Pixel
|
4MP
|
|
Sensor Size
|
1/1.8″
|
|
Min. Illumination
|
0.0005 lux (F1.0, AGC ON)
0 lux (white light on) |
|
Lens
|
Description
|
|
Focus
|
UAC-B134-ADF28MS-W:2.8mm
UAC-B134-ADF40MS-W:4.0mm
|
|
Lens Mount
|
M16
|
|
Angle of View (H)
|
UAC-B134-ADF28MS-W:105.9°
UAC-B134-ADF40MS-W:89.5°
|
|
Angle of View (V)
|
UAC-B134-ADF28MS-W:57.1°
UAC-B134-ADF40MS-W:48.0°
|
|
Angle of View (D)
|
UAC-B134-ADF28MS-W:125.0°
UAC-B134-ADF40MS-W:105.9°
|
|
Illuminator
|
Description
|
|
Illuminator Number
|
Two white-light illuminators
|
|
Illumination Distance
|
40m
|
|
Lifetime
|
≥60000 hours
|
|
Video
|
Description
|
|
Resolution
|
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V) |
|
Frame Rate
|
CVI/AHD/TVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC |
|
Shutter Time
|
PAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s |
|
|
Description
|
|
Exposure Mode
|
Four modes: Global(default),BLC,HLC,WDR
|
|
Day/Night
|
24/7 color images
|
|
Digital Noise Reduction
|
2D/3D
|
|
White Balance
|
Two modes: Auto (default),Manual
|
|
WDR
|
120dB WDR
|
|
Flip
|
Supports 180°horizontal flip, 180°vertical flip
|
|
Digital Defog
|
N/A
|
|
Audio
|
Description
|
|
Built-in Mic
|
Support
|
|
Camera Audio
|
CVI: 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
|
|
Interface
|
Description
|
|
Power Interface
|
5.5mm Power Interface
|
|
Video Output
|
BNC, supports TVI/AHD/CVI/CVBS
|
|
Operating Environment
|
Description
|
|
Temperature
|
-30℃ to 60℃(-22°F to 140°F)
|
|
Humidity
|
≤95% RH (non-condensing)
|
|
Surge Protection
|
4kV for power&4kV for video output interfaces
|
|
General
|
Description
|
|
Power
|
DC12V±25%
|
|
Power Consumption
|
MAX 6.8W
|
|
Mount
|
Corner Mount&Pole Mount
|
|
Dimensions
|
206mm*73mm*73mm (L*W*H)
|
|
Material
|
Graphene+Metal
|
|
Weight
|
463g (1.02lb)
|
New
UAC-B134-ADF40MS-W

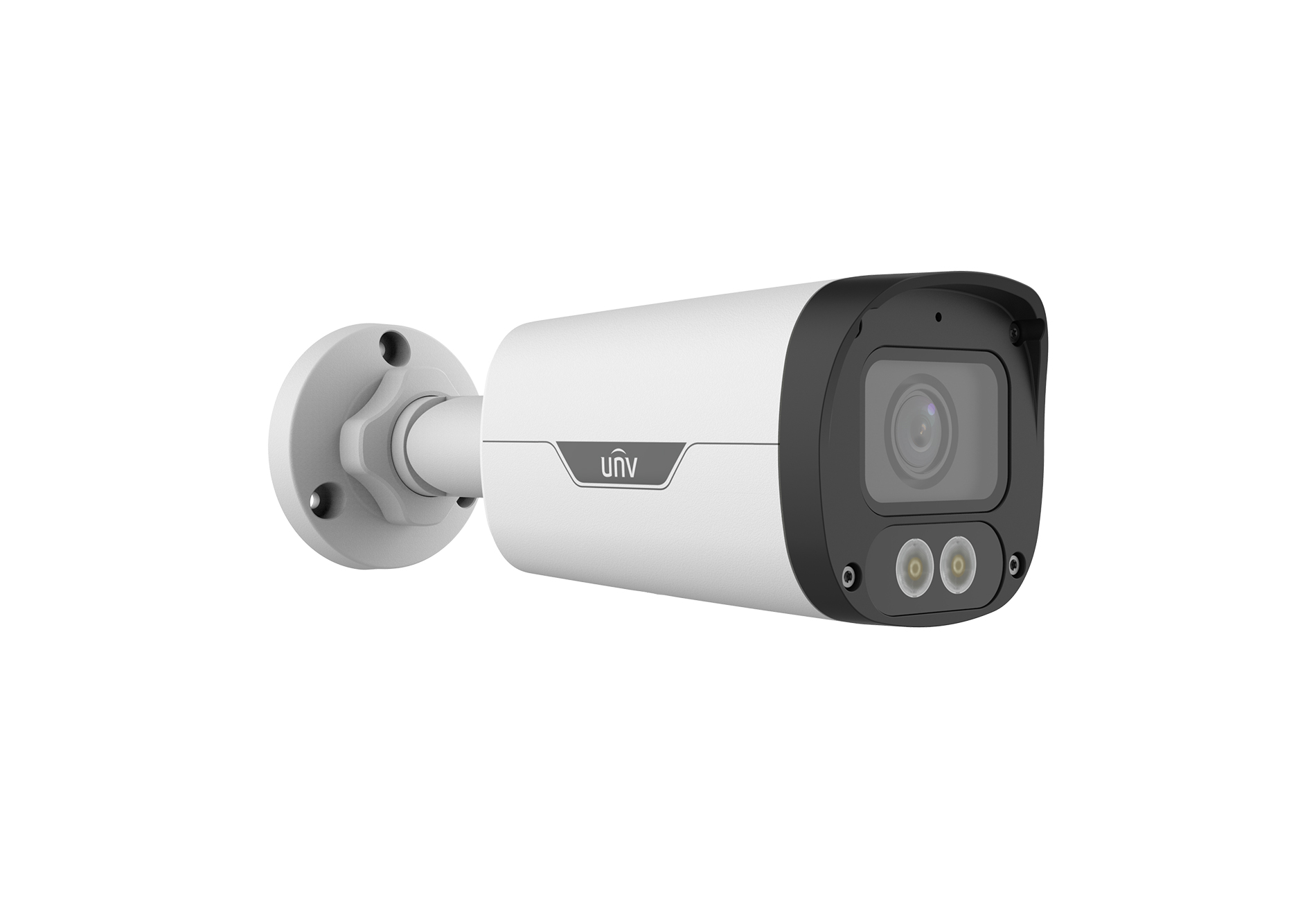

4MP ColorHunter Mini Bullet Analog Camera
UAC-B134-ADF28(40)MS-W is a 4MP ColorHunter fixed bullet analog camera with a high-performance 1/1.8-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/AHD/CVI/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports audio input, synchronous transmission of audio and video, and provides 24/7 color images.
Features
- High quality image with 4MP, F1.0 large aperture lens
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- 120dB true WDR technology enables clear image in strong light scene
