Sensor
|
Description
|
|
Pixel
|
8MP
|
|
Sensor Size
|
1/2.7″
|
|
Min. Illumination
|
0.005 lux (F1.6, AGC ON)
0 lux (IR ON) |
|
Lens
|
Description
|
|
Focus
|
UAC-T128-ADF28MS:2.8mm
UAC-T128-ADF40MS:4.0mm
|
|
Lens Mount
|
M12
|
|
Angle of View (H)
|
UAC-T128-ADF28MS:109.1°
UAC-T128-ADF40MS:86.8°
|
|
Angle of View (V)
|
UAC-T128-ADF28MS:61.0°
UAC-T128-ADF40MS:49.4°
|
|
Angle of View (D)
|
UAC-T128-ADF28MS:126.7°
UAC-T128-ADF40MS:99.9°
|
|
Illuminator
|
Description
|
|
Illuminator Number
|
Two IR illuminators
|
|
Illumination Distance
|
40m
|
|
Lifetime
|
≥60000 hours
|
|
Video
|
Description
|
|
Resolution
|
4K: 3840(H) × 2160(V)
5MP@20fps: 2592(H)×1944(V); [email protected]: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) |
|
Frame Rate
|
CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
|
Shutter Time
|
PAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s |
|
|
Description
|
|
Exposure Mode
|
Four modes: Global(default),BLC,HLC,WDR
|
|
Day/Night
|
Three modes: Auto (default), Day, Night
|
|
Digital Noise Reduction
|
2D/3D
|
|
White Balance
|
Two modes: Auto (default),Manual
|
|
WDR
|
120dB WDR
|
|
Smart IR
|
Support
|
|
Flip
|
Supports 180°horizontal flip, 180°vertical flip
|
|
Digital Defog
|
N/A
|
|
Audio
|
Description
|
|
Built-in Mic
|
Support
|
|
Camera Audio
|
CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
|
|
Interface
|
Description
|
|
Power Interface
|
5.5mm Power Interface
|
|
Video Output
|
BNC, supports TVI/AHD/CVI/CVBS
|
|
Operating Environment
|
Description
|
|
Temperature
|
-30℃ to 60℃(-22°F to 140°F)
|
|
Humidity
|
≤95% RH (non-condensing)
|
|
Surge Protection
|
4kV for power&4kV for video output interfaces
|
|
General
|
Description
|
|
Power
|
DC12V±25%
|
|
Power Consumption
|
MAX 4.8W
|
|
Mount
|
Wall Mount, Pole Mount, Corner Mount, Pendant Mount
|
|
Dimensions
|
Φ111mm*98mm (diameter*height)
|
|
Material
|
Metal
|
|
Weight
|
417g(0.92lb)
|
|
OSD menu language
|
11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish
|
|
Certification
|
Description
|
|
EMC
|
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)FCC (FCC 47 CFR part15 B)
|
|
Safety
|
CE-LVD (EN 62368-1)
|
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
|
|
Protection
|
IP67 (IEC 60529)
|

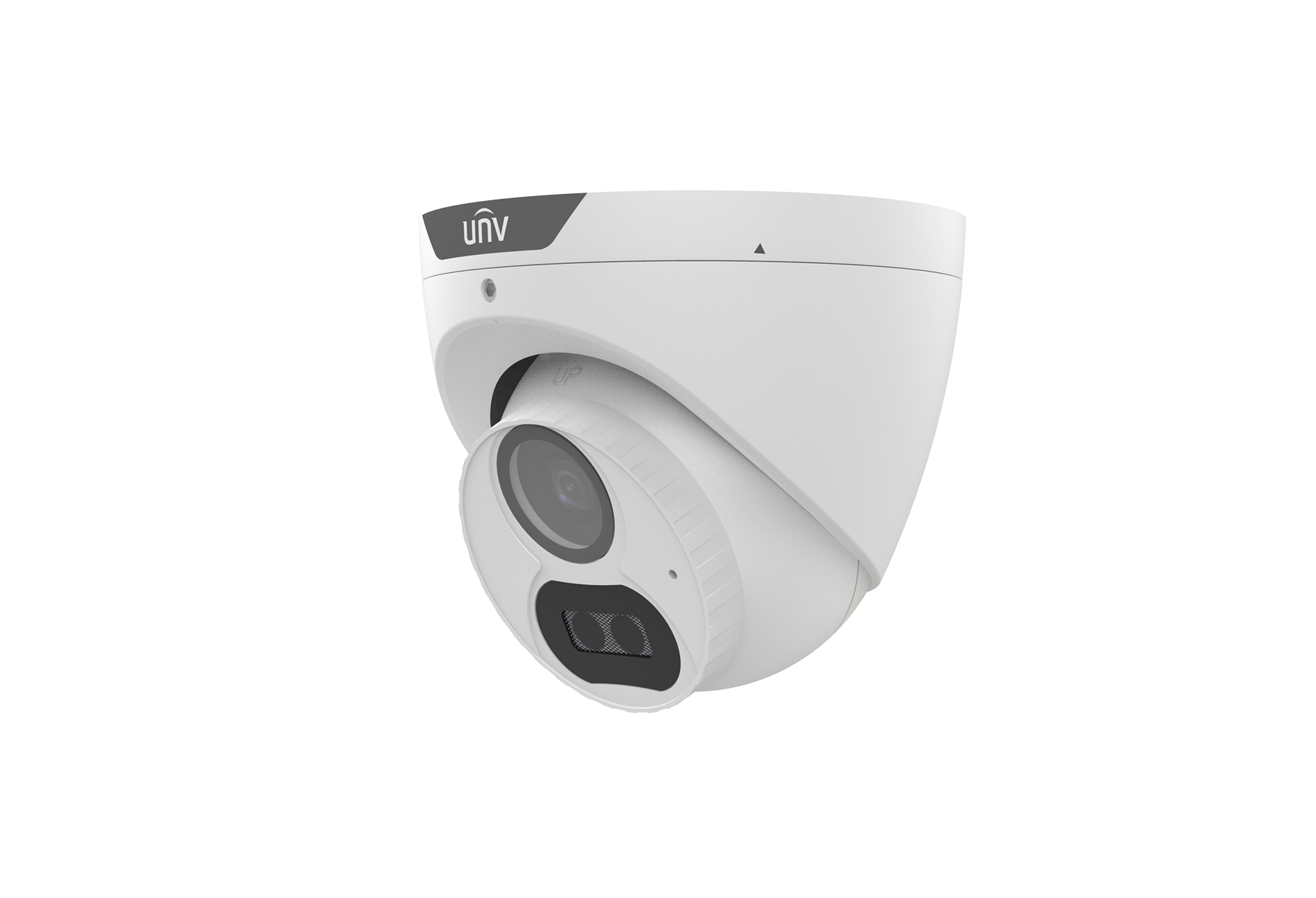

UAC-T128-ADF28MS
8MP IR Eyeball Analog Camera
UAC-T128-ADF28(40)MS is a 8MP LightHunter fixed IR turret analog camera with a high-performance 1/2.7-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/CVI/AHD/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
Features
- High quality imaging with 8MP resolution
- TVI/CVI/AHD/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- 120dB true WDR technology enables clear image in strong light scene
