Camera |
Uho-P1A-M3F4D |
||||
|
Sensor |
1/2.8″ progressive scan, 3.0 megapixel, CMOS |
||||
|
Min. Illumination |
Colour:0.005 lux (F1.6,AGC ON) |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, shutter time: 1s ~ 1/100000s |
||||
|
WDR |
Digital |
||||
|
S/N |
>52 dB |
||||
|
Lens |
|||||
|
Lens type |
4mm |
||||
|
Digital Zoom |
4 |
||||
|
Iris |
Fixed; F1.6 |
||||
|
Field of View (H) |
90.5° |
||||
|
Field of View (V) |
44.4° |
||||
|
Field of View (D) |
111.3° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
4mm |
73.5 (241.0ft) |
29.4 (96.4ft) |
14.7 (48.2ft) |
7.3 (24.1ft) |
|
|
Illuminator |
|||||
|
IR Range |
Up to 30m (98ft) |
||||
|
Warm Light Range |
Up to 30m (98ft) |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265, H.265, H.264 |
||||
|
Frame Rate |
Main Stream: 3MP (2304*1296), Max 20fps; |
||||
|
Video Bit Rate |
128 Kbps ~ 6 Mbps |
||||
|
ROI |
Support |
||||
|
Video Stream |
Dual streams |
||||
|
OSD |
Up to 2 OSDs |
||||
|
Privacy Mask |
Up to 4 areas |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital Noise Reduction |
2D/3D DNR |
||||
|
Smart IR |
Support |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Intelligent |
|||||
|
Behavior Detection |
Cross Line detection, Intrusion detection |
||||
|
Human Body Detection |
Support |
||||
|
Events |
|||||
|
Basic Detection |
Motion detection, Audio detection |
||||
|
Auto tracking |
Support |
||||
|
General Function |
Access Policy, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U,G.711A |
||||
|
Two-way Audio |
Support |
||||
|
Suppression |
Support |
||||
|
Sampling Rate |
8 kHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256 GB |
||||
|
Network Storage |
ANR |
||||
|
Network |
|||||
|
Protocols |
IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, HTTPS, 802.1x , SSL |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G), API |
||||
|
Web Browser |
Plug-in required live view: IE 10 and above |
||||
|
Pan & Tilt |
|||||
|
Pan Range |
0° ~ 345° |
||||
|
Pan Speed |
1°/s ~ 40°/s |
||||
|
Preset speed: 40°/s |
|||||
|
Tilt Range |
0° ~ 90° |
||||
|
Tilt Speed |
1°/s ~ 30°/s |
||||
|
Preset speed: 30°/s |
|||||
|
Number of Presets |
256 |
||||
|
Home Position |
Support |
||||
|
Interface |
|||||
|
Built-in Mic |
Support |
||||
|
Built-in Speaker |
Support |
||||
|
Wi-Fi |
Support |
||||
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
||||
|
General |
|||||
|
Power |
DC 12V ± 25% |
||||
|
Power consumption: Max 10W |
|||||
|
Power Interface |
Ø 5.5mm coaxial power plug |
||||
|
Dimensions (Ø x H) |
Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”) |
||||
|
Weight |
0.53kg (1.17lb) |
||||
|
Working Environment |
-30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing) |
||||
|
Surge Protection |
4KV |
||||
|
Reset Button |
Support |
||||
|
Protection |
Ingression protection: IP66 |
||||
Uho-P1A-M3F4D

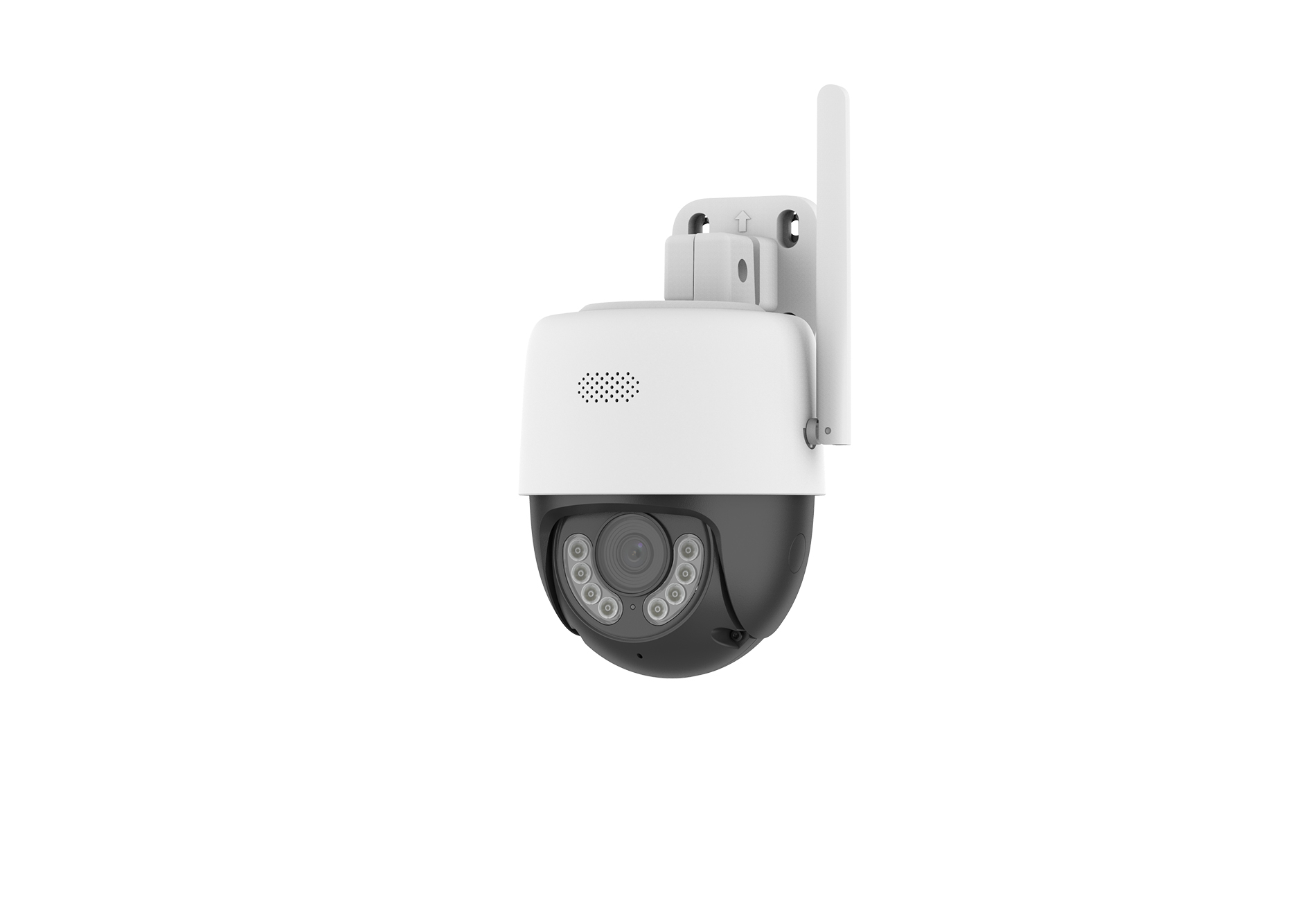

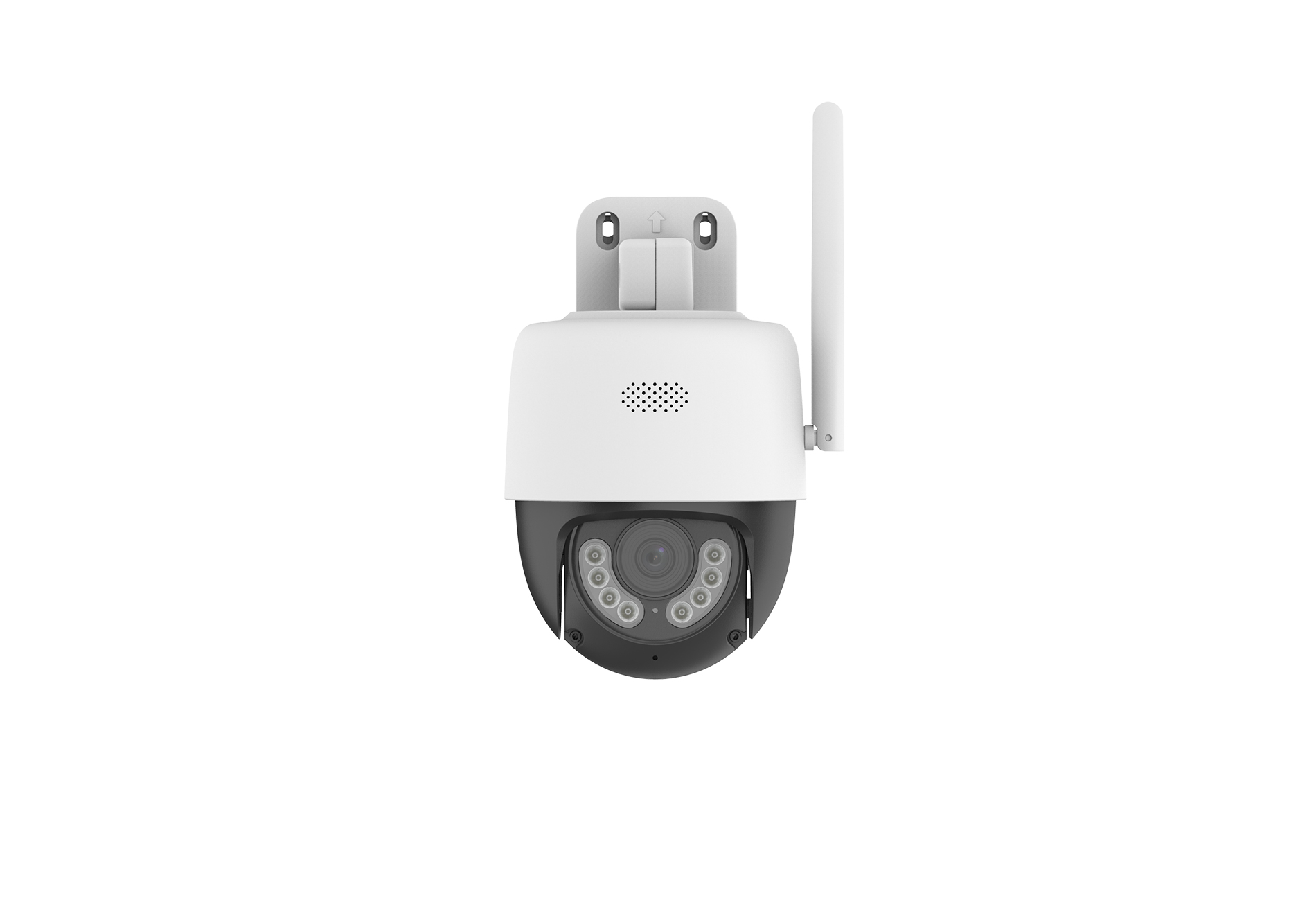

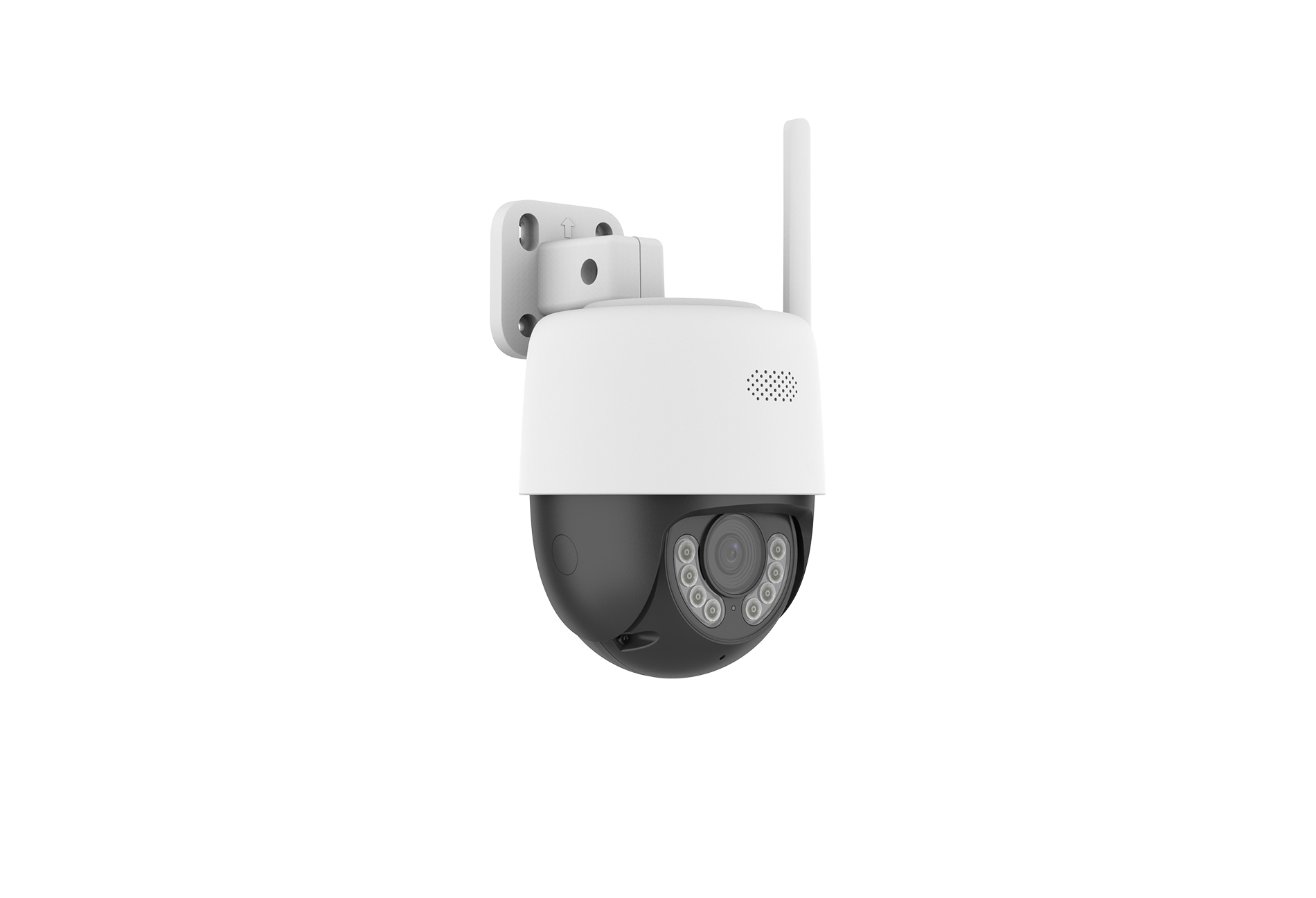

3MP HD Dual Light Network PT Camera
- 2304*1296@20fps in the main stream
- Ultra 265, H.265, H.264
- Support cross line detection and intrusion detection
- Support digital WDR (Wide Dynamic Range)
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- Support sound and light warning, makes warning and alarming more noticeable
- Smart IR, up to 30 m (98 ft) IR and 30m (98 ft) warm light distance, suitable for more scenes
- Self-contained bracket, support two kinds of mounting
- Supports 256 GB Micro SD card
- Wi-Fi connection and easy installation
- IP66 ingress protection
- The front face is made of grapheme, which has better heat dissipation and more environmental protection
