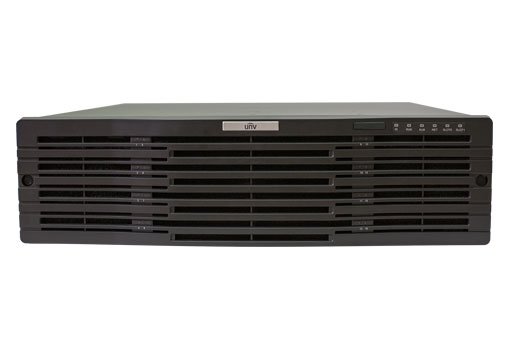

Unicorn

  • Third-part IP Cameras supported with standard ONVIF
  • Support for mobile clients (iOS & Android) access
  • Up to 1000 device/2000 channels connections
  • Unified management of NVR, IPC, decoder, network keyboard and cloud devices
  • 16 SATA HDDs，Up to 14TB each HDD
  • 16×1080P decoding outputs in 3 screens
  • Support for live view, playback, sequence, video wall, E-map, two-way audio, alarm plan
  • Support of network fault tolerance, multi-IP configuration and load balancing
SKU: 0235C2GK Category:
Description
Item Unicorn
Video management Number of connected
cameras per server		 1000 devices or 2000 channels
1000 devices connected via Onvif
Number of connected face recognition terminals 128
Image processing performance Receive vehicle or face images: 100 images per second
Note: For example, if each device uploads 1 image per second, then 100 devices can be connected; if each device uploads 5 images per second, then 20 devices can be connected
Device management IPC, NVR, face recognition terminal, decoder(standard/expanded), network keyboard, cloud devices, alarm control panel and door access control
Number of 3rd-party alarm control panels/access control devices 30
Numbers of users 1000
Numbers of online users 300
Numbers of roles per user 16
Bandwidth of video
input per server		 512Mbps
Bandwidth of video
output per server		 384Mbps
Decoding Video compression Ultra265, H.265, H.264
Decoding 4×4K@30, 16×1080p@30, 36×720p@30, 64×D1
Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
Display on video wall HDMI(×2) and VGA(×1) output; HDMI output supports 4K resolution
Audio compression G.711A, G.711μ
Decoding card
 (optional)		 Max 2 cards supported; models: HDMI4-C and HDMI6-C
HDMI4-C decoding card 4-ch HDMI outputs, with decoding of 4*4K@60 or 8*4K@30 or 32*1080P@30 or 64*720P@30
HDMI6-C decoding card 6-ch HDMI outputs, with decoding of 6*4K@60 or 12*4K@30 or 48*1080P@30 or 96*720P@30
Storage HDD installation Hot-swappable HDDs
Support 16HDDs (3.5″, up to 14TB for each )
RAID mode RAID0, RAID1, RAID5,RAID6,RAID10,RAID50,RAID60
Performance of video storage per server 512Mbps/ 256 channels
Disk enclosure
(optional)		 Max 2 disk enclosures supported; models: DEU1008 and DEU1016
DEU1008 disk enclosure 8xSATA interfaces, up to 14TB storage per interface
DEU1016 disk enclosure 16xSATA interfaces, up to 14TB storage per interface
Play control 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display
Corridor format
Up to 3 auxiliary monitors
Playback Play NVR recordings
Up to 24 channels for multiple clients; synchronous playback up to 16 channels for single client
Data Info Alarm Records 200,000
Operation logs 200,000
Face capture records 3 million
Face alarm records 3 million
Vehicle pass-through records 3 million
Structured motor vehicle, non-motor vehicle and pedestrian records 3 million
Access control entry/exit records 3 million
Alarm processing capacity 100/s
System Main Processor Intel(R) CPU
Memory 4GB DDR3L
Power supply 100-240 VAC (with power on/off switch)
Dual-power redundancy
Interface Network 4×10M/100M/1000M Base-T adaptive Ethernet interfaces
2×1000M SFP optical interfaces
USB 4×USB3.0
HDMI 2×HDMI
VGA 1×VGA
Serial 1×RS-232 (RJ45), 1×RS-485 (RJ45)
Alarm input/output 24×alarm inputs, 8×alarm outputs
Power output 12 V DC
Audio alarm Buzzer
Expansion 1×eSATA interface
2×miniSAS interfaces
2×decoding cards
Others Power consumption ≤ 50W (not including HDD)
≤ 165W (including HDD)
Operating temperature -10°C to 55°C (14°F to 131°F)
Operating humidity 10% to 90% (noncondensing)
Weight ≤ 10.0 Kg
Dimensions
(D×W×H)		 Height: 3U, support mounting in standard 19″ cabinet
 477.1 mm × 481.6 mm × 130.5 mm (18.8’×19’×5.1′) (including front panel)
