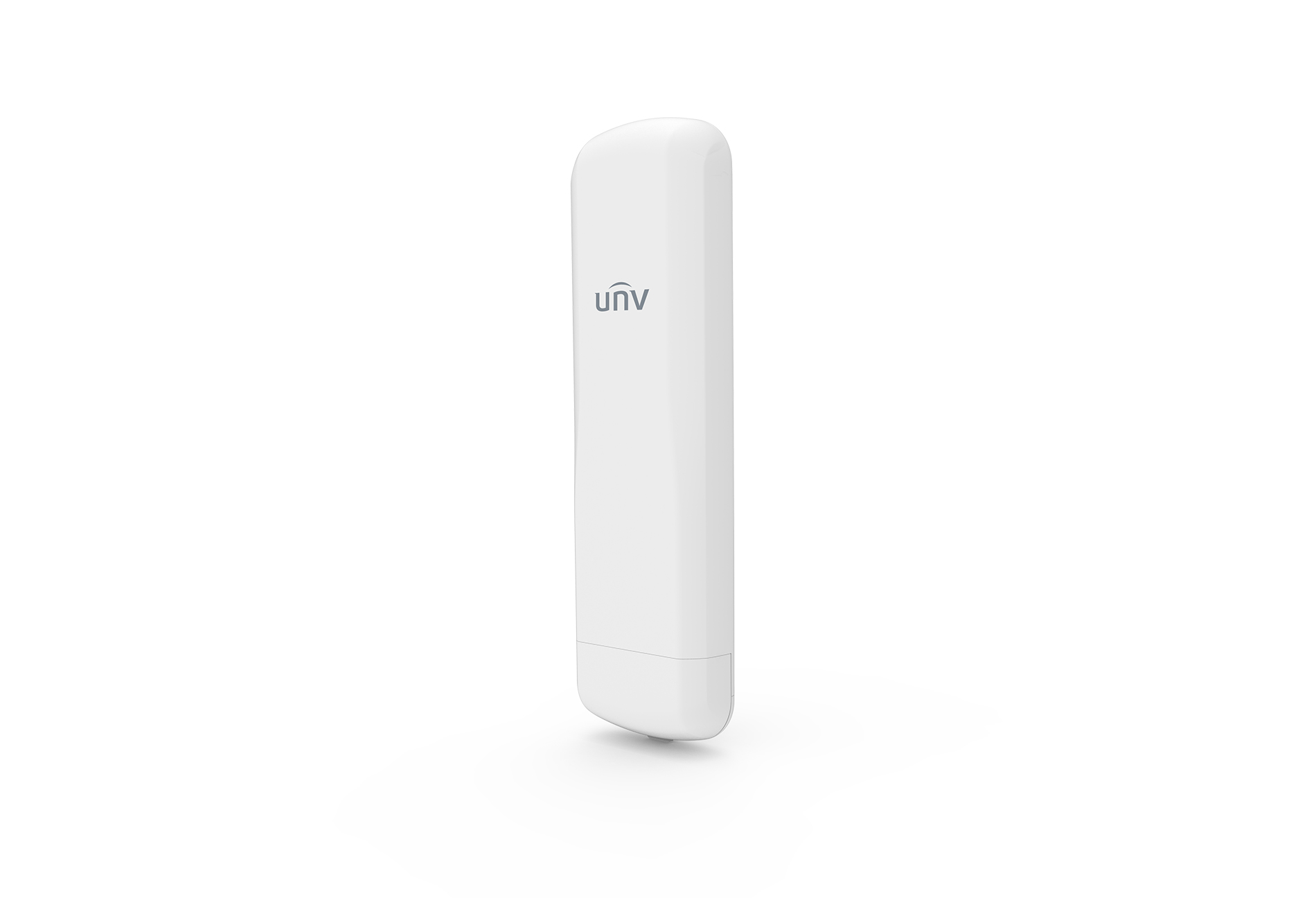

WLN-EB5E-IN

Outdoor High-performance Bridge

Supports 802.11a/n standard
The highest transmission rate is 90Mbps
Outdoor transmission distance: 0~3km
Integrated antenna, quick installation.
Shipped in pairs, no configuration required
Built-in VTrans technology, including
1) TDMA: eliminate the performance degradation caused by hidden terminals and maximize the wireless transmission efficiency
2) Frequency (channel) expansion function: eliminate interference caused by the same frequency and adjacent frequency through more frequency selection
3) Band width selection: by adjusting the channel width, the overlapping parts of spectrum can be avoided and the influence of interference by other channels can be reduced
4) AutoAck function: intelligently calculate the ACK value required for long-distance transmission to achieve the optimal performance at this distance
Supports bridge and router modes. Network architecture can be flexibly deployed by adjusting the network mode of devices
Intelligent QoS wireless multimedia optimization technology, providing high priority transmission levels for voice and video
Supports web page management, making installation and maintenance of equipment more convenient
IP65

Hardware Specification

Model	WLN-EB5E-IN
Dimensions(mm)	288x88x45mm
Weight(kg)	0.3kg

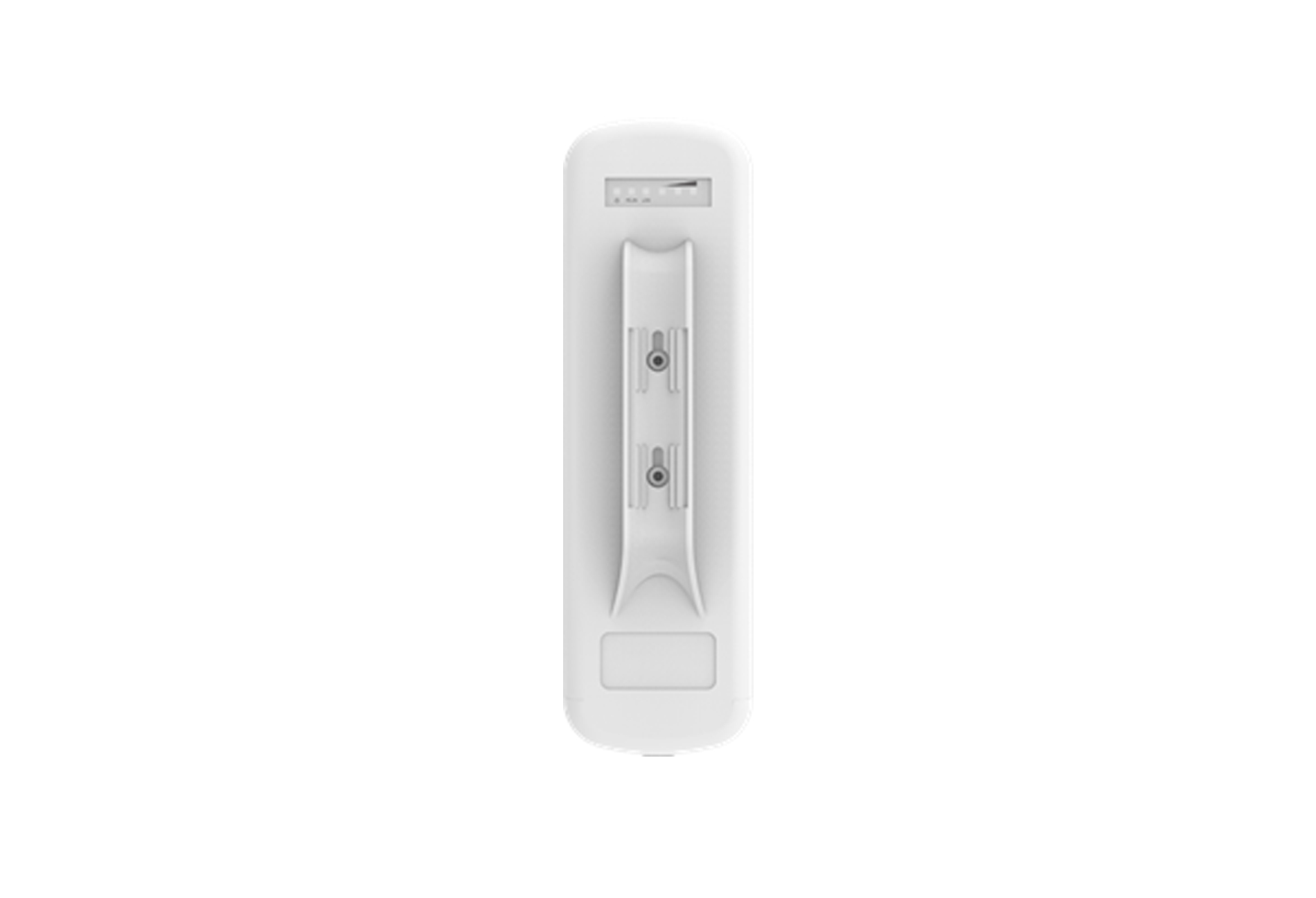

Installation	Pole mounting Diameter≤75mm
Protection Level	IP65
Antenna Gain	15dBi
Beam Width	H：40°，V：15°
Power Supply	24V Passive POE
Max Power Consumption(W)	8W
Average Power Consumption(W)	5W
CPU	AR9344
DDR & Memory	64MB DDR2,8MB Flash
Physical Interface	2*10/100Mbps
Indicator Light	1Power Indicator 1WLAN Indicator 1LAN Indicator 3 Signal strength indicator
Maximum Transmitted Power	27dBm
Working Temperature	-40℃~65℃
Storage Temperature	-40℃~85℃
Working Humidity	5%~95%RH Non-condensing
Surge	POE/GE: CM 1KV , DM 1KV
ESD Protection	Contact 6KV , Air 8KV
Wind Survivability	134km/h

Software Specification

Protocol	802.11a/n
Frequency	5180~5320MHz、5745~5825MHz（China） 5180~5320MHz、5500~5720MHz、5745~5825MHz（United States） 5160~5340MHz、5480~5720MHz、5745~5865MHz（India） 5160~5340MHz、5480~5720MHz、5745~5825MHz（United Arab Emirates） 5745~5805MHz（Indonesia） Supported frequency range：4920~6100MHz（should depend on the local regulation.） * The above frequencies need specific version support
Operating Mode	AP, Station, WDS AP, WDS Station
Security	WPA2-PSK, Hidden SSID, IP/MAC Filtering
Network Mode	Bridge/ Router
Management	Support Web/AC/SNMP
Other	Timed restart，Support VLAN，QoS, Watchdog

RF Specification

TX Power				Sensitivity
	Date Rate	Avg. TX	Tolerance	Date Rate	Sensitivity	Tolerance
11a/n	6 Mbps	24dBm	+/- 2dBm	6 Mbps	-93dBm	+/- 2dBm
	54 Mbps	21dBm	+/- 2dBm	54 Mbps	-74dBm	+/- 2dBm
	HT20 MCS0(combination)	27dBm	+/- 2dBm	HT20 MCS0	-93dBm	+/- 2dBm
	HT20 MCS7(combination)	23dBm	+/- 2dBm	HT20 MCS7	-73dBm	+/- 2dBm
	HT40 MCS0(combination)	27dBm	+/- 2dBm	HT40 MCS0	-90dBm	+/- 2dBm
	HT40 MCS7(combination)	23dBm	+/- 2dBm	HT40 MCS7	-70dBm	+/- 2dBm

* The combined power in the chart above is the result of tested single power plus 3dB
