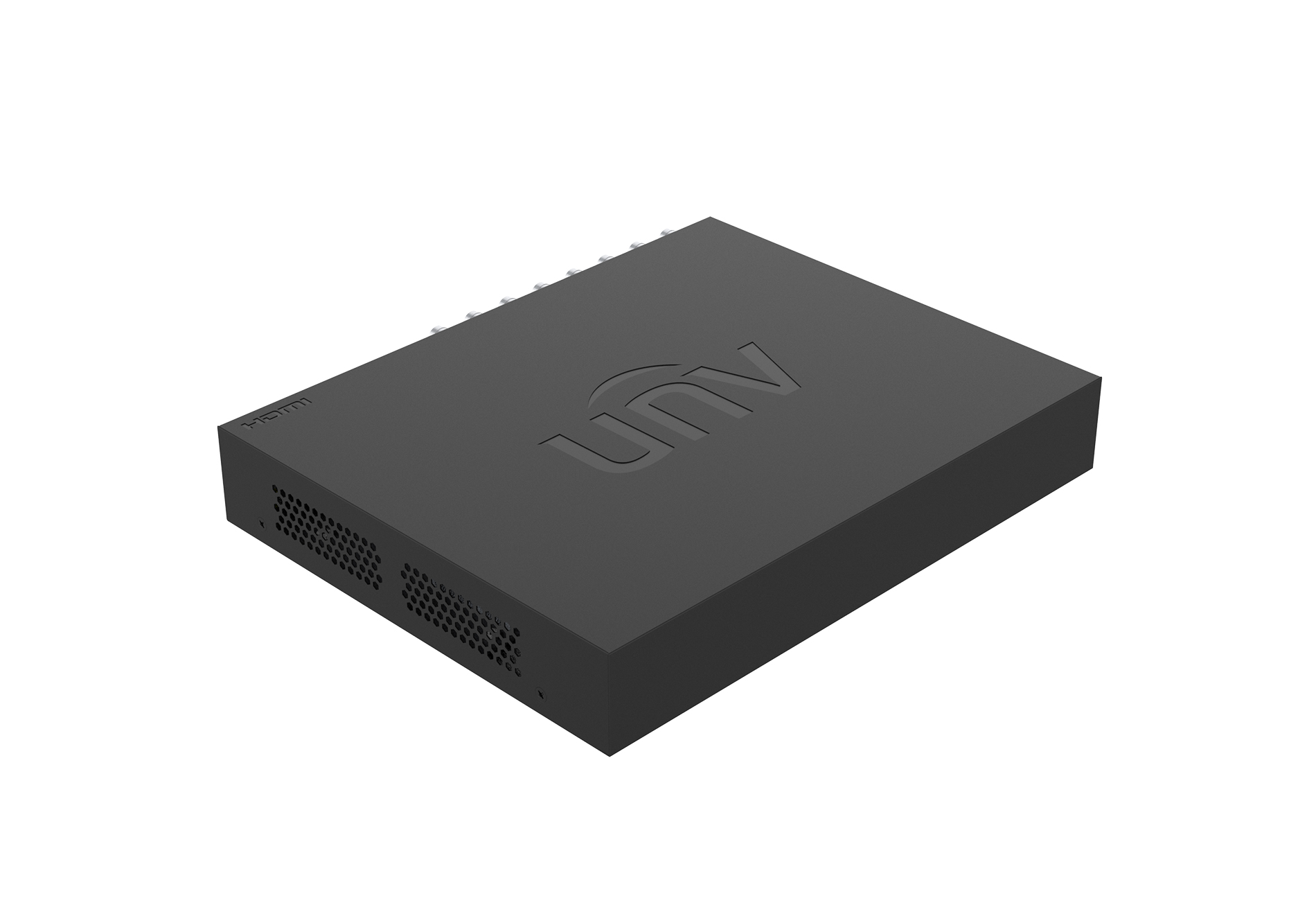

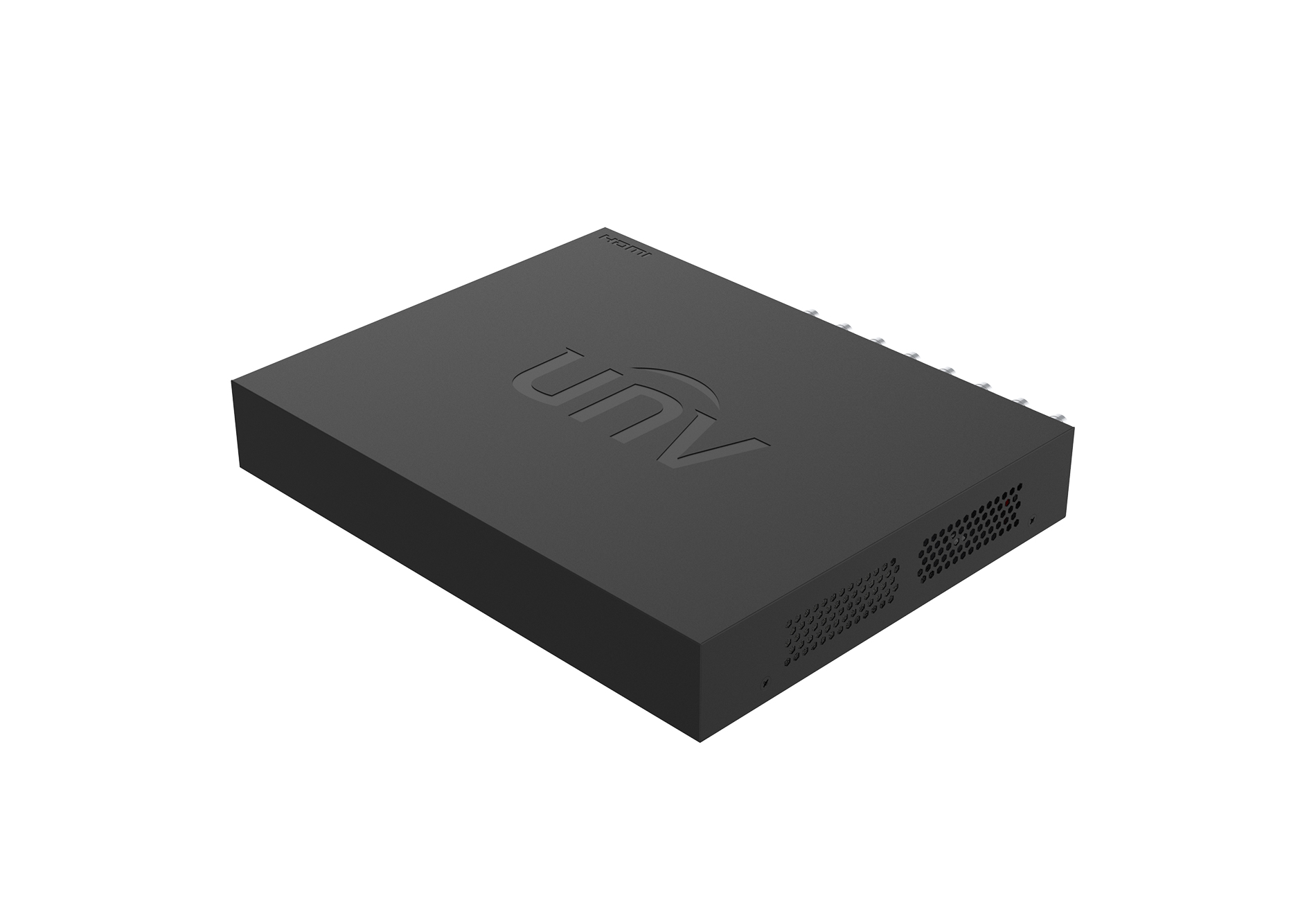

XVR301-16F

1 Hard Disk 16-Channel 1U Digital Video Recorder

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(only for TVI cameras)
  • Support analog camera upgrade over coaxial cable
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 16-channel BNC input
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
SKU: 0235C7G5 Categories: ,
Description

Model

XVR301-16F

Video/Audio Input

Analog Video Input

16-ch, BNC

IP Video Input

2-ch(only IP up to 18ch), each channel up to 8MP

Supported Analog Camera Types

Support AHD input:
1080P@30fps
720P@30fps
Support TVI input:
1080P@30fps
720P@30fps
Support CVI input:
1080P@30fps
720P@30fps
Support CVBS input

Audio Compression

G.711U

Video/Audio Output

VGA Output

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

HDMI Output

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Synchronous Playback

HD:16-ch
SD:16-ch

Live view display

HDMI/VGA: 1/4/6/8/9/16/25

Snapshot

FTP/Schedule/Event Snapshot

Schedule snapshot is not supported
16-ch snapshot, up to 704*576 resolution

Network

Incoming Bandwidth

24Mbps (Up to 56Mbps after all analog channel conversion)

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP

Browser

IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Encoding

Recording Resolution

1080P Lite/720P/D1

Recording
Frame Rate

Main stream

Sub stream

1080P Lite@12fps

D1@12fps

720P@15fps

D1@15fps

Audio Sample Rate

8KHz,16 bit per channel

Audio Bit Rate

64Kbps per channel

Decoding

Capability

Analog:16x 1080P Lite@12, 16x 720P@15
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30

Hard Disk

SATA

1 SATA interface

Capacity

Up to 6TB for each HDD

Smart Alarm

VCA Detection

Ultra Motion Detection(UMD) for analog:8-ch

VCA Search

Behavior Search

General Alarm

General Alarm

Motion detection

Alert Alarm

IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

General

Power Supply

12V DC
Power Consumption: ≤ 10 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

253mm × 212mm × 42mm (10.0″ × 8.4″ × 1.7″)

Weight ( without HDD )

≤0.85 Kg ( 1.87lb )

Certification

Certification

UL/CE/FCC /RoHS /WEEE
