Model |
XVR302-08U3 |
|
|
Video/Audio Input |
||
|
Analog Video Input |
8-ch, BNC |
|
|
IP Video Input |
8-ch (only IP up to 16ch), each channel up to 8MP |
|
|
Supported Analog Camera Types |
Support AHD input: |
|
|
Audio Input |
4-ch, RCA |
|
|
Audio Compression |
G.711U |
|
|
Video/Audio Output |
||
|
CVBS Output |
1-ch, BNC |
|
|
VGA Output |
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
|
HDMI Output |
4K(3840X2160)/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
16-ch |
|
|
Live view display |
HDMI/VGA: 1/4/6/8/9/16 |
|
|
Two-way Audio |
1-ch, RCA |
|
|
Snapshot |
||
|
FTP/Schedule/Event Snapshot |
16-ch snapshot, up to 704*576 resolution |
|
|
Network |
||
|
Incoming Bandwidth |
80 Mbps (Up to 96 Mbps after all analog channel conversion) |
|
|
Outgoing Bandwidth |
160 Mbps |
|
|
Remote Users |
128 |
|
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP |
|
|
Browser |
IE(IE10/11) for Windows |
|
|
Encoding |
||
|
Recording Resolution |
8MP/5MP/4MP/1080P/720P/D1 |
|
|
Recording Frame Rate |
Main stream |
Sub stream |
|
8MP@8fps |
D1@8fps |
|
|
5MP@12fps |
D1@12fps |
|
|
4MP@15fps |
D1@15fps |
|
|
1080P@25fps |
D1@25fps |
|
|
720P@30fps |
D1@30fps |
|
|
Audio Sample Rate |
8KHz,16 bit per channel |
|
|
Audio Bit Rate |
64Kbps per channel |
|
|
Decoding |
||
|
Capability |
Analog: 8 x 8MP @8, 8x 5MP @12, 8x 4MP @15, 8x 1080P@25, 8 x 720@30 |
|
|
Hard Disk |
||
|
SATA |
2 SATA interfaces |
|
|
Capacity |
Up to 8TB for each HDD |
|
|
Smart Alarm |
||
|
VCA Detection |
Ultra Motion Detection(UMD) for analog:8-ch |
|
|
VCA Search |
Face Snapshot Search, Behavior Search, People Counting Report |
|
|
General Alarm |
||
|
General Alarm |
Motion detection |
|
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
|
External Interface |
||
|
Network Interface |
1RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
|
|
USB Interface |
Rear panel：1 x USB3.0, Front panel：1xUSB2.0 |
|
|
Serial Interface |
1 x RS485 |
|
|
Alarm In |
8 |
|
|
Alarm Out |
4 |
|
|
General |
||
|
Power Supply |
12V DC |
|
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
|
Dimensions(W×D×H) |
380mm ×326mm× 53mm (15″ × 12.8″×2.1″) |
|
|
Weight ( without HDD ) |
≤2.0 Kg (4.4lb) |
|
|
Certification |
||
|
Certification |
UL /CE /FCC /RoHS /WEEE |
|

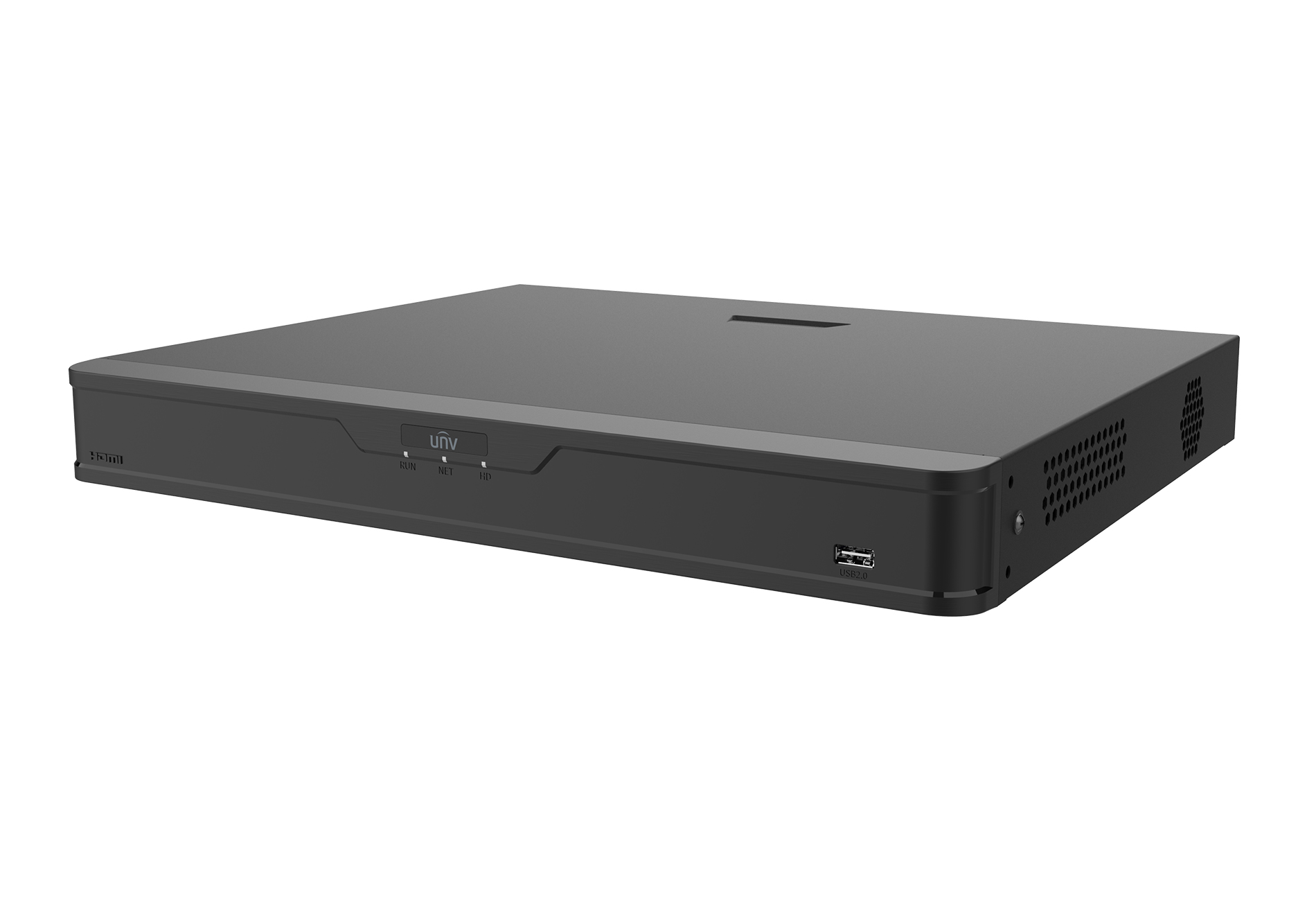

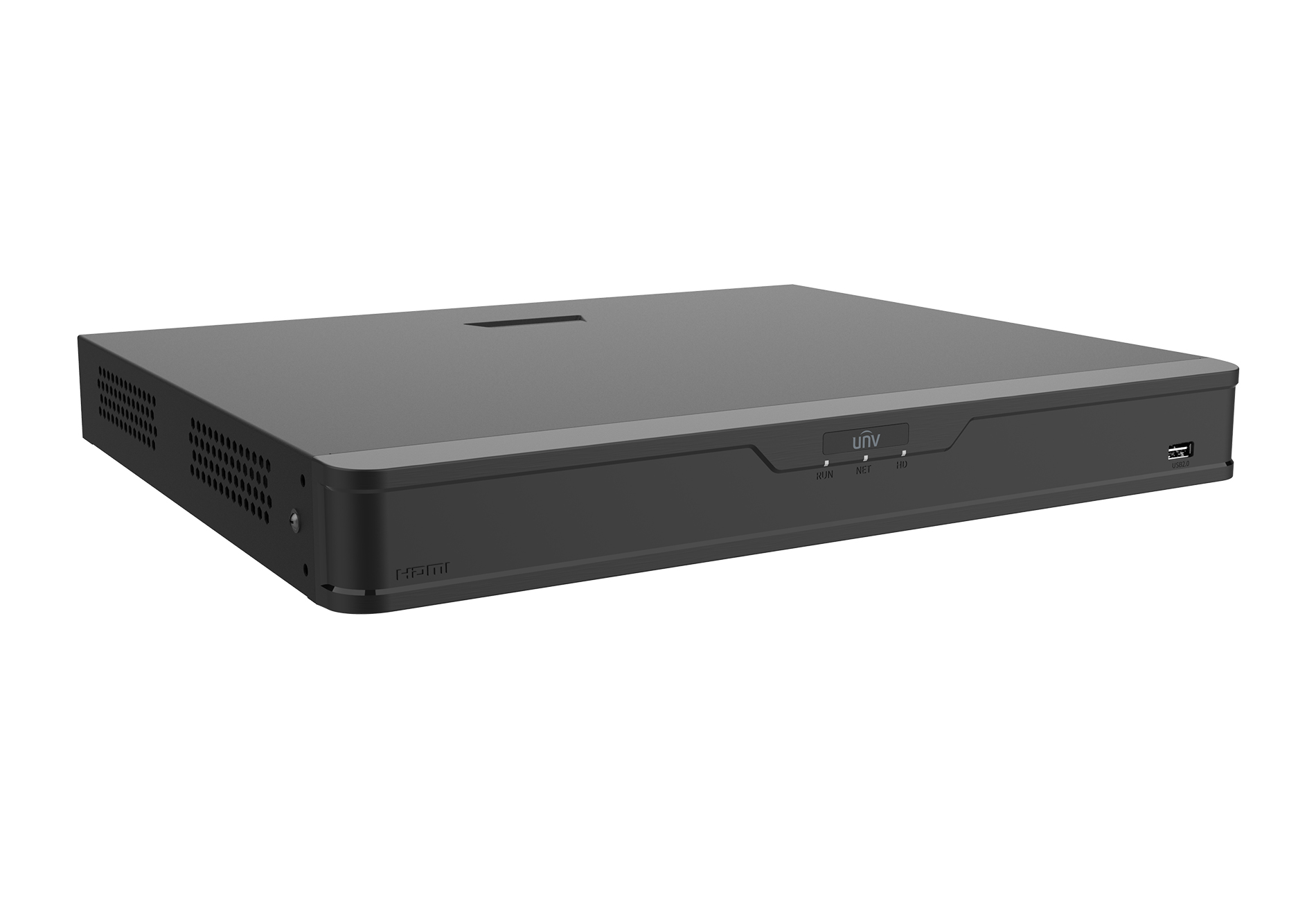

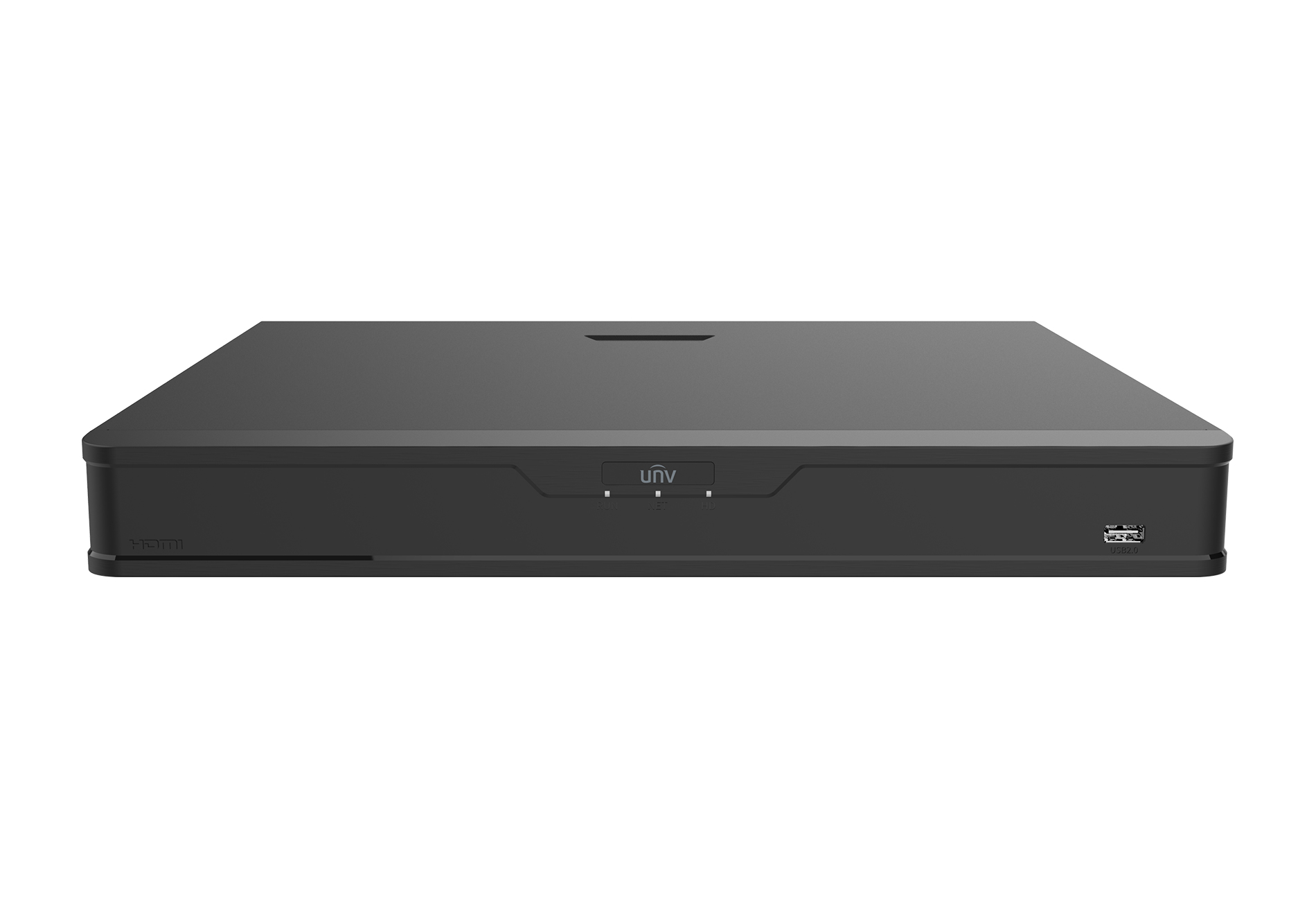

XVR302-08U3
2 Hard Disks 8-Channel Digital Video Recorder
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 8-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Description
