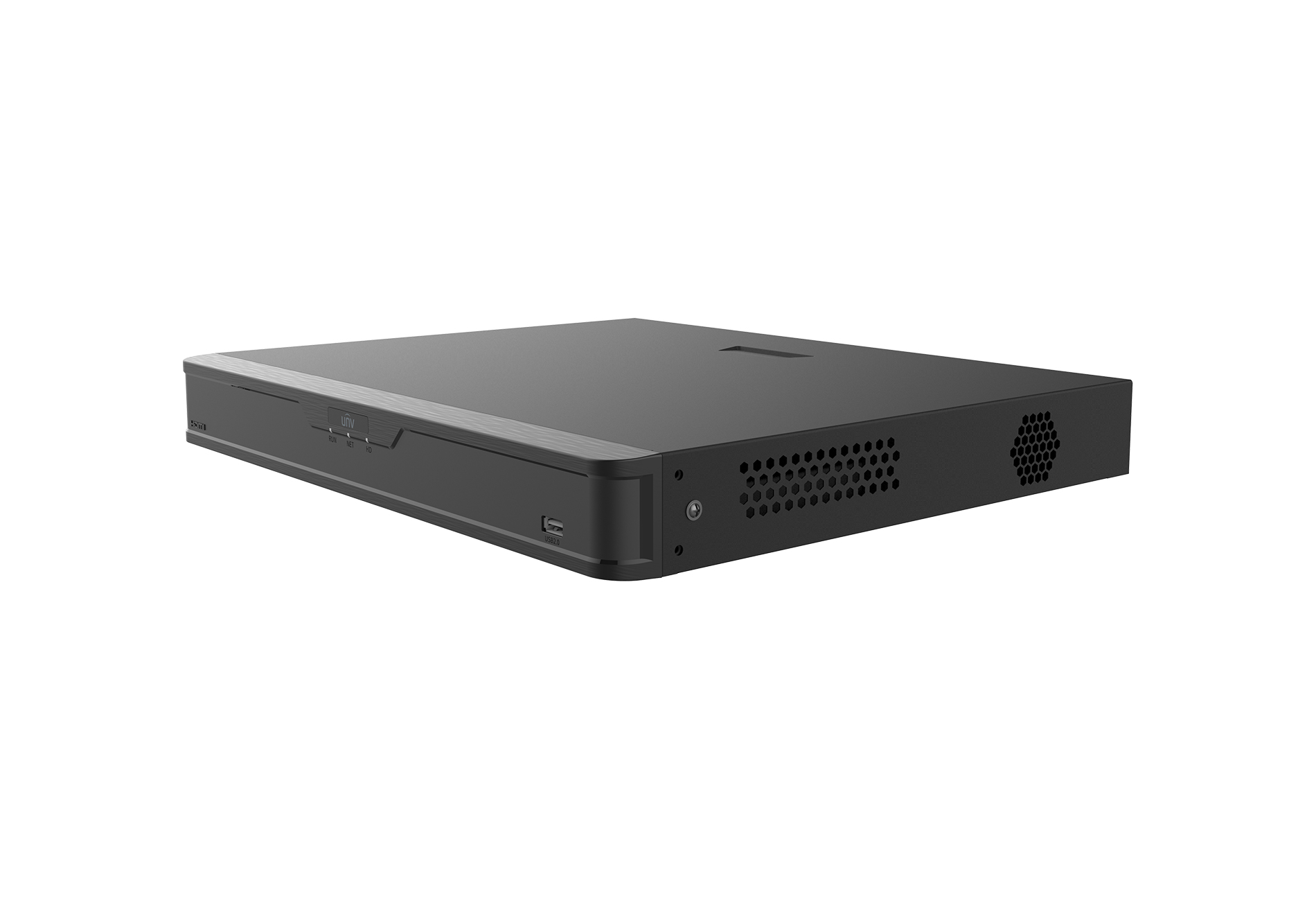

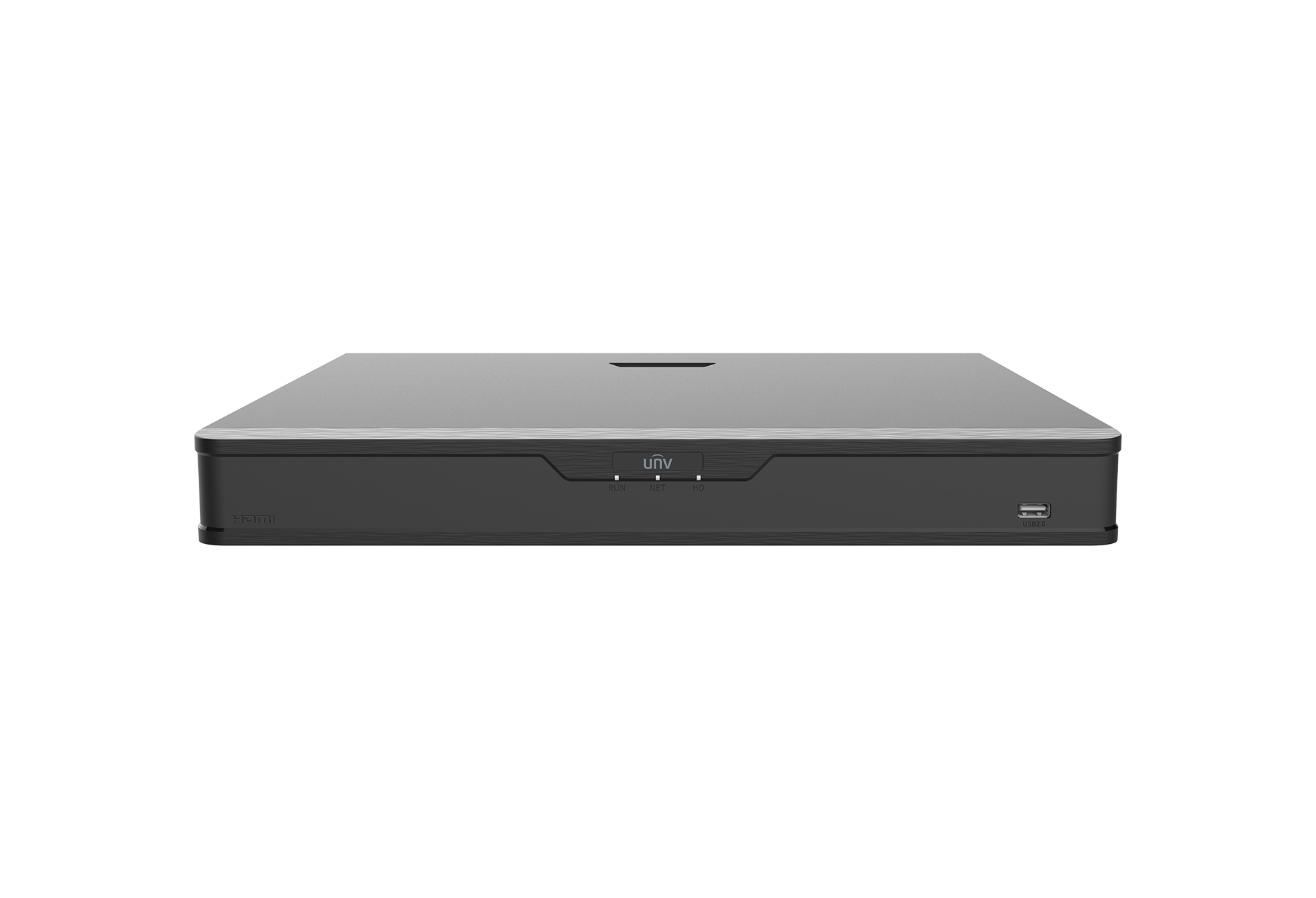

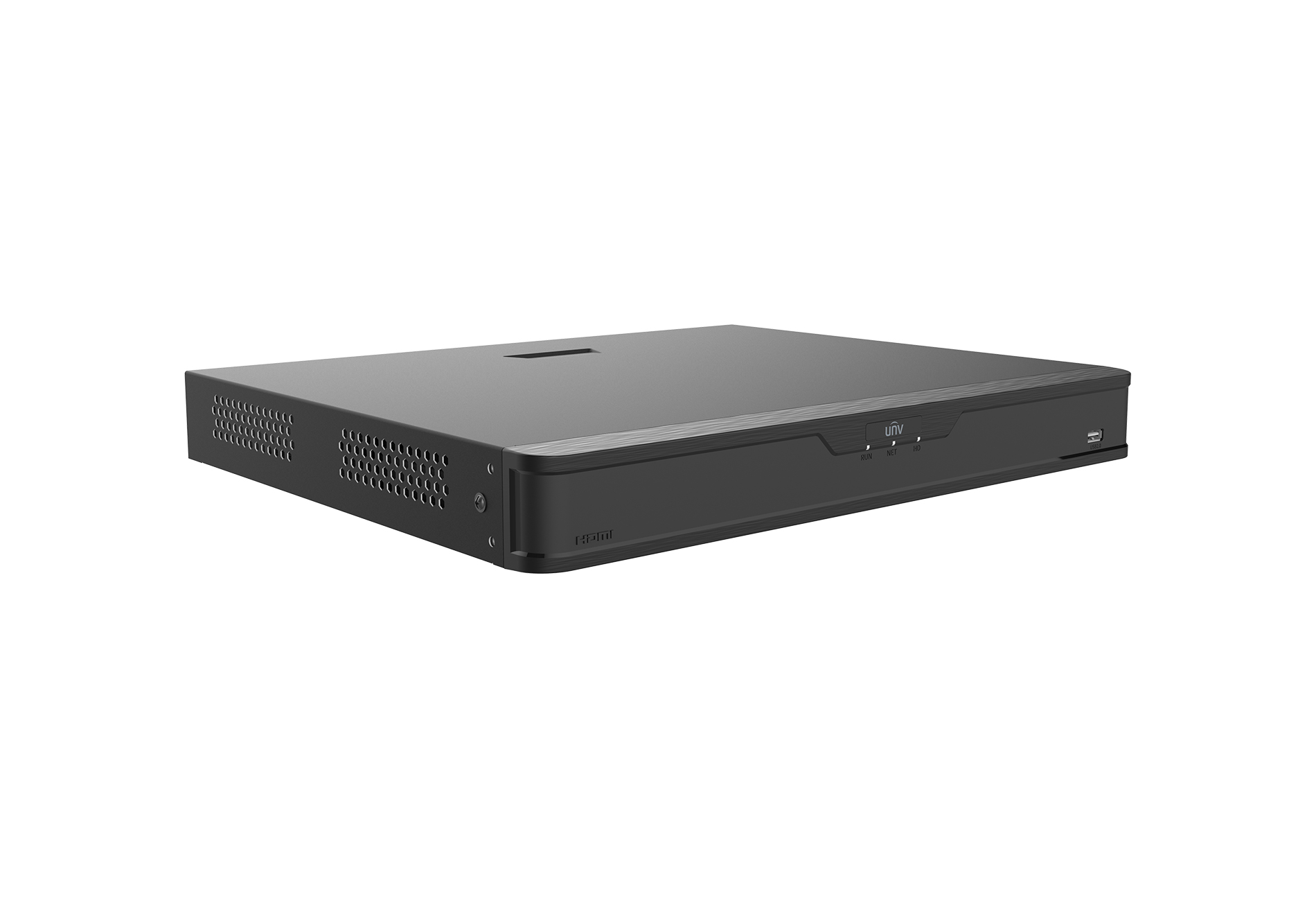

XVR302-32Q3

2 Hard Disks 32-Channel Digital Video Recorder

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(only for Uniview CVI protocol cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 32-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
SKU: 0235C7NQ Categories: ,
Description

Model

XVR302-32Q3

Video/Audio Input

Analog Video Input

32-ch, BNC

IP Video Input

4-ch(only IP up to 36ch), each channel up to 8MP

Supported Analog Camera Types

Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input

Audio Input

1-ch, RCA

Audio Compression

G.711U

Video/Audio Output

CVBS Output

1-ch, BNC

VGA Output

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

HDMI Output

4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Audio Output

1-ch, RCA

Synchronous Playback

16

Live view display

HDMI/VGA: 1/4/6/8/9/16/25/36

Two-way Audio

1-ch, RCA

Snapshot

FTP/Schedule/Event Snapshot

32-ch snapshot, up to 704*576 resolution

Network

Incoming Bandwidth

80Mbps (Up to 144Mbps after all analog channel conversion)

Outgoing Bandwidth

160Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP

Browser

IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Encoding

Recording Resolution

8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1

Recording Frame Rate

Main stream

Sub stream

8MP Lite@8fps

D1@8fps

5MP Lite@12fps

D1@12fps

4MP Lite@15fps

D1@15fps

1080P@15fps

D1@15fps

720P@30fps

D1@30fps

Audio Sample Rate

8KHz,16 bit per channel

Audio Bit Rate

64Kbps per channel

Decoding

Capability

Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30
IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30

Hard Disk

SATA

2 SATA interfaces

Capacity

Up to 8TB for each HDD
(The maximum HDD capacity varies with environment temperature)

Smart Alarm

VCA Detection

Ultra Motion Detection(UMD) for analog:16-ch

VCA Search

Face Snapshot Search, Behavior Search, People Counting Report

General Alarm

General Alarm

Motion Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

Network Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0

Serial Interface

1 x RS485

Alarm In

4

Alarm Out

1

General

Power Supply

12V DC
Power Consumption: ≤ 38 W( without HDD )

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions(W×D×H)

380mm ×326mm× 53mm (15.0″ × 12.8″×2.1″)

Weight ( without HDD )

≤2.6 Kg ( 5.72lb )

Certification

Certification

UL /CE /FCC /RoHS /WEEE
